10.1. WasherAxle
2. 11.Right bearing spacer Hubcap (not on FXDWG and FXD)
12.3. Axle nutScrew (5)
4. 13.Screw (5) Valve stem nut
14.5. Valve capBearing (2)
6. 15.Sleeve Spoke and nipple kit
16.7. Balance weightWheel hub
8. 17.Brake disc Rim
18.9. Laced wheel assemblyLeft bearing spacer

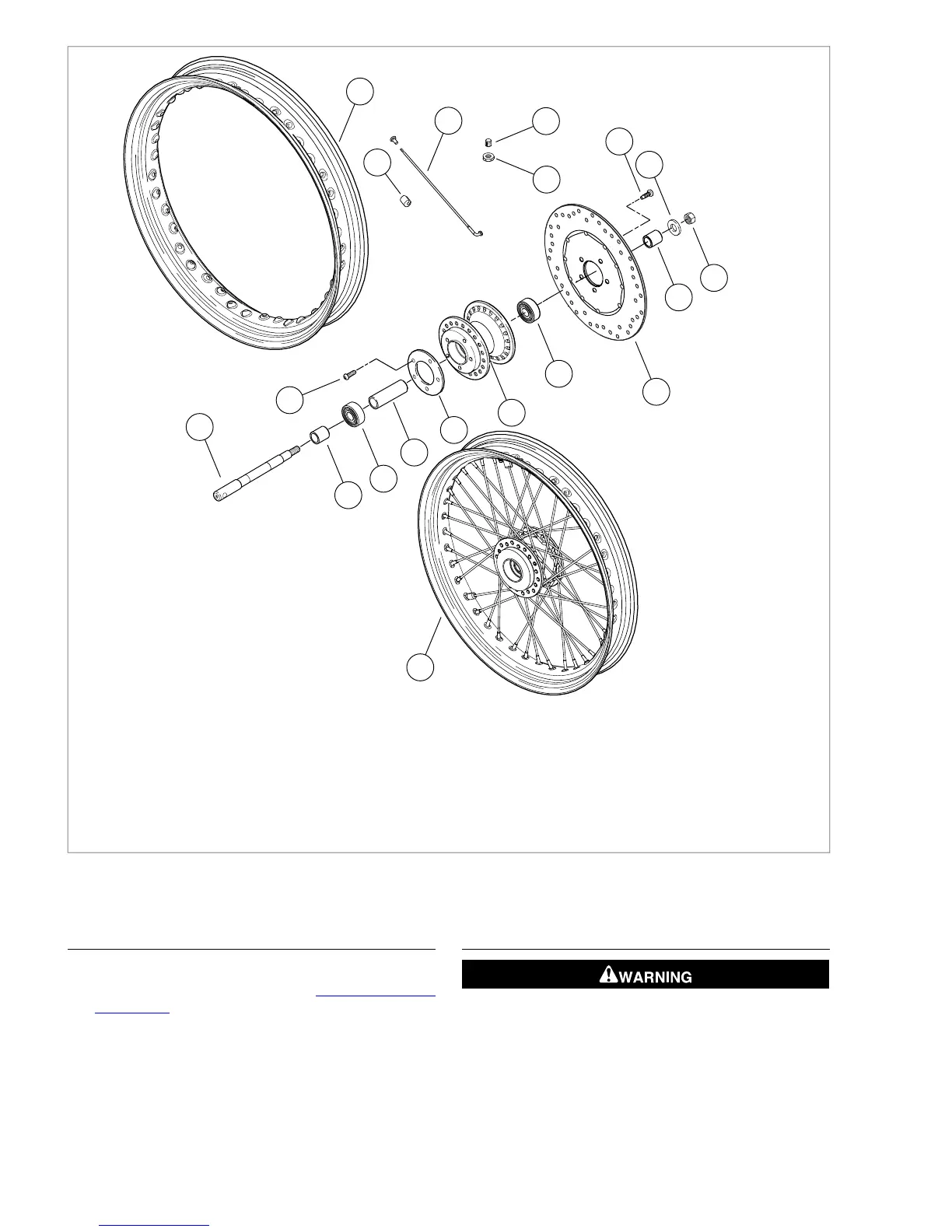

Figure 2-7. Laced Front Wheel
CLEANING AND INSPECTION
1. Inspect all parts for damage or excessive wear.
2. Inspect brake rotor and pads. See 1.16 BRAKE PADS
AND DISCS.
ASSEMBLY
Be sure that brake fluid or other lubricants do not contact
brake pads or discs. Such contact can adversely affect
braking ability, which could cause loss of control, resulting
in death or serious injury. (00290a)
2-8 2008 Dyna Service: Chassis
