9.1. Rear sprocketAxle
2. 10.Right bearing spacer Left bearing spacer
11.3. WasherScrew (5)
4. 12.Rear brake disc Axle nut
13.5. Retaining ringBearing (2)
6. 14.Sleeve Screw (5)
15.7. Washer (5)Cast wheel
8. Laced wheel hub and rim

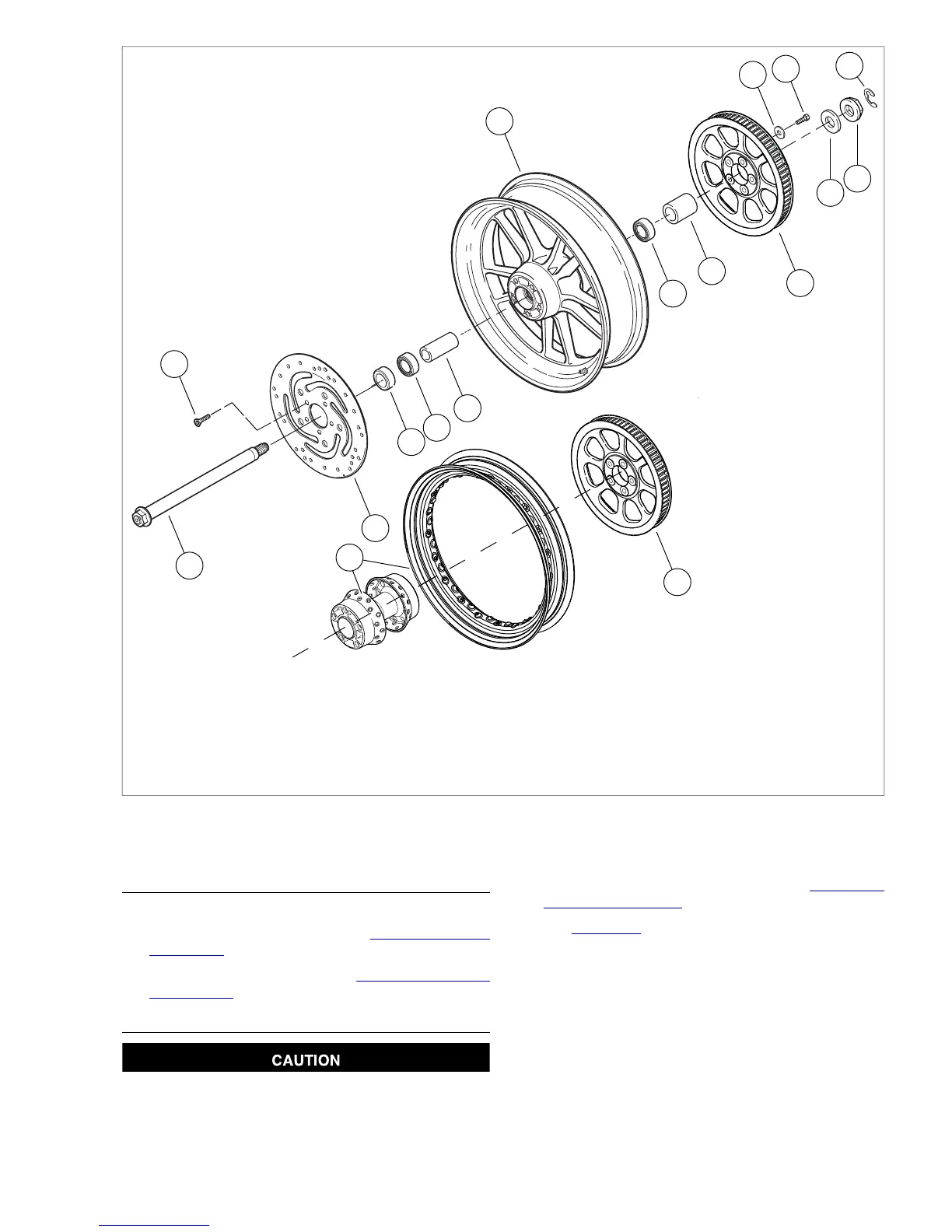

Figure 2-12. Rear Wheel/Hub
CLEANING AND INSPECTION
1. Inspect all parts for damage or excessive wear.
2. Inspect brake rotor and pads. See 1.16 BRAKE PADS
AND DISCS.
3. Inspect rear belt and sprocket. See 1.12 REAR BELT AND
SPROCKETS.
ASSEMBLY
Do not re-use sprocket mounting screws. Re-using
sprocket mounting screws can result in torque loss and
damage to the sprocket and/or belt assembly. (00480b)
1. If hub and rim were disassembled, see 2.6 WHEEL
LACING: 17 INCH RIM.
2. See Figure 2-12. Using new screws (3), install brake disc
(4) on valve stem side of wheel if removed.
3. Tighten screws to 30-45 ft-lbs (40.7-61.0 Nm).
4. Using new screws (14), install belt sprocket (9) if removed.
5. Tighten screws to 55-65 ft-lbs (74.6-88.1 Nm).
6. Install spacers (2, 10) into hub with largest chamfered end
facing away from wheel.
2008 Dyna Service: Chassis 2-11
