1. Forcing screw
2. Nut

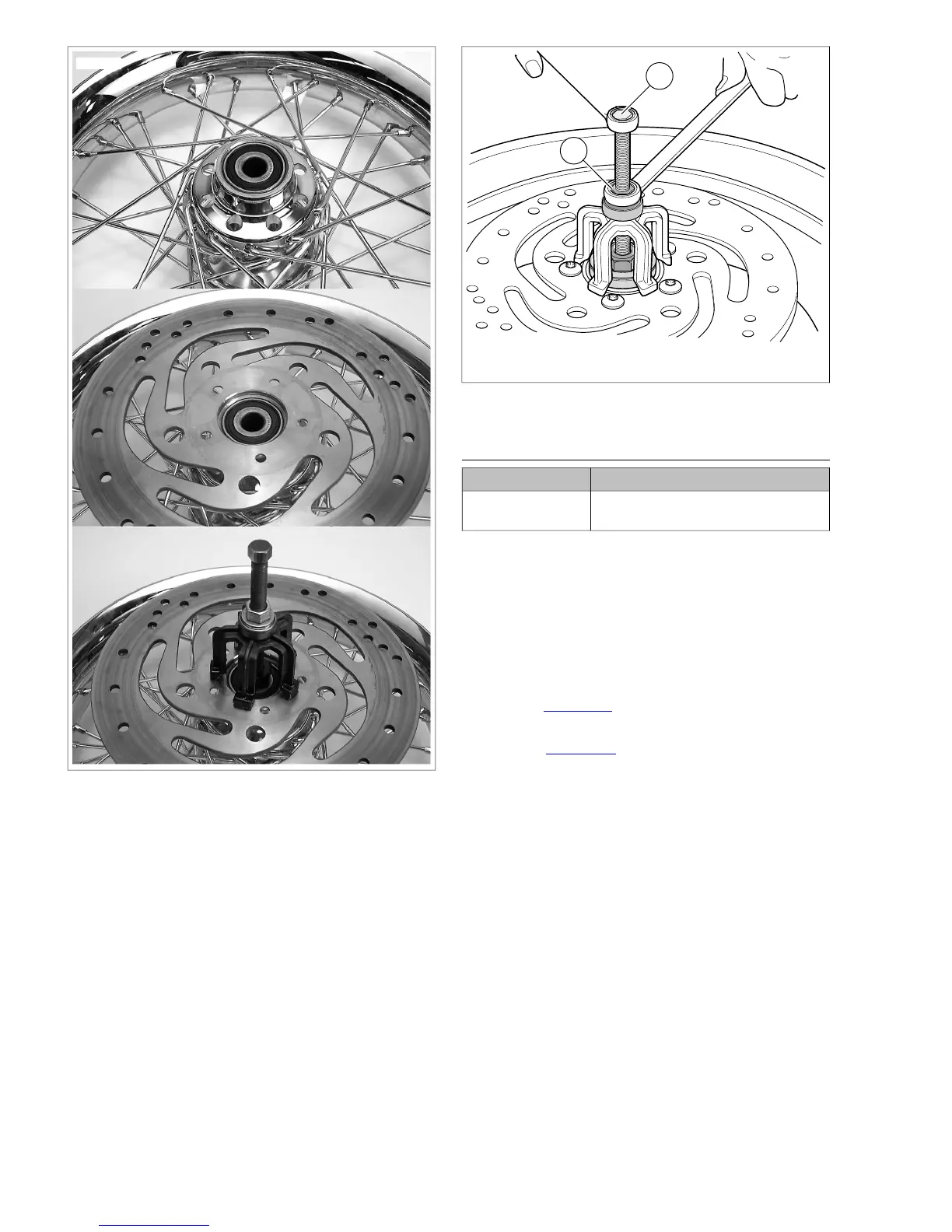

Figure 2-16. Remove Bearing
INSTALLATION
TOOL NAMEPART NUMBER
WHEEL BEARING
INSTALLER/REMOVER
HD-44060
NOTE
Always install first bearing on primary brake disc side. If front
wheel has two brake discs, install bearing on the left side first.
1. Obtain WHEEL BEARING INSTALLER/REMOVER (Part
No. HD-44060) and assemble.
a. Sparingly apply graphite lubricant to threads of
threaded rod to prolong service life and ensure
smooth operation.
b. See Figure 2-17. Place threaded rod through support
plate. Insert assembly through wheel.
c. See Figure 2-18. Place the new bearing (6) on rod
(1) with lettered side facing away from wheel center-
line.
d. Install pilot (5), Nice bearing (4), washer (3) and nut
(2) over rod.
2. Hold hex end of threaded rod (1) and turn nut (2) to install
bearing (6). Bearing will be fully seated when nut can no
longer be turned. Remove tool.
3. Install spacer inside wheel hub.
4. Reverse tool and install opposite side bearing.
2-14 2008 Dyna Service: Chassis
