sm02237

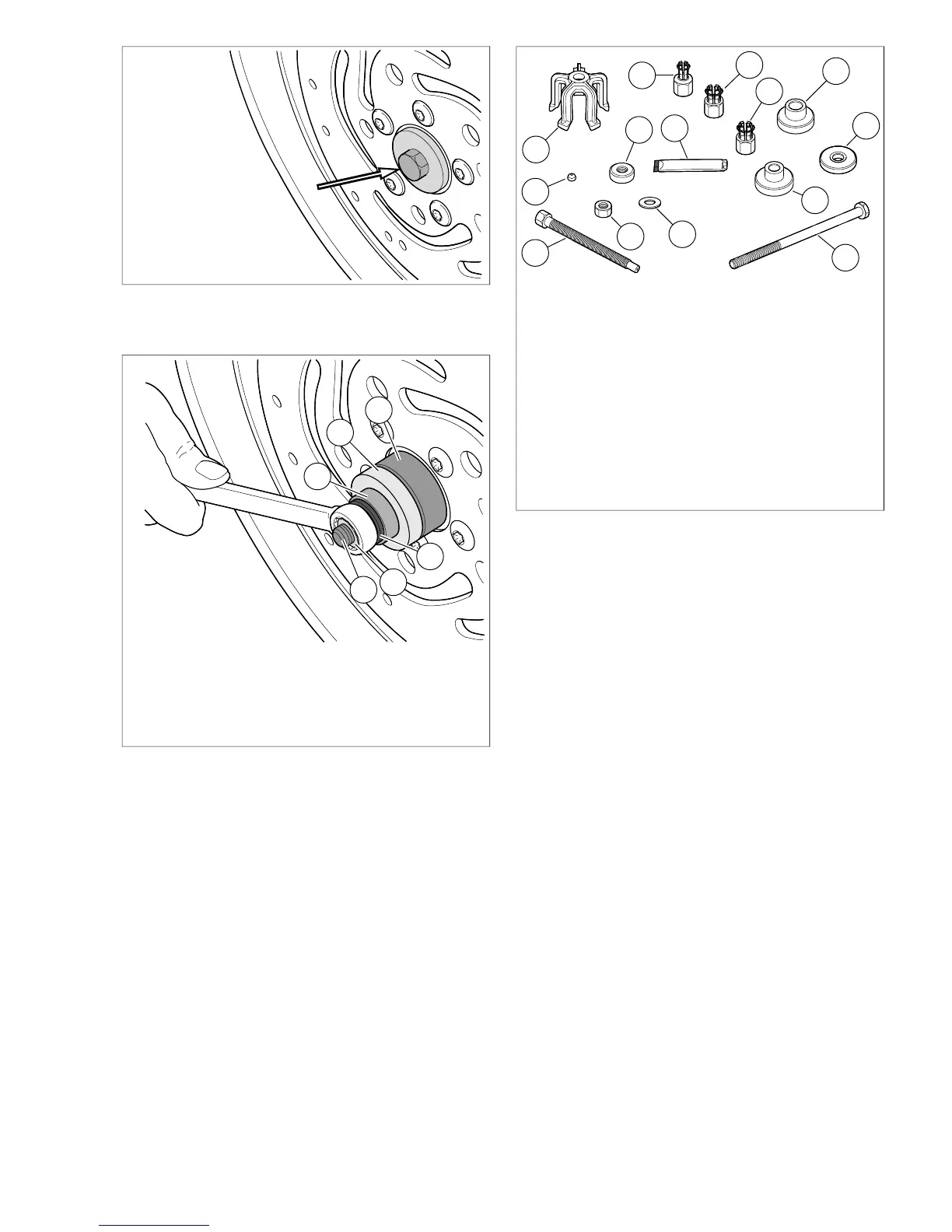

Figure 2-17. Installation Tool Support Plate
2
6
4
1
3
5
sm02238
1. Threaded rod
2. Nut
3. Washer
4. Nice bearing
5. Pilot
6. Wheel bearing
Figure 2-18. Installing Bearing
3
1
5
14
11
6
7
2
13
9
10
8
12
4
sm02239
1. Bridge, Part No. HD-44060-5
2. Steel ball, Part No. 12547
3. Forcing screw, Part No. HD-44060-4
4. Nut, Part No. 10210
5. Washer, Part No. 12004
6. Nice bearing, Part No. 217801
7. Lubricant, Part No. J-23444A
8. Collet, 3/4 in., Part No. HD-44060-3A
9. Collet, 1.0 in., Part No. HD-44060-7
10. Collet, 25 mm, Part No. HD-44060-10
11. Pilot, 1.0 in., Part No. HD-44060-8
12. Support plate, Part No. HD-44060-1
13. Pilot, 3/4 in., Part No. HD-44060-6
14. Threaded rod, Part No. 280856
Figure 2-19.Wheel Bearing Installer/Remover Components
NOTES
• Parts 1-7 are common to removal and installation.
• Parts 8-9 are used for removal only.
• Parts 10-13 are used for installation only.
2008 Dyna Service: Chassis 2-15
