Harley-Davidson Dyna 2008 - Page 91

sm02247

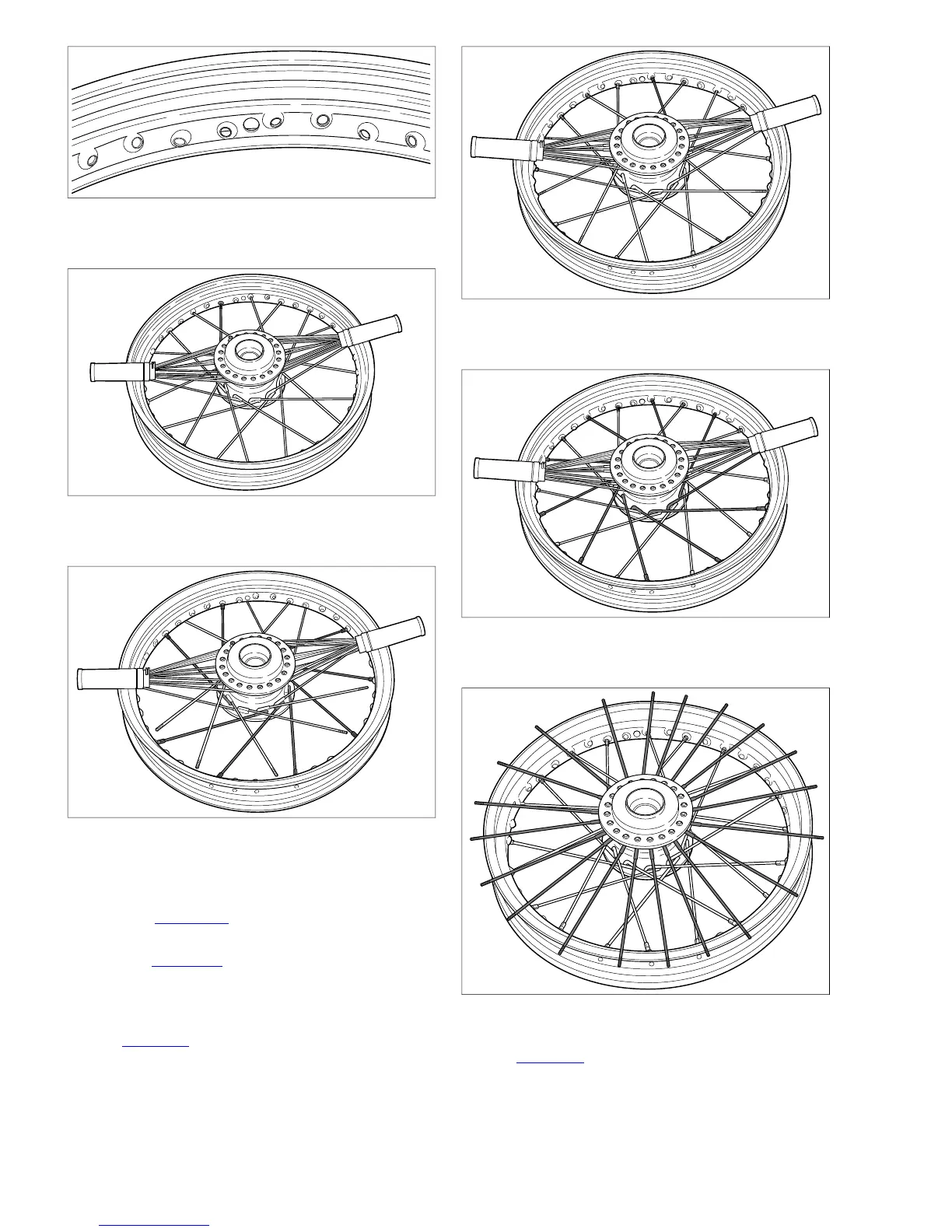

Figure 2-32.Valve Stem Hole Location
sm02248
Figure 2-33. Beginning Spoke: Bottom Flange Outer
sm02249
Figure 2-34. Completed Spokes: Bottom Flange Outer
14. Work with bottom flange inner spokes (long head) next.
Choose a beginning spoke closest to the valve stem hole.
a. See Figure 2-35. Each inner spoke (long head)
crosses four outer spokes (short head).
b. See Figure 2-36. Verify inner spoke reaches spoke
nipple and secure spoke loosely by hand. Skip every
other hole and repeat lacing. Follow pattern to com-
plete bottom row inner spokes (long head).
15. See Figure 2-37. Undo each top bundle and fan the spokes
out (in a starburst pattern) around the top rim edge.
sm02250
Figure 2-35. Beginning Spoke: Bottom Flange Inner
sm02251
Figure 2-36. Completed Spokes: Bottom Flange Inner
sm02252
Figure 2-37. Fanning Top Flange Spokes
16. See Figure 2-38. Point all the top flange inner spokes (long
head) clockwise one at a time leaving the outer spokes
(short head) resting on the rim.
2-20 2008 Dyna Service: Chassis
