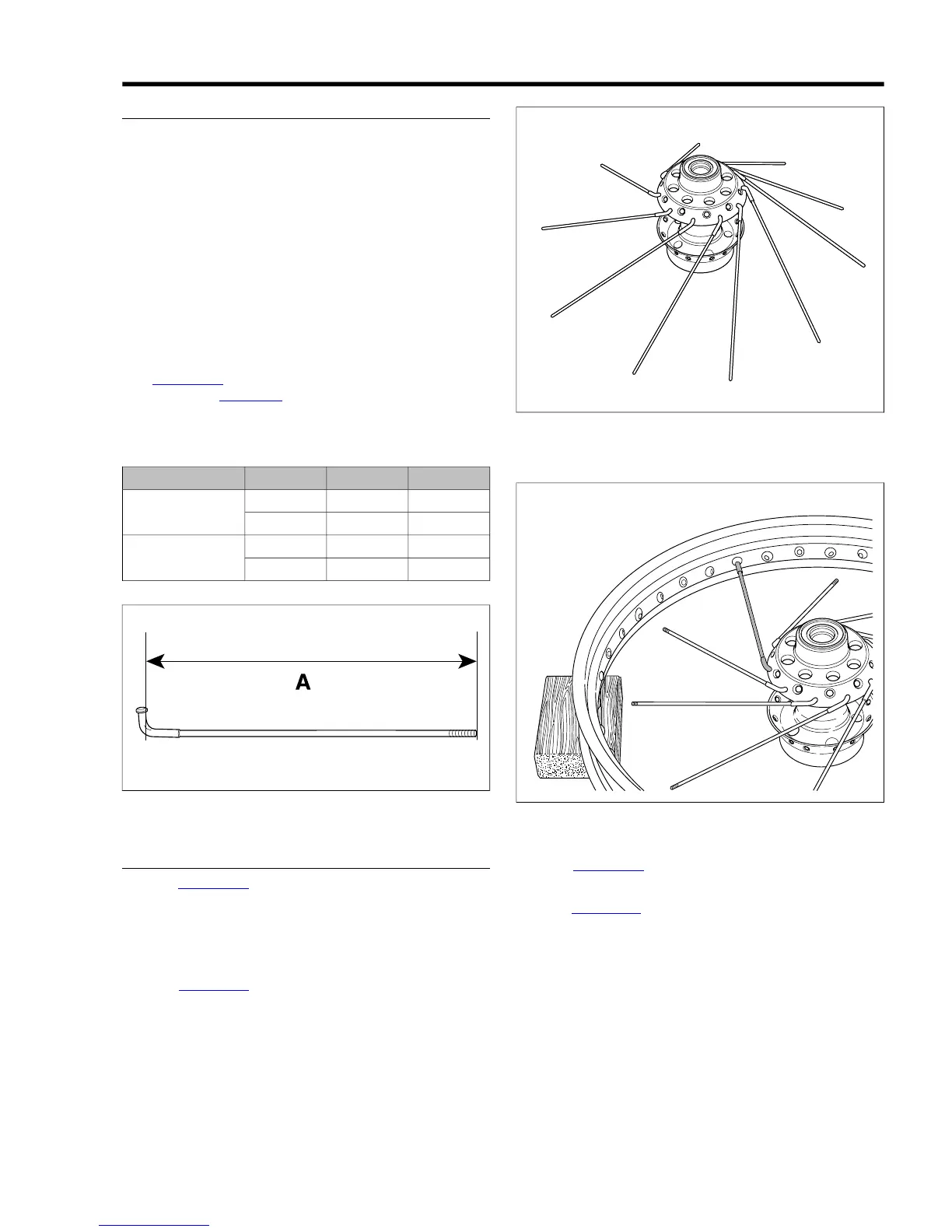

2.8WHEEL LACING: 21 INCH RIM
GENERAL
If only rim is to be replaced, tape spokes together to hold pos-
ition on hub and remove spokes from rim. Install taped
hub/spoke assembly to new rim and tighten spokes. Then
remove tape and true wheels.
NOTES
• Do not install incorrect spokes or spoke nipples on rim.
Steel laced rims use zinc plated spokes and spoke nipples.
Chrome aluminum profile laced rims use chrome plated
spokes and spoke nipples. Using incorrect spokes can
result in improper thread engagement which could result
in damage to rim, tubes or tire.
• Steel laced rims use zinc plated spokes. Chrome aluminum
profile laced rims use chrome plated spokes.
See Figure 2-43. Measure distance "A" to determine spoke
length. Refer to Table 2-12 to determine correct spoke length
for type of rim used.
Table 2-12. 21 Inch Rim Spoke Length
MMIN.SPOKERIM
237.7-238.89.36-9.40Long headSteel laced
238.8-239.89.04-9.44Short head
240.8-241.89.48-9.52Long headChrome aluminum
profile laced
240.8-241.89.48-9.52Short head
Figure 2-43. Measuring Spoke Length
PROCEDURE
1. See Figure 2-44. Place the hub on table with brake disc
side (wide flange) down. Insert a spoke in each hole of
the lower row. Angle spokes clockwise.
2. Center the rim over the hub assembly with the valve stem
hole facing upward.
3. See Figure 2-45. Using any lower row spoke, place the
first spoke into the rim hole, angled to correctly accept the
spoke, on the upper half of the rim centerline.
Figure 2-45. Lower Row into Rim
4. See Figure 2-46. Install the rest of lower row spokes in
every fourth hole.
5. See Figure 2-47. Place the first upper row spoke into the
hub as shown below. Angle the spoke counterclockwise
crossing four lower row spokes.The spoke must enter the
hole to the right of the valve stem hole.
2008 Dyna Service: Chassis 2-23
