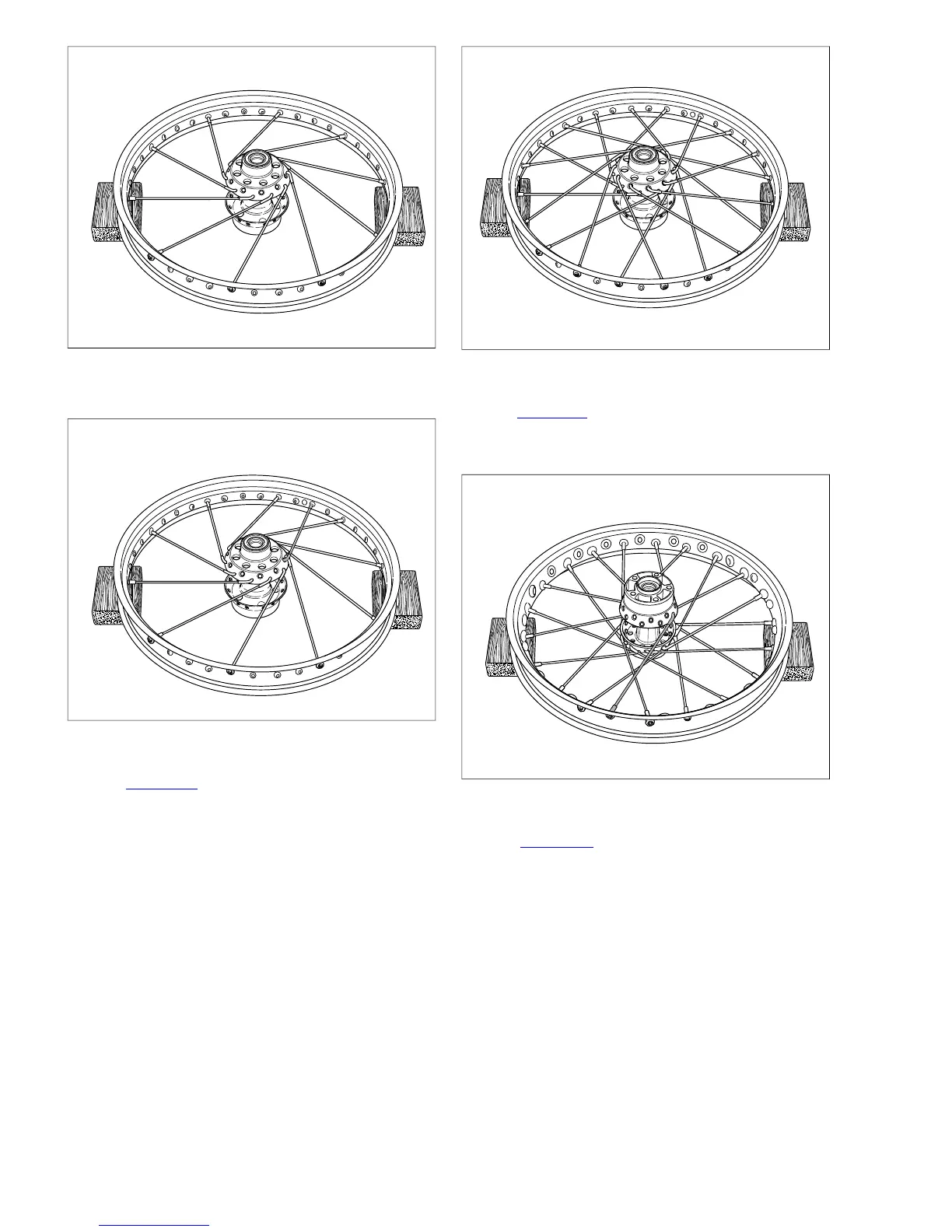

Figure 2-46. Lower Row Spokes Spaced to Every 4th Hole
Figure 2-47. Spokes into Hub Upper Row
6. See Figure 2-48. Install the remaining nine upper row
spokes into every fourth remaining hole above the rim
centerline.This completes spoke installation on this side.
Figure 2-48. Upper Row Spokes Completed
7. See Figure 2-49. Turn rim over, brake disc side up. Place
any lower row spoke into hub. Angle spoke clockwise and
place into rim hole angled to accept it.
Figure 2-49. Install Lower Spokes into Hub
8. See Figure 2-50. Place the remaining nine lower row
spokes, angled clockwise, into hub and rim.
2-24 2008 Dyna Service: Chassis
