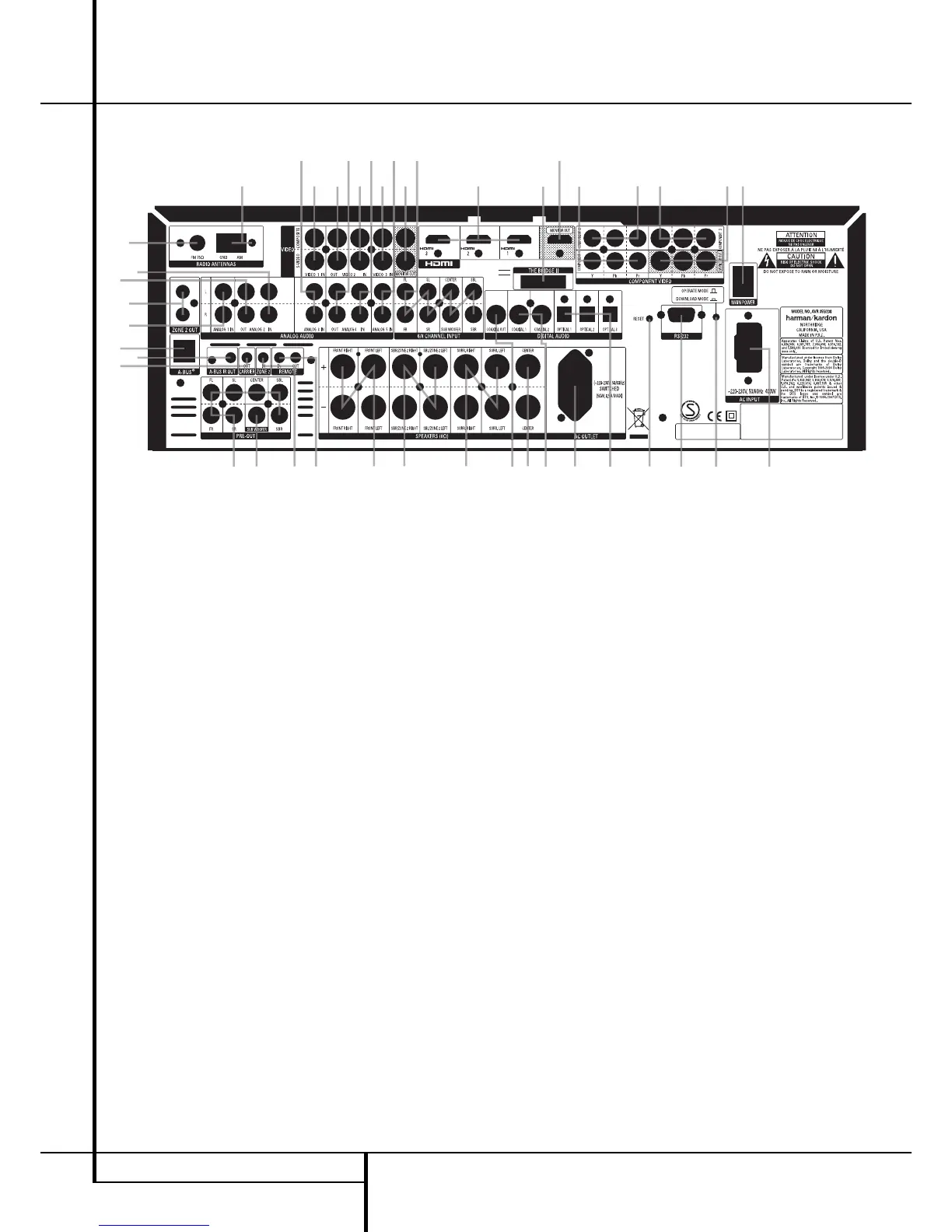

AM Antenna
FM Antenna
Analog 2 Audio IN
Analog 2 Audio OUT
Subwoofer Output
Analog 5 Audio IN
Analog 1 Audio IN
Analog 4 Audio OUT
Bridge II Connector
(Stereo Jack IN AVR 255)
8-Channel Direct Inputs
Digital Audio Outputs
Video Monitor Outputs
Reset Button
Front Speaker Outputs
Center Speaker Outputs
Surround Speaker Outputs
Switched AC Accessory Outlet
RS-232 Serial Port
AC Power Cord
Video 2 Component Video Inputs
Component Video Outputs
Video 1 Component Video Inputs
Download Mode Button
Coaxial Digital Inputs
Surround Back/Multiroom Speaker Outputs
Video 2 Video Outputs
Video 1 Video Inputs
Optical Digital Inputs
Analog 4 Audio IN
Video 2 Video Inputs
Remote IR Output and Input
Zone 2 IN
Preamp Outputs
HDMI Output
Video 3 Video Inputs
Analog Audio 3 IN
HDMI Inputs
Zone 2 OUT (AVR 355 only)
A-BUS Connector (AVR 355 only)
Remote IR Carrier Out (AVR 355 only)
Video 3 Component Video Inputs
(AVR 355 only)
A-BUS IR Out (AVR 355 only)
Main Power Switch
NOTE: To assist in making the correct connec-
tions for multichannel input/output and speaker
connections, all connection jacks and terminals
have been color coded in conformance with the
latest CEA standards as follows:
Front Left: White
Front Right: Red
Center: Green
Surround Left: Blue
Surround Right: Gray
Surround Back Left: Brown
Surround Back Right: Tan
Subwoofer (LFE): Purple
Digital Audio: Orange
Composite Video: Yellow
Component Video “Y”: Green
Component Video “Pr”: Red
Component Video “Pb”: Blue
AM Antenna: Connect the AM loop antenna
supplied with the receiver to these terminals. If an
external AM antenna is used, make connections to
the AM and GND terminals in accordance with
the instructions supplied with the antenna.
FM Antenna: Connect the supplied indoor or
an optional external FM antenna to this terminal.
Analog 2 IN: Connect these jacks to the
PLAY/OUT audio jacks on any audio or video
source.
Analog 2 OUT: Connect these jacks to the
REC/IN audio jacks on any audio or video source.
Subwoofer Output: Connect this jack to
the line-level input of a powered subwoofer. If an
external subwoofer amplifier is used, connect this
jack to the subwoofer amplifier input.
Analog 5 IN: Connect these jacks to the
PLAY/OUT audio jacks on any audio or video
source.
Analog 1 IN: Connect these jacks to the
PLAY/OUT audio jacks on any audio or video
source.
Analog 4 OUT: Connect these jacks to the
REC/IN audio jacks on any audio or video source.
8 REAR PANEL CONNECTIONS
