harman/kardon" AVR 330 QUICK-START GUIDE
Power for the Digital Revolution:
I
SUBWOOFER FRONTRIGHT
SPEAKER
FRONTLEFT SURROUNDBACK
SPEAKER RIGHTSPEAKER
SURROUNDBACK SURROUND SURROUND
LEFTSPEAKER RIGHTSPEAKER LEFTSPEAKER
CENTERSPEAKER

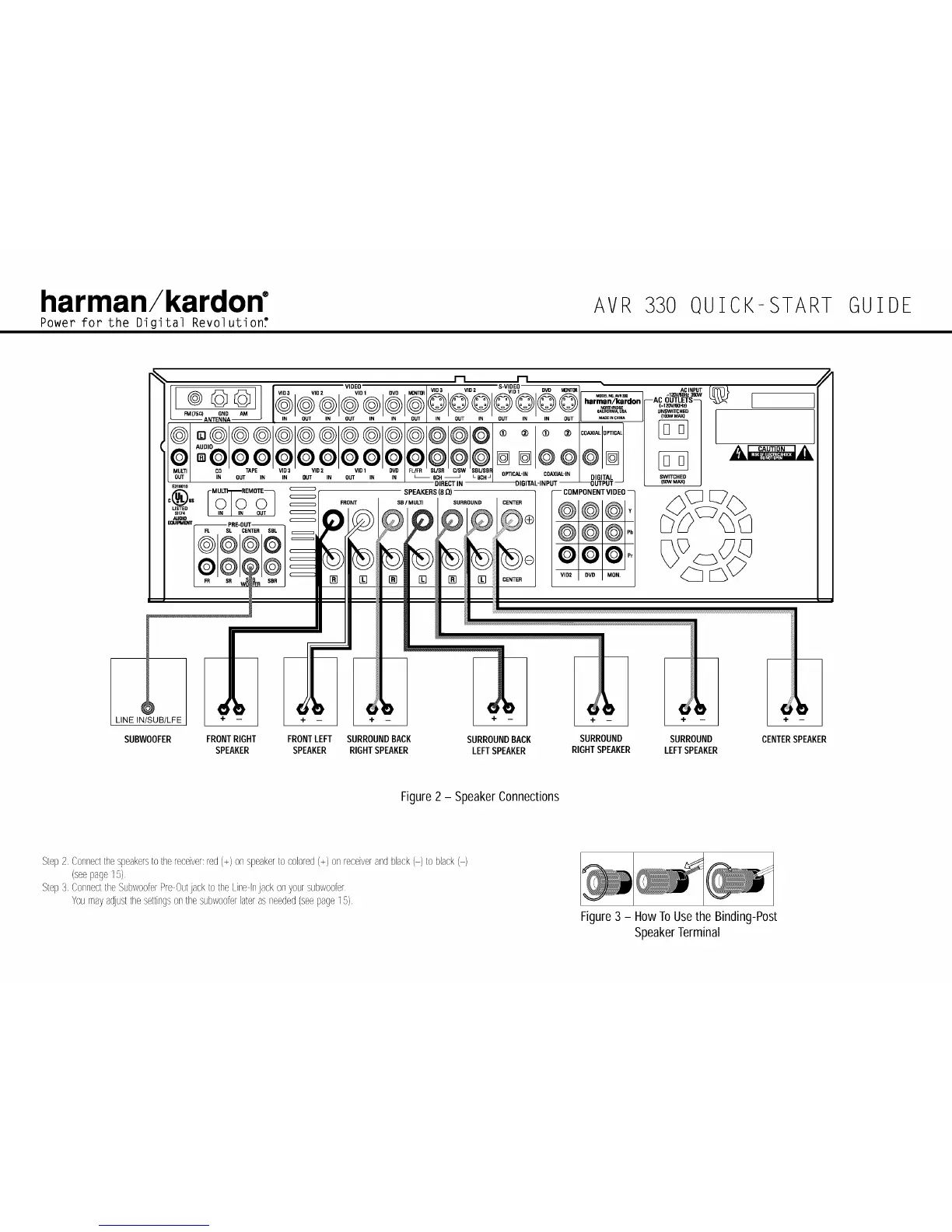

Figure 2 - Speaker Connections
Step2 Connectthespeakersto thereceiver:red(+) onspeakerto colored(+) onreceiverandblack(-) to black(-)
(seepage15)
Step3 ConnecttheSubwooferPreOutjack totheLineinjackonyoursubwoofer
Youmayadjustthesettingson thesubwooferlaterasneeded(seepage15)
Figure 3 - How ToUsethe Binding-Post
Speaker Terminal
