1
IDT74FCT38072
3.3V CMOS 1-TO-2 CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
IDT74FCT38072
INDUSTRIAL TEMPERATURE RANGE
3.3V CMOS
1-TO-2 CLOCK DRIVER
DESCRIPTION:
The FCT38072 is a 3.3V clock driver built using advanced CMOS
technology. This low skew clock driver offers 1:2 fanout. The large fanout from
a single input reduces loading on the preceding driver and provides an efficient
clock distribution network. Multiple power and grounds reduce noise. Typical
applications are clock and signal distribution.

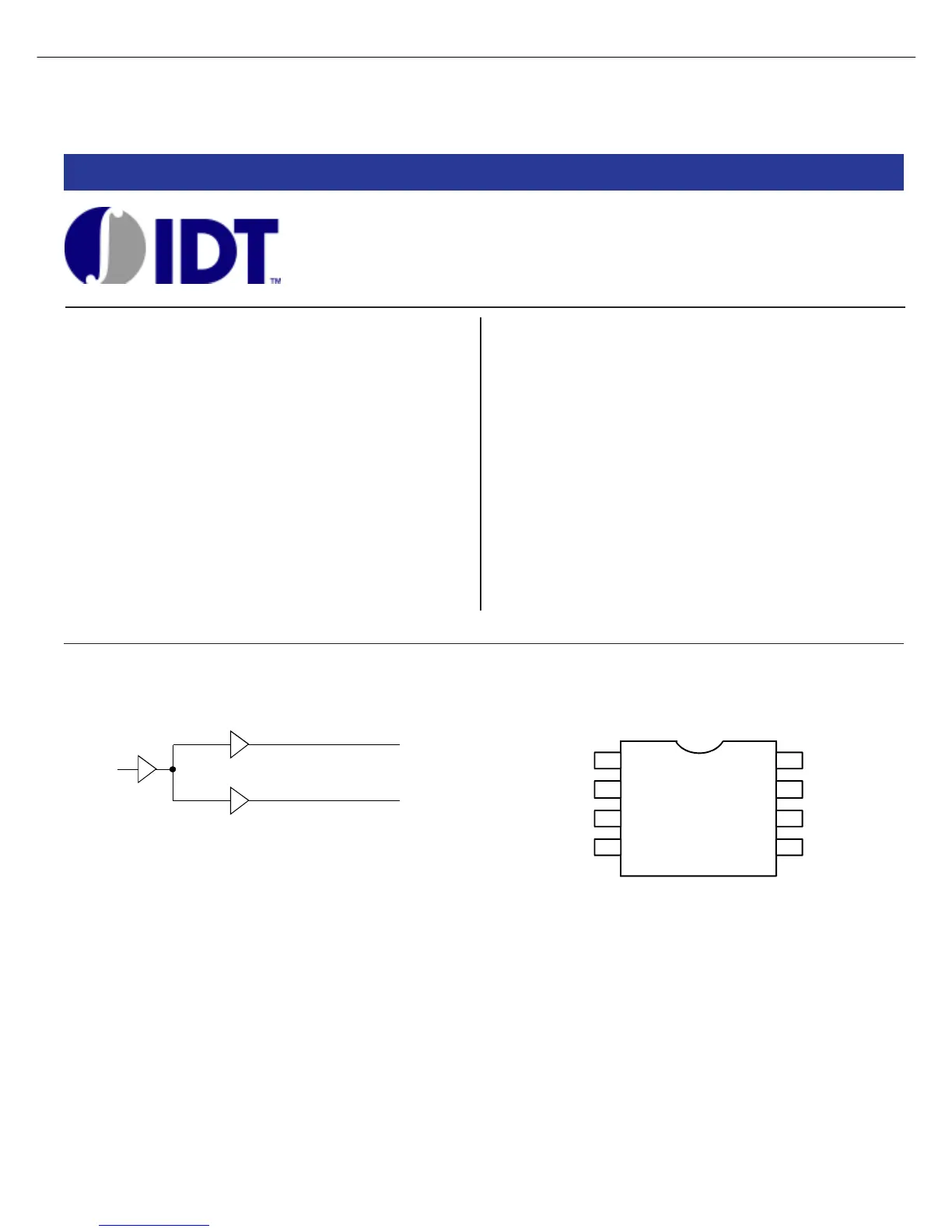

FUNCTIONAL BLOCK DIAGRAM
IN
O1
O2
PIN CONFIGURATION
VCC
GND GND
GND
V
CC
IN
O
2
O1
1
2
3
4
5
6
7
8
SOIC
TOP VIEW
FEATURES:
• Advanced CMOS Technology
• Guaranteed low skew < 100ps (max.)
• Very low duty cycle distortion< 350ps (max.)
• High speed propagation delay< 3ns (max.)
• Very low CMOS power levels
• TTL compatible inputs and outputs
• 1:2 fanout
• Maximum output rise and fall time < 1ns (max.)
• Low input capacitance: 3pF typical
•VCC = 3.3V ± 0.3V
• Inputs can be driven from 3.3V or 5V components
• Operating frequency up to 166MHz
• Available in SOIC package
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
