ASAHI KASEI AKM CONFIDENTIAL [AK5381]
Rev.0.4 2002/08
- 2 -
 Ordering Guide
AK5381VT −40 ∼ +85°C 16pin TSSOP (0.65mm pitch)
AKD5381 Evaluation Board for AK5381

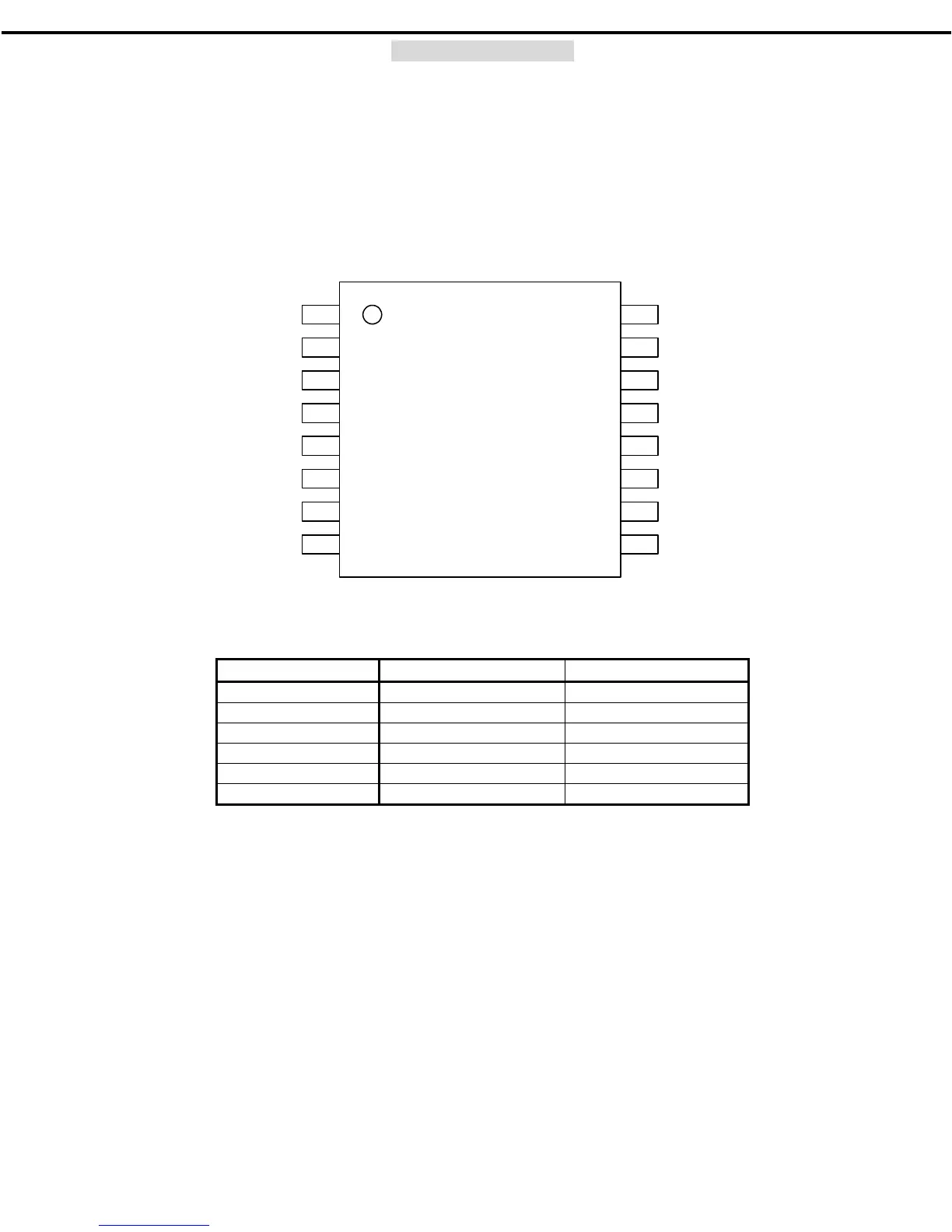

 Pin Layout
CKS1
VCOM
VD
DGND
AINR
AINL
AGND
VA
Top View
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
16
DIF
PDN
LRCK
MCLK
SCLK
CKS2
CKS0
SDTO
 Compatibility with AK5380
AK5380 AK5381
Master Mode Not Available Available
HPF OFF Not Available Available
VD (Digital Supply) 4.5 to 5.5V@fs=96kHz 3.0 to 5.5V@fs=96kHz
Pin #3 NC CKS1
Pin #15 TTL CKS2
Pin #16 TST CKS0
AVR130 harman/kardon
92

Harman Kardon AVR130 Specifications

General

Signal-to-Noise Ratio	100dB
Total Harmonic Distortion	0.07%
Output Impedance	8 Ohms
Input Sensitivity	200mV
Input Impedance	47k Ohms
Tuner Presets	30
Frequency Response	10Hz to 100kHz
Inputs	1 x Coaxial Digital, 1 x Optical Digital
Outputs	1 x Audio
Dimensions	440 x 150 x 382 mm
