Harman Kardon BDS Quick Start Guide

BDS
3
ENGLISH

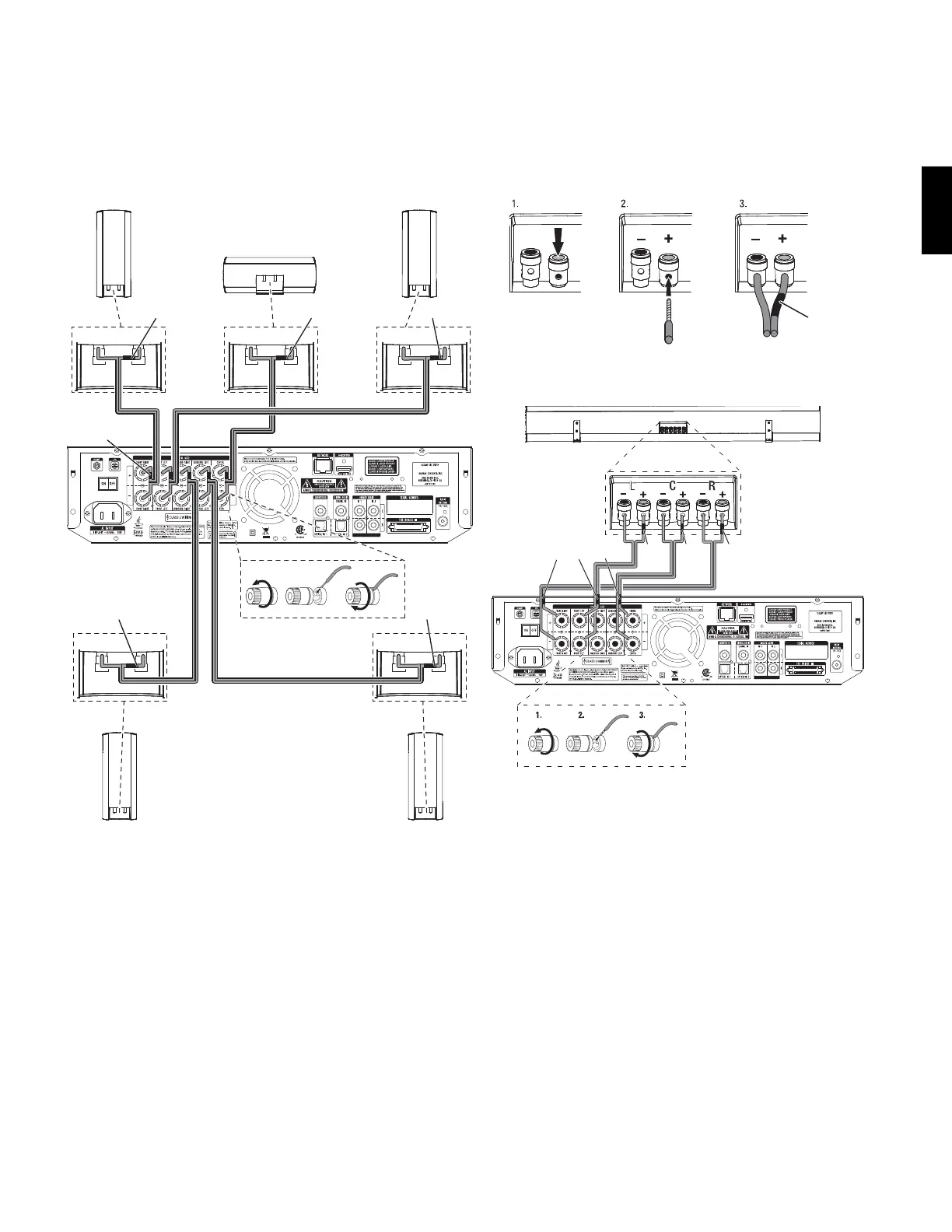

Connections
BDS
+– +–
+–+– +–
1. 2. 3.
Front Right
Satellite
Colored Bands
to "+" Terminals
Surround Right
Satellite*
Surround Left
Satellite*
Front Left
Satellite
Center*
Red Band
Gray Band
*Speakers included only in 5.1 system
Blue Band
Green Band
White Band
BDS Receiver (BDS 5.1 shown)
IMPORTANT: Make sure the (+) and (–) bare wires do not touch each other or the
other terminal. Touching wires can cause a short circuit that can damage the
receiver.
3.1 Soundbar System
SB 10 Soundbar
BDS 5.1 Receiver
White
Band
White
Band
Green
Band
Green
Band
Red
Band
Red
Band
Colored
Band
IMPORTANT: Make sure the (+) and (–) bare wires do not touch each other or the
other terminal. Touching wires can cause a short circuit that can damage your
receiver or amplifier.

Harman Kardon BDS Specifications

General

Number of channels	5.1
HDMI inputs	3
HDMI outputs	1
USB	Yes
Ethernet	Yes
Bluetooth	Yes
Wi-Fi	Yes
DLNA	Yes
3D Support	Yes
Wireless Subwoofer	Yes
Apple AirPlay	Yes
Spotify Connect	Yes
Dolby Digital	Yes
DTS	Yes
Disc formats	DVD, CD
