SUB-TS11 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS 5

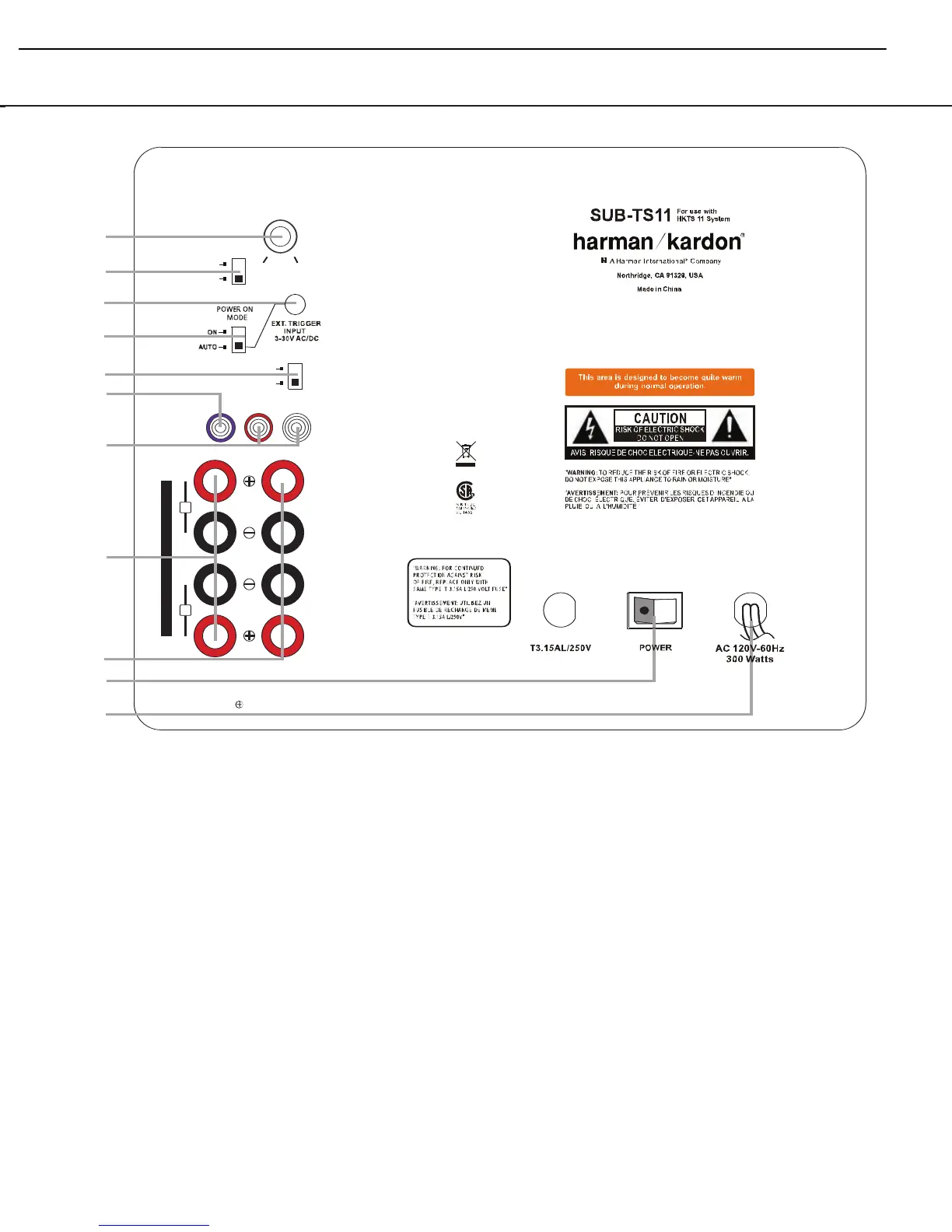

SUB-TS11 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS
OFF
ON
FILTER
NORMAL
REVERSE
PHASE
INOUT
R
L
LINE
LEVEL
IN
MAXMIN
IMPORTANT: CONNECT STRIPED WIRE
TO RED ( ) SPEAKER TERMINAL.
L
R
SUBWOOFER
LEVEL
H
I
G
H
L
E
V
E
L
™
£
¢
SUB
¡
§
ª
⁄
‚
¶
•
∞
¡ Subwoofer-Level Control: Volume
may be adjusted using the Subwoofer-
Level Control. Turn the control clockwise
to increase the SUB-TS11’s volume, or
counterclockwise to decrease it.
™ High-Cut (Low-Pass) Filter Switch:
Placing this switch in the ON position acti-
vates circuitry that cuts out all audio input
signals above 120Hz, allowing the SUB-TS11
to focus its power on reproducing the low-
frequency portion of the signal, avoiding inef-
ficiency and distortion. Engage this filter
when using the Speaker-Level Inputs ª,
or when using the Line-Level Full-Range
Inputs ¶, unless your receiver or processor
processes its line-level output using a low-
pass filter. The filter has no effect when the
SUB Input § is used.
£ External Trigger Input: Use the sup-
plied mini-plug cable to connect the trigger
output of another product to this jack. When
a trigger signal between 3 and 30 volts (AC
or DC) is detected, the SUB-TS11 amplifier
will turn on, even when the Audio-Sense
feature has been activated by placing the
Audio-Sense On/Off Switch ¢ in the
AUTO position. The amplifier will remain
on for about 10–15 minutes without an
audio signal.
¢ Audio-Sense On/Off Switch: When
placed in the AUTO position, and when the
Master Power Switch ‚ is turned on, the
SUB-TS11 will automatically turn itself on or
¡ Subwoofer-Level Control
™ High-Cut (Low-Pass) Filter Switch
£ External Trigger Input
¢ Audio-Sense On/Off Switch
∞ Phase Switch
§ Line-Level Subwoofer (SUB) Input
¶ Line-Level Full-Range Inputs
• Speaker-Level Outputs
ª Speaker-Level Inputs
‚ Master Power Switch
⁄ AC Power Cord
HKTS 11 OM 8/2/06 11:26 AM Page 7
