AM/FM FRONT END (FL4 l 2U 131

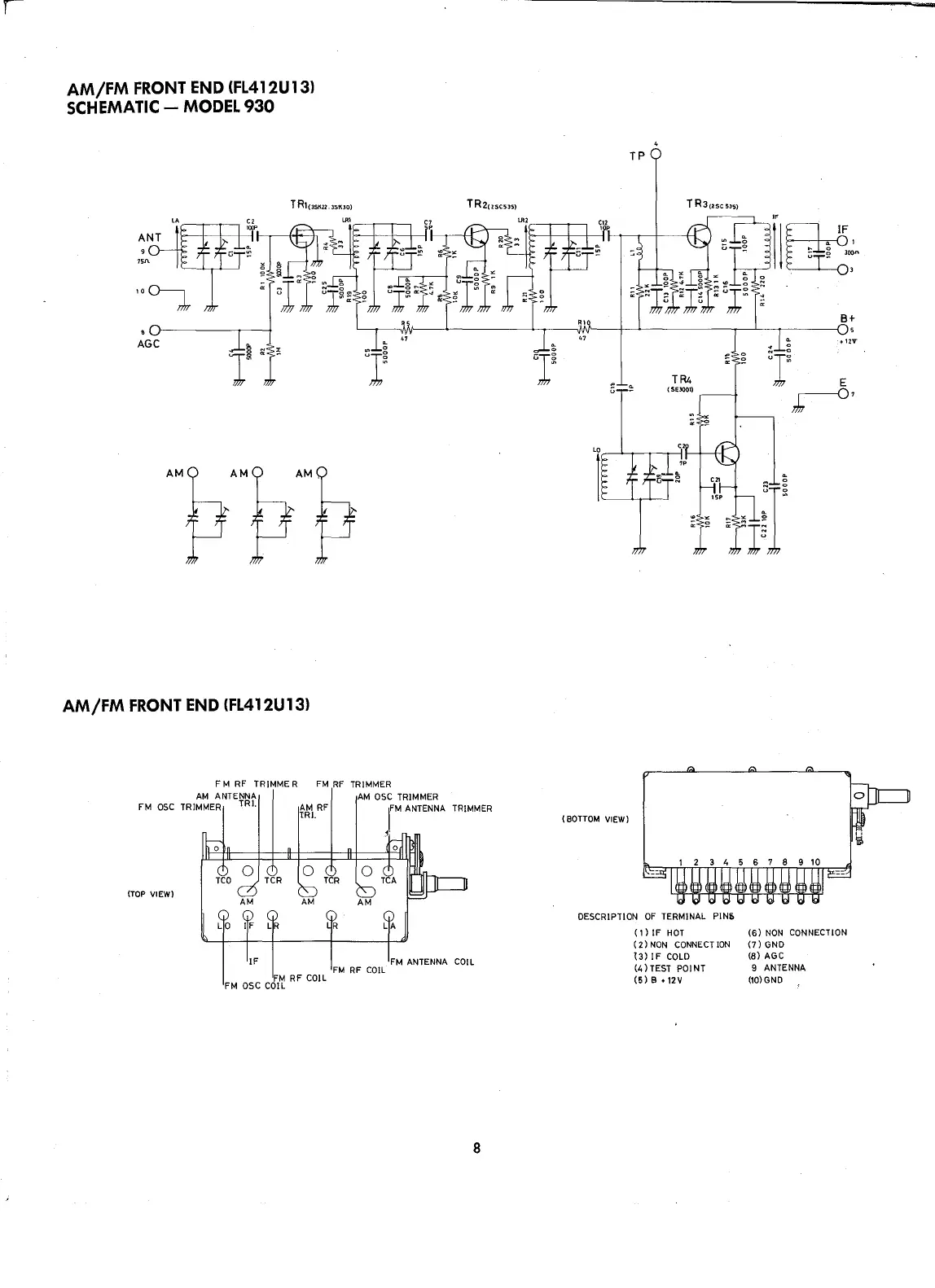

SCHEMATIC - MODEL 930
TR1(3SK22.3SKlO)
TR2(ZSC53S)
AM/FM FRONT END (FL412Ul3l
FM RF TRIMMER FM RF TRIMMER
AM ANTENNA
FM OSC TRIMMER TRI.
(TOP VIEW)
AM RF
1RI.
FM RF CO)L
FM OSC COIL
AM OSC TRIMMER
IFM ANTENNA TRIMMER
j'
FM ANTENNA COi L
FM RF COIL
8
TP
TR3czscsls)
( BOTTOM VIEW)
DESCRIPTION OF TERMINAL PINS
(1) IF HOT
( 2) NON CONNECT ION
l3) IF COLD
(4)TEST POINT
(5) B • 12V
(6) NON CONNECTION
(7) GND
(8) AGC
9 ANTENNA
(10)GND
