KM200 System
3. Antenna 4. Balance Out2
7. Sensitivity Knob1 8. Sensitivity Knob2
6. Balance Out15. Unbalance Out1. Power Switch 2. Power Connector
Product Descriptions

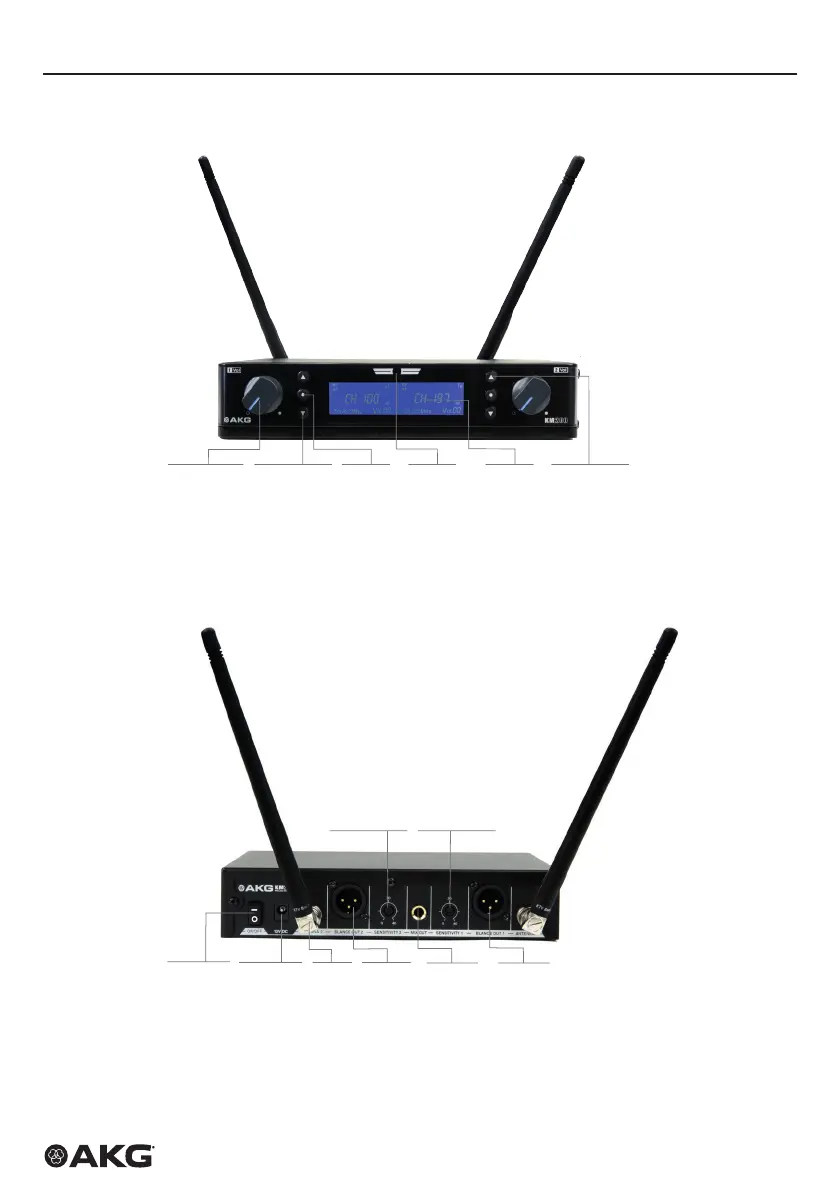

SR200 Wireless Receiver Front Panel
SR200 Wireless Receiver Rear Panel
1. Output Gain Control 2. Down NavigationKey 3. Function Key 4. IR Sensor
5. LCD Screen
6. Up Navigation Key
1. Output Gain Control: for output gain adjustment.
2. Down Navigation Key: selection Navigation.
3. Function Key: press to confirm the selection.
4. IR Sensor: for Infrared communication with transceiver.
5. LCD Screen: display the current information.
6. Up Navigation Key: selection Navigation.
1. Power Switch: power on/off.
2. Power Connector: connect to power supply.
3. Antenna: UHF antenna.
4. Balance Out2: XLR balance output.
5. Unbalance Out: mix output.
6. Balance Out1: XLR balance output.
7. Sensitivity Knob1: for channel 1 sensitivity adjustment.
8. Sensitivity Knob1: for channel 2 sensitivity adjustment.
