22 WMS420
Description
Back side

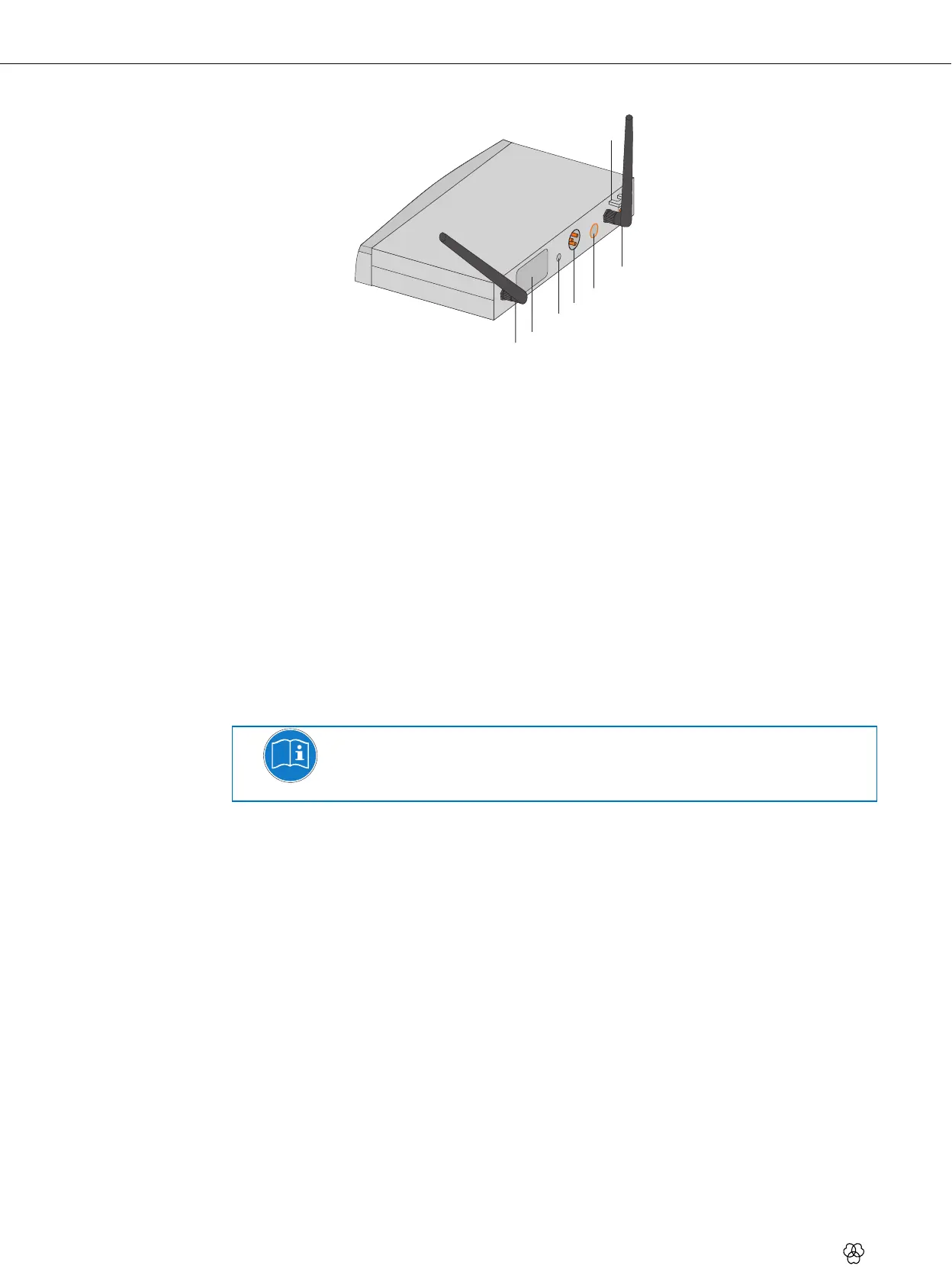

Figure 2: Rear panel controls on SR420 receiver
1 ANTENNA A/B: BNC jacks for connection of the two supplied UHF antennas or remote
antennas (optional).
2 Carrier frequency label: An adhesive label stating the carrier frequency band is affixed on
the back of the receiver. The enclosed frequency chart provides further information about the
available frequencies.
3 SQUELCH: The squelch function turns the receiver off if the received signal is too weak so
that the associated static noise or inherent noise of the receiver are not audible when the
transmitter is turned off. Set the SQUELCH control to minimum before turning the receiver on
for the first time.
4 AUDIO OUT/BALANCED: Symmetric audio output on 3-pole XLR jack: You can connect the
microphone input of a mixer to this output, for example.
5 AUDIO OUT/UNBALANCED: Asymmetric audio output on 6.3 mm mono jack bush. Here you
can connect a guitar amplifier, for example.
6 Strain relief for the supply cable of the provided AC adaptor.
7 DC IN: Supply socket for connecting the supplied AC adapter.
NOTE
The SR420 can be supplied with electricity via the external power pack or when using the
antenna splitter PS4000 W, via the antenna cables. The splitter provides electricity to all
connected SR420 receivers.
1
2
3
5
6
4
7
