T-Series Operation Manual
Wiring (continued)

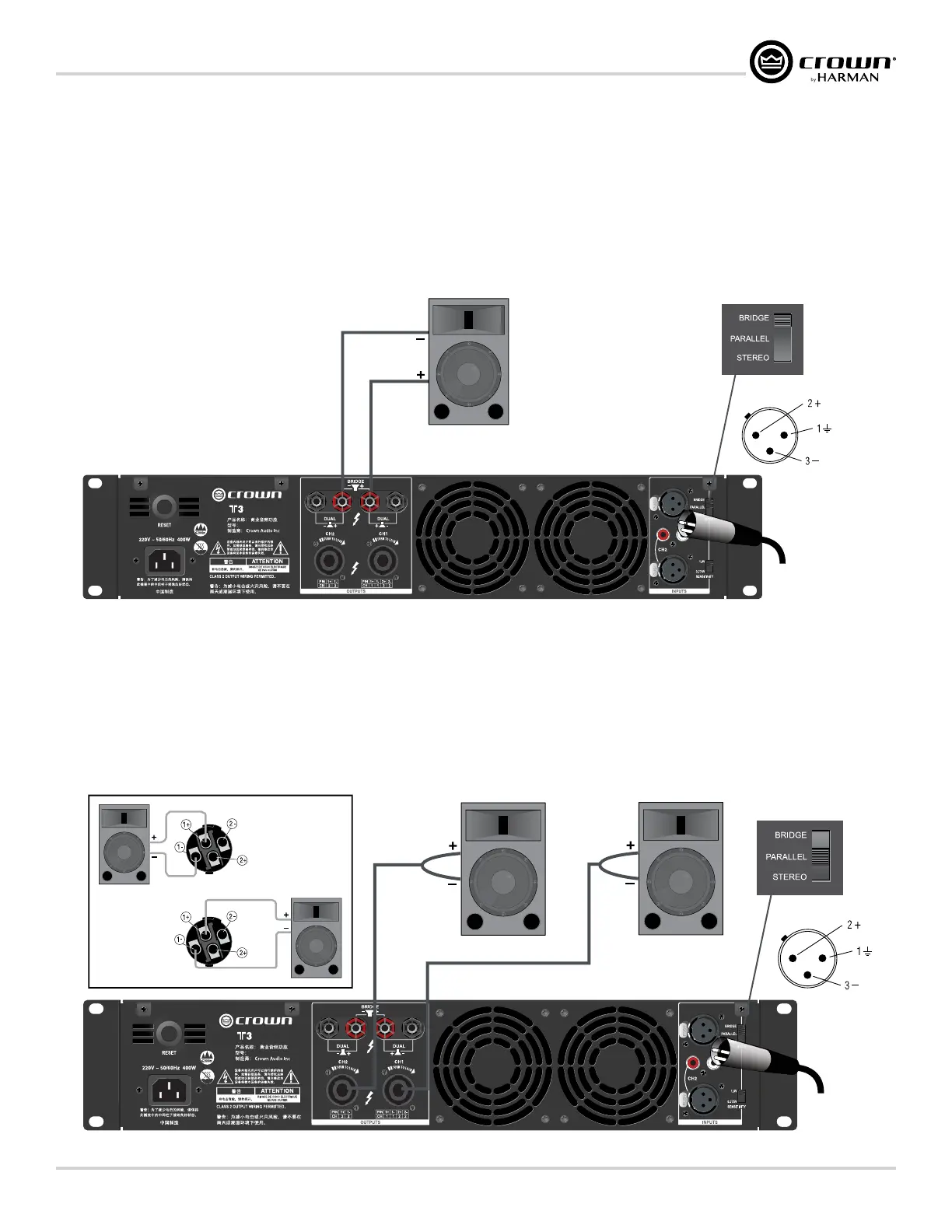

Bridge-Mono Wiring Using Binding Post Connectors
Bridge-mono mode doubles the output power of the amplifier.
1� On the back panel, set the Output Mode Switch to BRIDGE.
2� Wire the speaker to the binding post connections as shown.
3� Only the Channel 1 Gain Control works in Bridge-mono mode.
Parallel Wiring Using Speakon
®
Connectors
With this wiring, a signal sent to one of the input connectors is paralleled to both channels so that it is reproduced by both speakers.
1� On the back panel, set the Output Mode Switch to PARALLEL.
2� Wire the speakers to the Speakon® connectors as shown.
T3
T3
