Connections

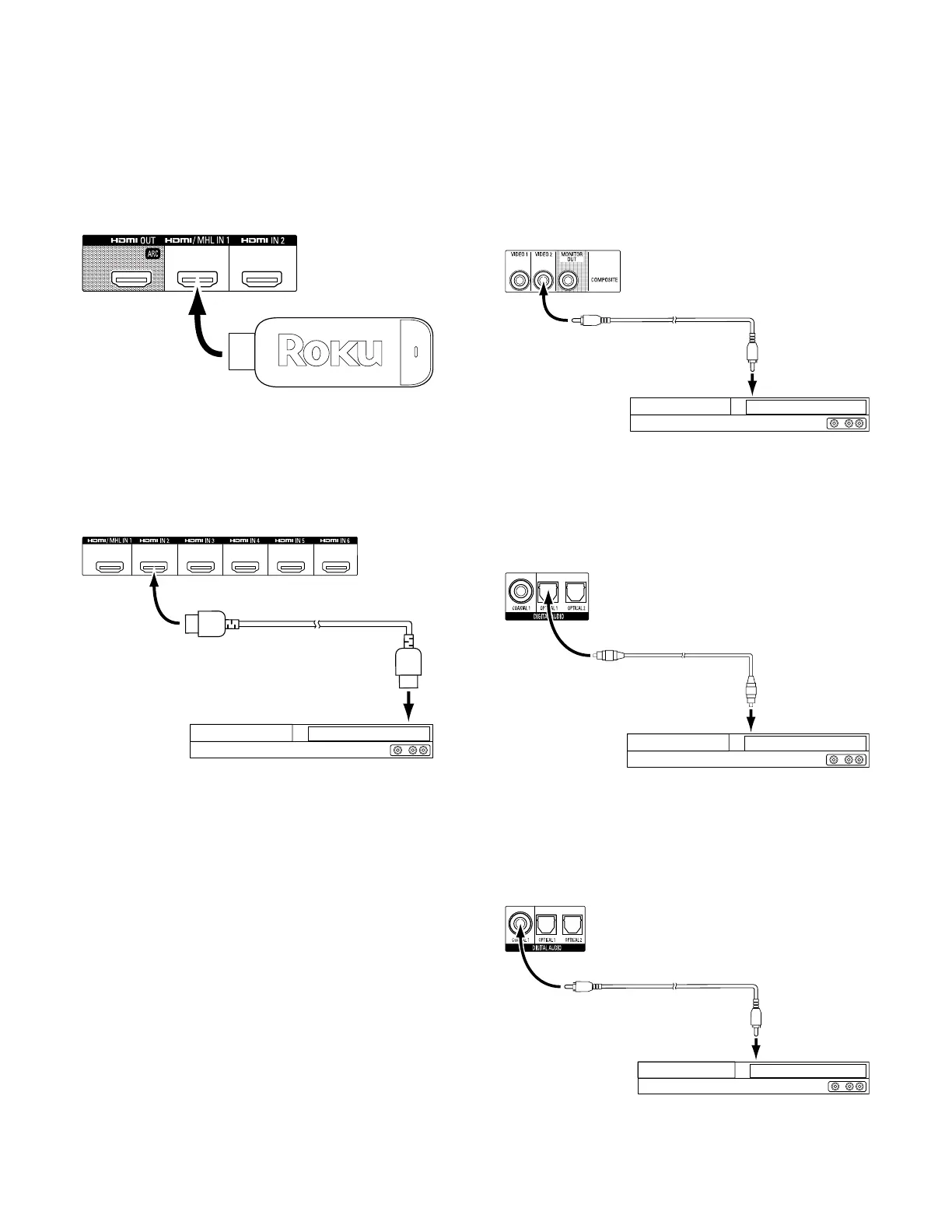

ROKU Streaming Stick (AVR 1710/AVR 171/AVR 1610/AVR 161 only):
If you have a Roku Streaming Stick, insert it into the AVR’s HDMI/MHL In connector.
NOTE: Do not insert the Streaming Stick into any other HDMI In connector.
AVR HDMI/MHL
In Connector
Roku
®
Streaming Stick
HDMI Devices
If any of your source devices have HDMI connectors, using them will provide the best
possible video and audio performance quality. Since the HDMI cable carries both digital
video and digital audio signals, you do not have to make any additional audio connections
for source devices you connect via HDMI connectors.
AVR HDMI IN Connectors
HDMI Cable
(not supplied)
To HDMI
Output
HDMI-Equipped Source Device
Composite Video Devices
Use composite video connectors for video source devices that don’t have HDMI or
component video connectors. You will also need to make an audio connection from the
source device to the AVR.
AVR Analog
Video Connectors
Composite Video Cable
(not supplied)
To Composite
Video Output
Composite Video-Equipped Source Device
Optical Digital Audio Devices
If your non-HDMI source devices have optical digital outputs, connect them to the AVR’s
optical digital audio connectors. NOTE: Make only one type of digital connection (HDMI,
optical or coaxial) from each source device.
AVR Digital
Audio Connectors
Optical Digital Audio
Cable (not supplied)
To Optical Digital
Audio Output
Optical-Equipped Source Device
Coaxial Digital Audio Devices
If any of your non-HDMI source devices have coaxial digital outputs, connect them to
the AVR’s coaxial digital audio connector. NOTE: Make only one type of digital connection
(HDMI, optical or coaxial) from each source device.
AVR Digital
Audio Connectors
Coaxial Digital Audio
Cable (not supplied)
To Coaxial Digital
Audio Output
Coaxial-Equipped Source Device
