HTS-10 Home-Theater System – Owner’s Manual
H ORIZONTAL M OUNTING ...

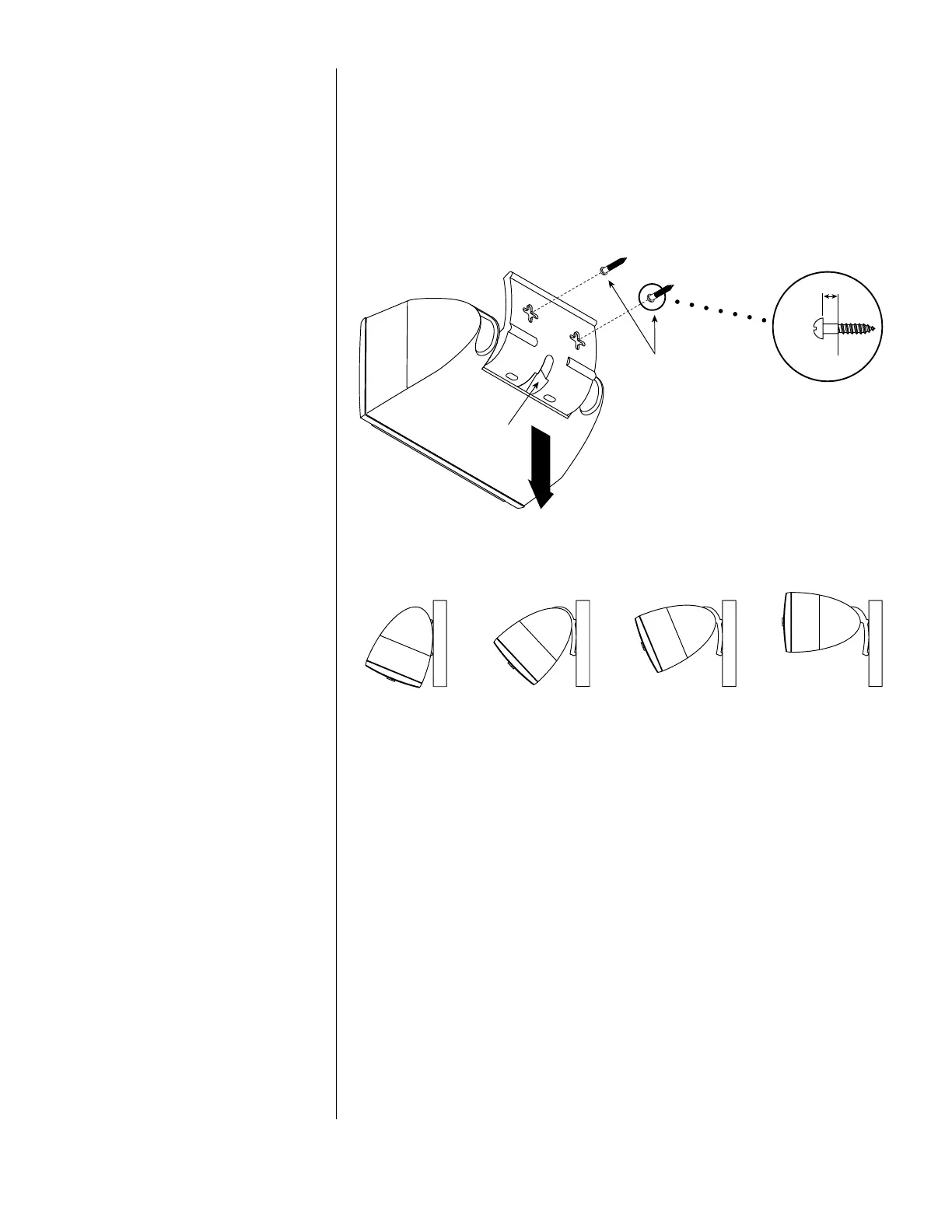

Figure 6. This illustration shows how to
mount the speaker horizontally on a
wall or ceiling four different ways.
For horizontal mounting, fasten the #6 wood screws (not included) to a wall stud, leaving a 3⁄16"
clearance between the base of the screw head and the wall. If desired, loosen the bracket screw,
adjust the bracket angle, and tighten the bracket screw.
NOTE: You may want to route the wires before tightening the bracket screw (see Figure 8 on page 11).
Then orient the speaker horizontally, align the crossholes on the rear of the speaker with the
screws, and slide the speaker down. Rotate the logo to match the orientation of the speaker.
Slide Speaker Down
Onto Wood Screws
#6 Wood Screws
(fasten to wall stud)
HORIZONTAL MOUNTING USING BRACKET
❶ Loosen Screw
❷ Rotate Bracket
❸ Tighten Screw
Screw
(inside hole)
(rear view)
Positions
(side view)
45° Tilt Up
(Bracket Open,
Position #1)
20° Tilt Up
(Bracket Closed)
67.5° Tilt Up
(Bracket Open,
Position #2)
90° Tilt Up
(Bracket Open,
Position #3)
3/16"
wall
wood
screw
(side view)
