CONNECTING THE SUBWOOFER (CONT.)
The subwoofer may be connected to your system using the HIGH-LEVEL INPUTS
❶
on the
plate located on the rear panel of the subwoofer. Use speaker wire, maintaining proper polarity
(+ to + and – to –). Attach the speaker wire to the left and right HIGH-LEVEL INPUTS on the
subwoofer and the other ends to the proper left and right OUTPUTS on your amplifier or receiver.
Then connect the outputs of the subwoofer to the front left and right satellites as shown in
Figure 11. The additional speaker wires required for this connection method are not included
with the system.

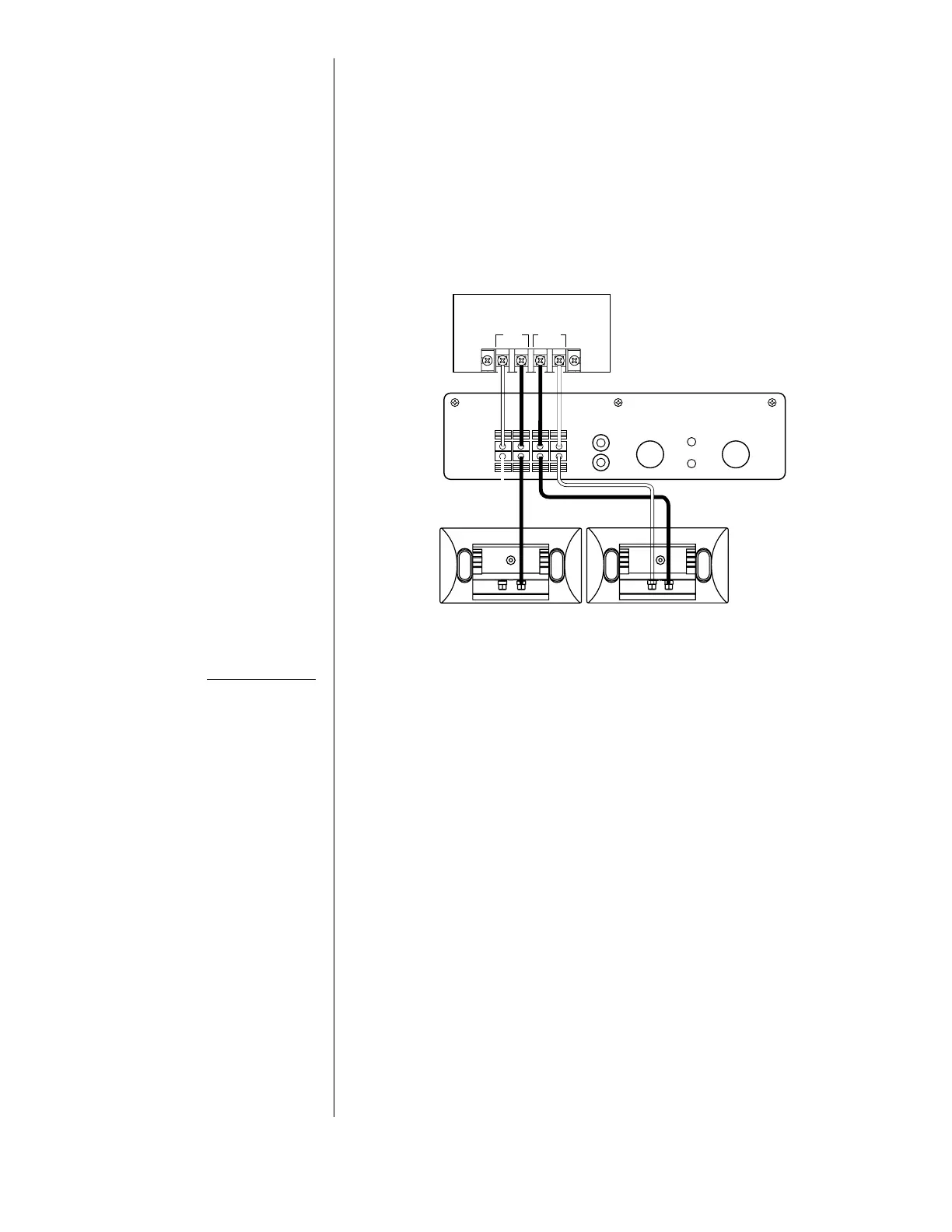

Figure 11.
I
MPOR
TANT
!
The subwoofer has a variable frequency control that can be used to block unwanted frequen-
cies (between 50 – 150Hz) from being reproduced by the subwoofer. Where you set this control
depends on the low-frequency capabilities of your satellite speakers and the configuration of
your system. Refer to Step 6 of “Operating the Subwoofer” on page 16.
