CONNECTING THE SUBWOOFER
There are several ways to connect your subwoofer. Read this section carefully to determine which
method is best suited for your installation.
The subwoofer may be fed directly with a low-level signal taken from your receiver’s subwoofer-
output to connect your subwoofer. Connect one end of each stereo pair of leads to your receiver/
processor’s left and right outputs and connect the other end to the corresponding left and right
LOW-LEVEL INPUTS
❷ on the subwoofer. This cable is included with the system.
T URN O FF A LL P OWER ...

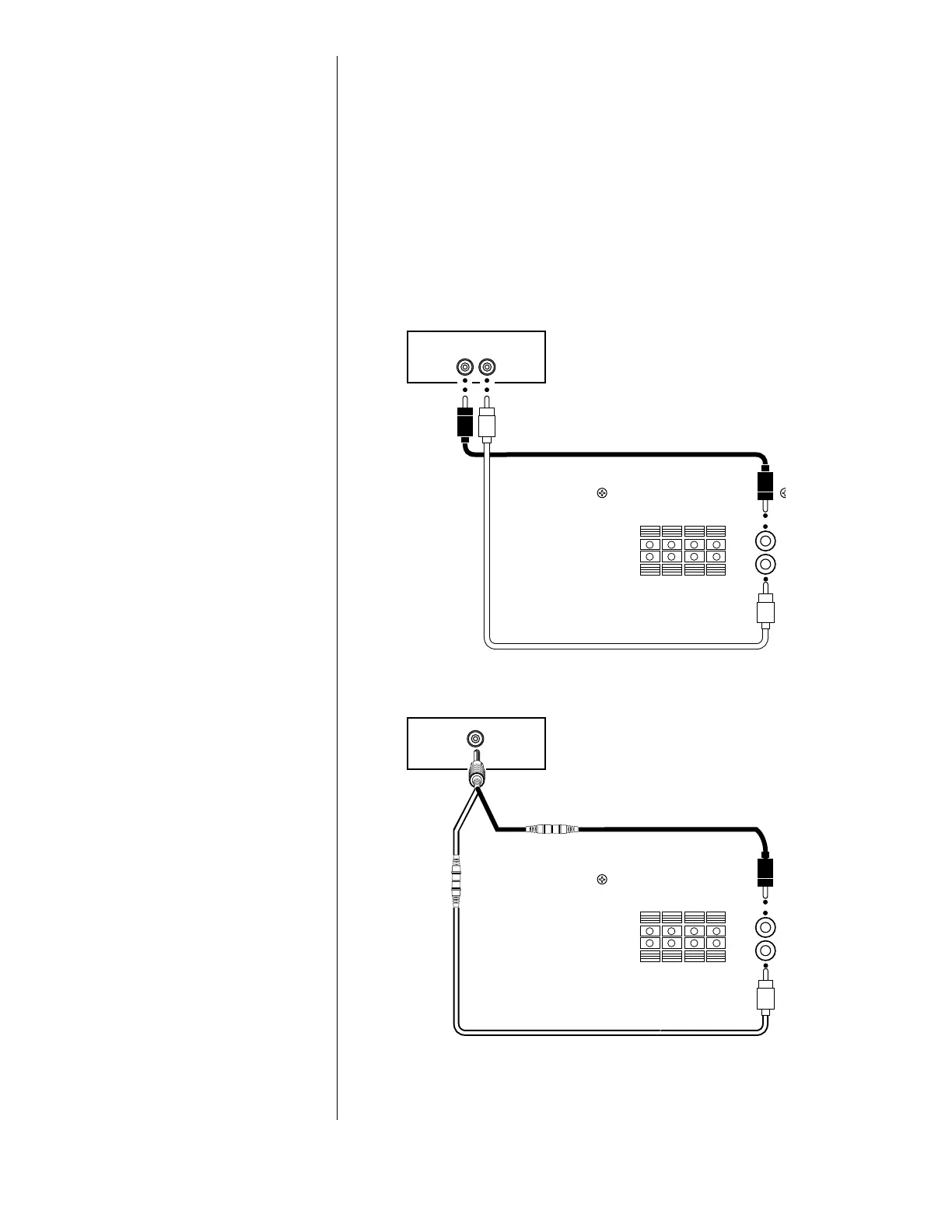

Figure 10.
NOTE: If your receiver/processor has
only one subwoofer output, it is
recommended that you use
the supplied “Y”-connector as shown.
SUBWOOFER
SUBWOOFER OUTPUT
LEFT
RIGHT
LR
SPKR
In
SPKR
Out
+ L –
– R +
L
R
Low-Level In
SUBWOOFER
SUBWOOFER OUTPUT
LEFT
RIGHT
SPKR
In
SPKR
Out
+ L –
– R +
L
R
Low-Level In
Y-Connector
