Harman JBL BAR 5.1 Service Manual

SR1
SR2
SR9
SR8
SR15
SR21
SR11
SR3
SR4
SR6
SR16
SR10
SR13
SR19
SR22
SR14
SR5
SR18
SR7
SR17
SR12
SR20

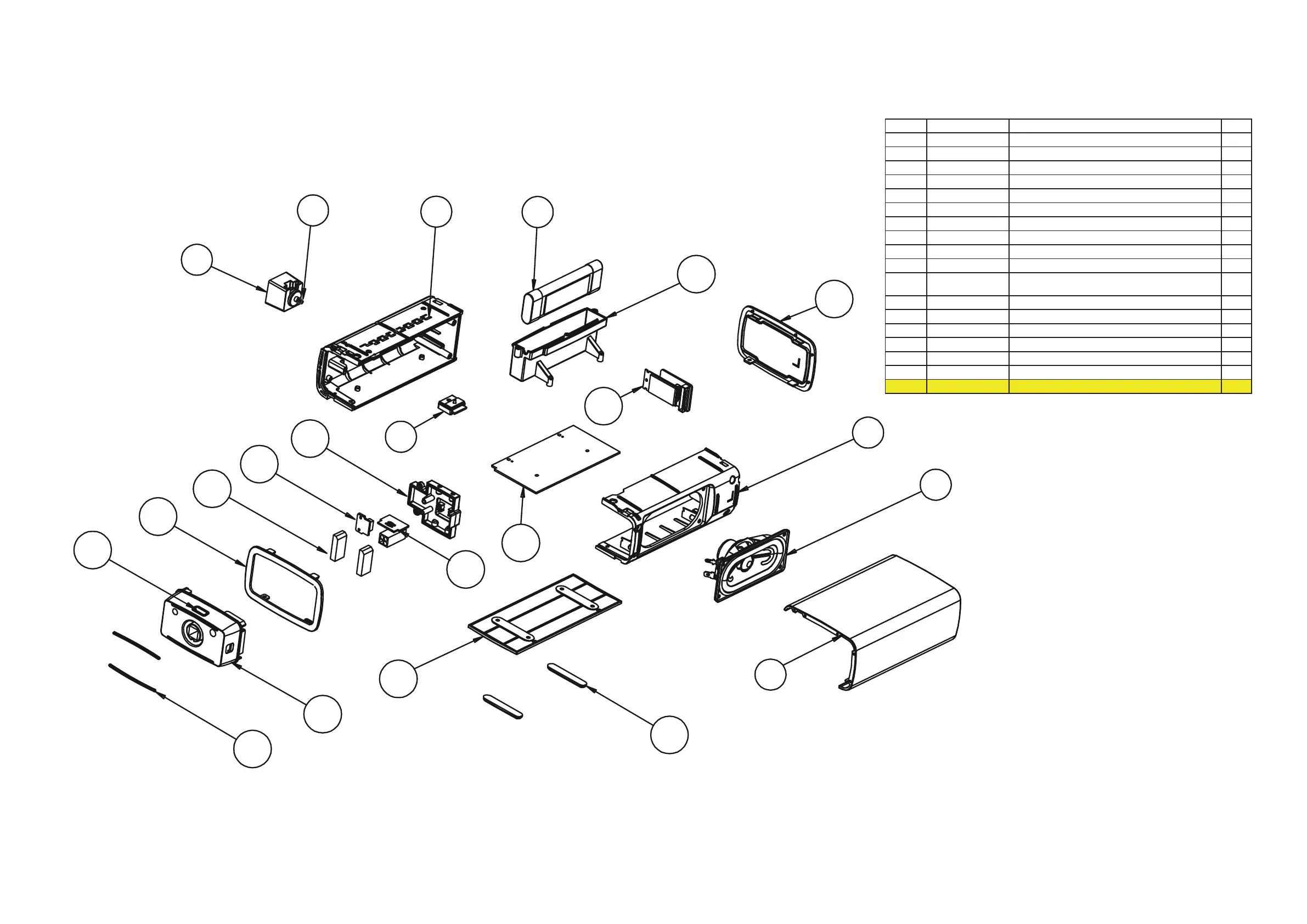

MECHANICAL EXPLODED VIEW (SURR. SPK R)
2KEY PCBA BAR5.1ABE112783-0001SR22
1WIRELESS R PCBA BAR5.1ABE112781-0001SR21
2SURR SPK BUTTON BAR5.1BPB120098-0001SR20
SR19 BRF100186-0001 RUBBER FOOT C SILICONE BAR5.1 4
SR16 BRF100185-0001 RUBBER FOOT I SILICONE BAR5.1 4
SR14 ABE112632-0001 SURR SPK MAIN R PCBA BAR5.1 1
SR13 ABN100831-0009 SURR SPK R INSERT COVER BAR5.1 1
SR12 BPY110024-0001 SURR SPK END CAP R RING BAR5.1 1
SR11 BPV110155-0001 SURR SPK END CAP R BAR5.1 1
SR10 ABN100831-0001 SURR SPK L/R BTM COVE BAR5.1 2
SR9 BPA110069-0001 SURR SPK R REAR HOUSING BAR5.1 1
SR8+SR
15
ABN100831-0008
SURR SPK R BATTERY COVER+BATTERY
BAR5.1
1
2
2
2
2
SR7 ABE112785-0001 JACK PCBA BAR5.1
SR6
GSP100137-0001 SURR SPK METAL GRILL BAR5.1
SR5 ABE112784-0001 LED PCBA BAR5.1
SR4 FSB012000-0601 SPEAKER DRIVER 20W FULL RANGE BAR5.1
SR3 ABN100831-0007 SURR SPK R FRONT HOUSING BAR5.1
1
1SURR SPK R ASS'Y BAR5.1ABN108002-0016
