CRUISE

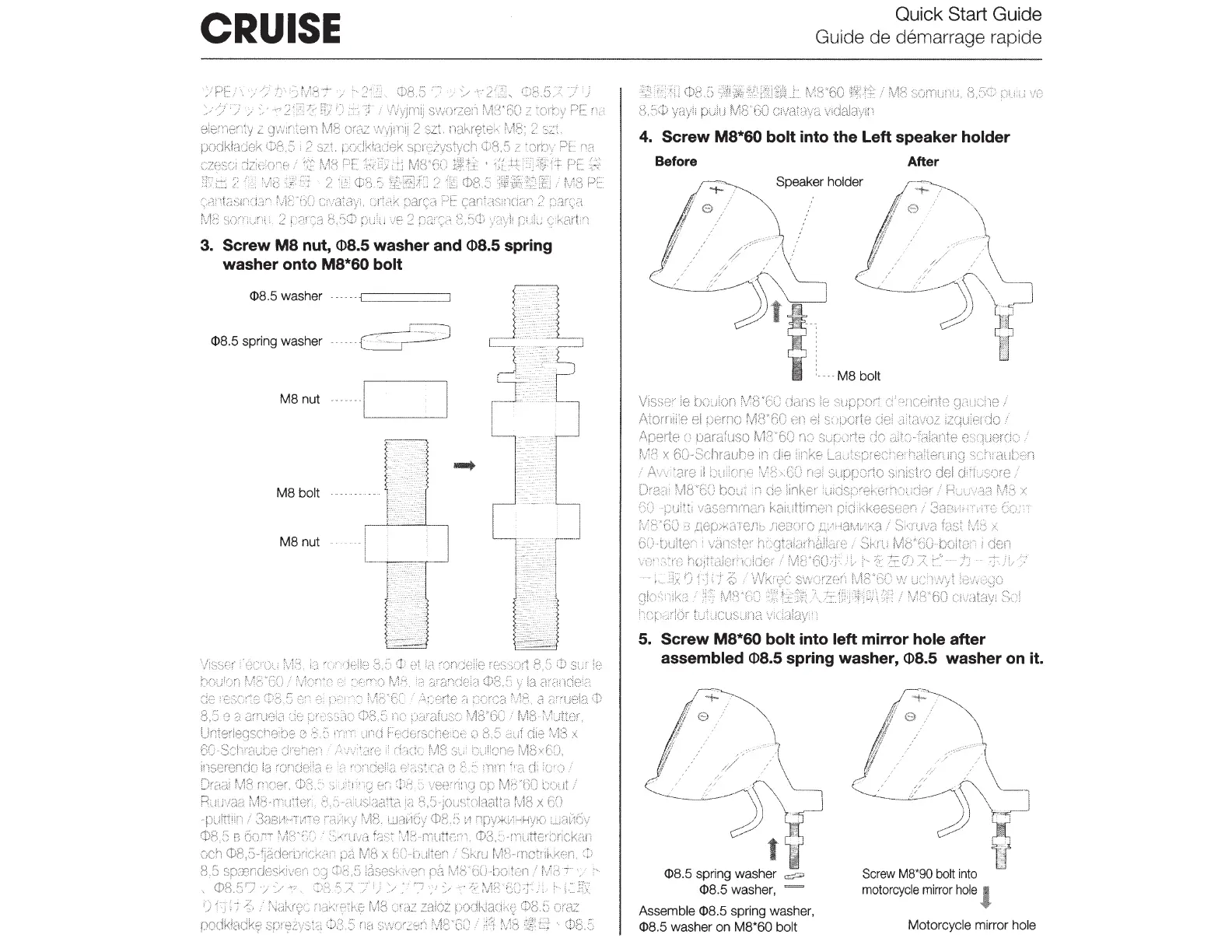

3. Screw MS nut, <D8.5 washer and <D8.5 spring
washer onto M8*60 bolt
<D8.5 washer
<D8.5 spring washer
M8 nut
--I
'--------'
M8 bolt
M8 nut
Quick Start Guide
Guide de demarrage rapide
4. Screw M8*60 bolt into the Left speaker holder
Before
After
Speaker holder
M8 bolt
5. Screw M8*60 bolt into left mirror hole after
assembled
<D8.5 spring washer, <D8.5 washer on it.
<D8.5 spring washer ~,
<1>8.5 washer, =
Assemble <D8.5 spring washer,
<D8.5 washer on M8*60 bolt
Screw M8*90 bolt into
motorcycle mirror hole l
Motorcycle mirror hole
