Harman JBL EON10-G2 User Manual

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
JBL EON10-G2 REV T

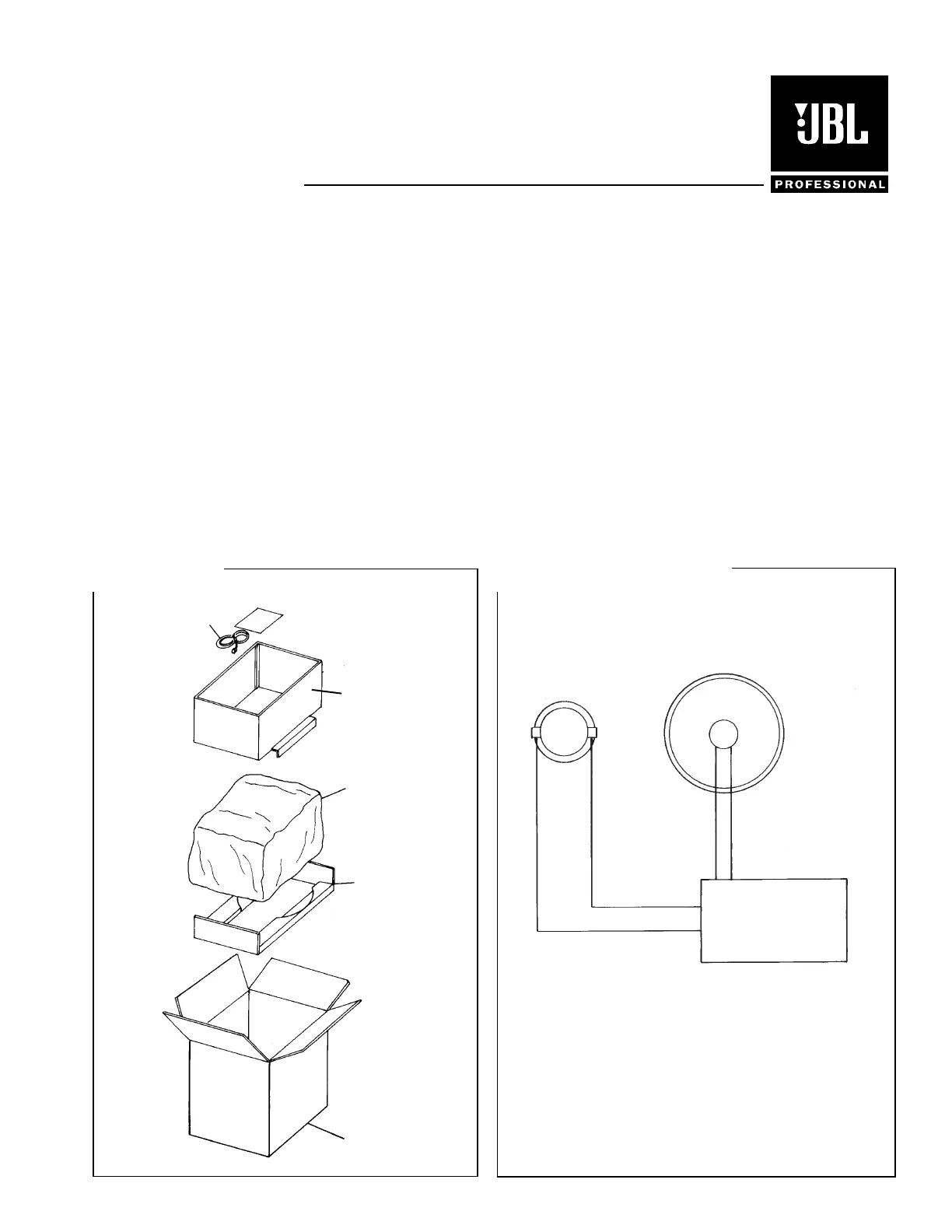

PACKAGE
WIRING DIAGRAM
03-07
Technical Manual
JBL EON10-G2
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Amplifier Power LF: 125 Watts @ Low Frequency
Driver Impedance.
Amplifier Power HF: 50 Watts @ High Frequency
Driver Impedance
• Frequency Range: 65 Hz – 18 kHz (± 10dB)
• Frequency Response: 90 Hz – 16 kHz (± 3 dB)
• Horizontal Coverage: 90° Nominal
• Vertical Coverage: 60° Nominal
• Rated Maximum SPL: 117 dB, @ 1 M
• Crossover Frequency: 2.7 kHz
SYSTEM COMPONENTS:
• Low Frequency Integral Frame with one 10” (254 mm)
Transducer: Driver, Neodymium Magnet, 1.5”
Differential-Drive Voice Coil
• DC Resistance: 5.4 ohm ±10%
• High Frequency JBL 2412H 1”
Transducer: Compression Driver, Titanium
Diaphragm, Ferro-fluid Cooled, 8 ohm
• DC Resistance: 4.3 ohm ±10%
SYSTEM COMPONENTS: (CONT’D)
• Input 1 Sensitivity: -48 dBu to 0 dBu for Rated Output
(Mic/Line Switch in Mic Position)
-6 dBu to +20 dBu for Rated Output
(Mic/Line Switch in Line Position)
• Input 2 & 3 Sensitivity: -12 dBu to +20 dBu for Rated Output
• Output Level: +26 dBu (Max), Loop/Mix Switch
in Mix Position
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 250 MV Input RMS, Pot at 1/2,
Tone flat, Way 20 Hz to 20 kHz
B. L.F. Aural Sweep Test: 4.0V Input, 20 Hz to 4 kHz
C. H.F. Aural Sweep Test: 2.5V Input, 500 Hz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 493mm x 356mm x 307mm D
(19.4 x 14.0 x 12.1 in. D)
• Shipping Weight: 26 lbs. (11.8 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Warranty 59660
Owners Manual,
EON10-G2
981-00061-00
EON10-G2 System
Owners Manual
336949-001
Carton
990-00228-00
Bag
32259-001
Tray Carton
replaced w/
Filler (2)
337817-001
Sleeve, Carton
991-00023-00
Cord, AC
Line 120V
425-00000-00
Network
Driver, High Freq
2412H
Use 125-10000-00X
(SEE SCHEMATIC PAGE)
EON10-G2 LF
BAF/Cone Assy
Cone Repl
C8REON10-G2
WHT
RED
BLUE
BLK
