JBL EON10-G2
JBL EON10-G2

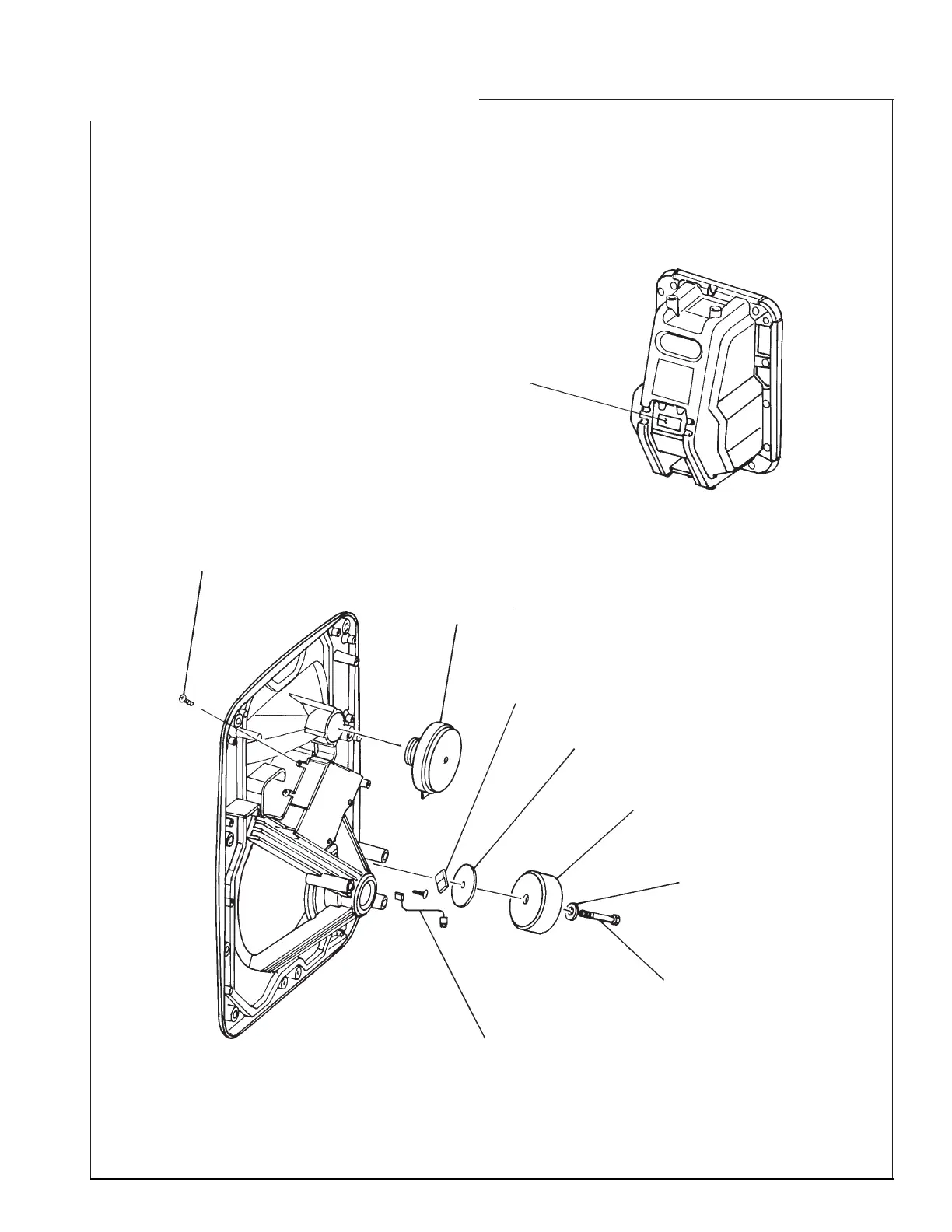

COMPONENT EXPLODED VIEW
Label
480-00100-00
120V EON10-G2
Label
480-00100-01
230V, EON10-G2/230
Driver, High Freq
2412H
use 125-10000-
00X
Screw (4)
864-41600-08
10-32 x 1/2
PAN, PH, TT,
CLR, ZINC
Transformer
562-00041-00
EON10-G2
Nut Retainer Tinn
U-Type
330652-001
Washer, Transformer
Mounting
885-00088-00
Bolt (1)
854-03001-44
1/4-20 x 2 3/4
CAP, CLR, ZINC
Power LED Assembly
Washer, Flat
844-00110-06
1/4 x 1
