4

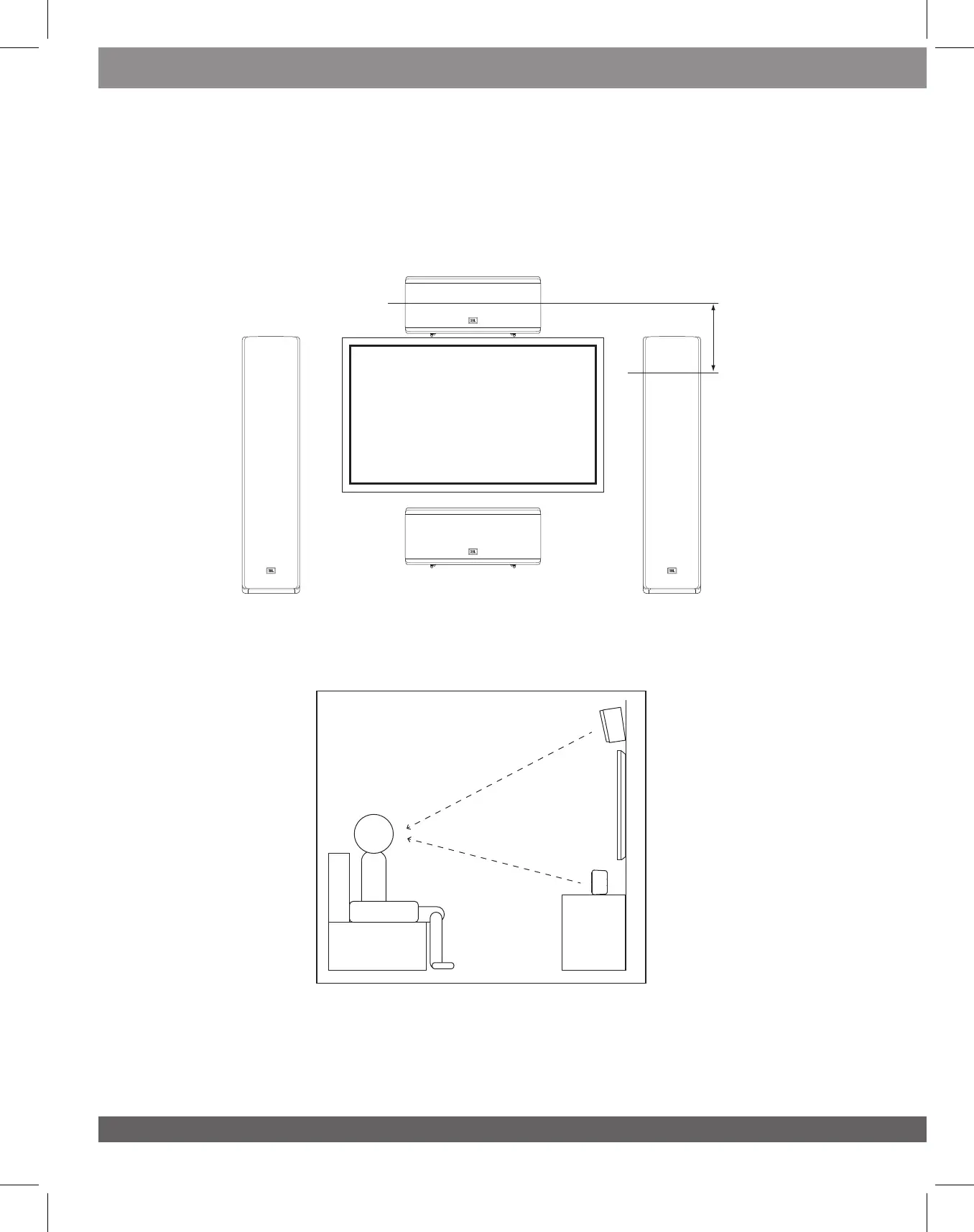

You should place the 625C/665C center speaker directly above or below the center of your TV screen. The center of the
speaker’s horn should be no more than 2 feet (61cm) above or below the centers of the front left and front right
speakers’ horns. If your TV set is deep enough, you can set the center speaker on top of the TV, with the speaker’s
front edge even with the TV’s front edge.
Studio 625C/665C
Center Speaker
Studio
698/690/680/630/620
Front Left Speaker
Studio 698/690
680/630/620
Front Right
Speaker
< 2ft (61cm)
TV
TV
Note: You can place 625C/665C below or above the TV.
Note: For better audio listening performance, please align the center speaker towards your head level position.
STUDIO 625C/665C
