INPUT WIRING
Low-level (RCA) input wiring is preferred for best audio performance. Most trunk and underseat
installations will require a 6-12 feet RCA cable. Always use a high quality cable.
The high level input(s) should only be used when your receiver lacks RCA outputs. If the RCA out-
puts are not present, connect the speaker outputs from the receiver to the high level input connector
of the amplifier. Be sure to observe polarity to avoid audio phase problems.
NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your
amplifier at the same time!
NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your
amplifier at the same time!

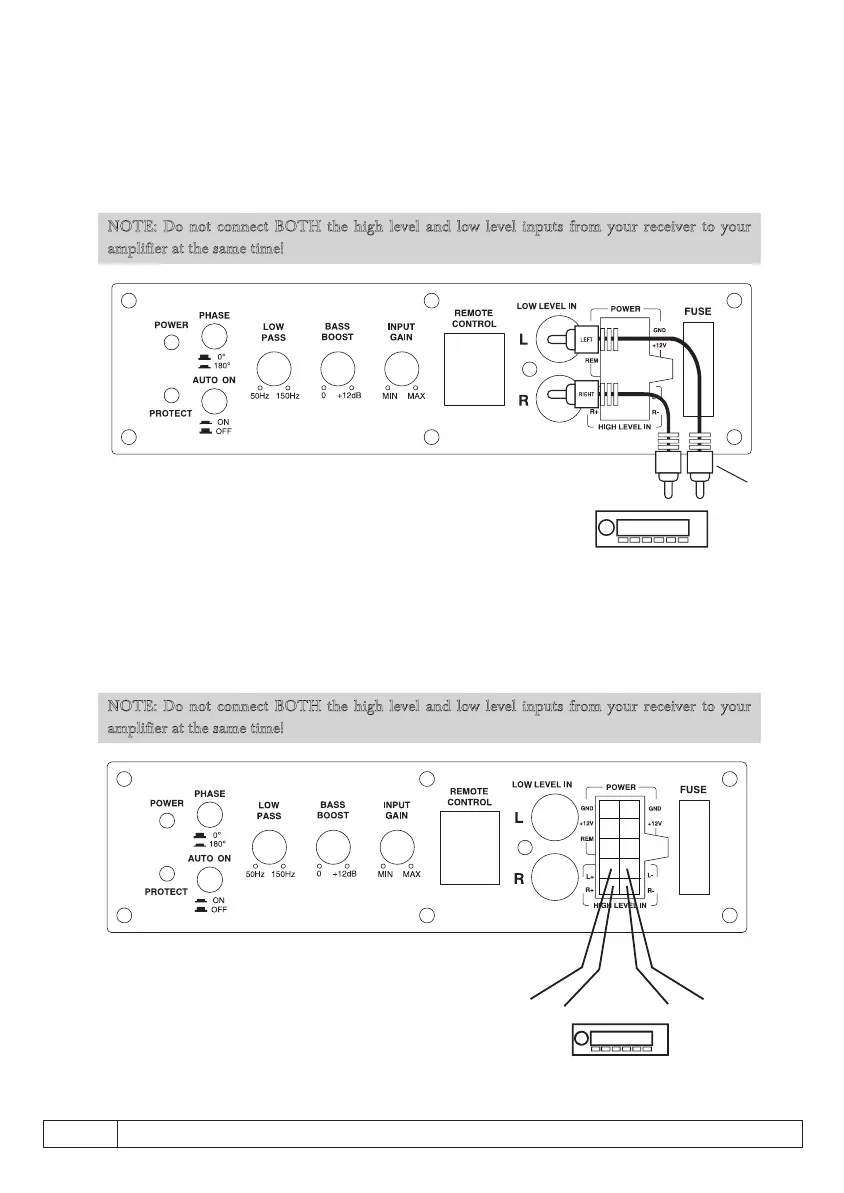

LOW LEVEL INPUT WIRING
HIGH LEVEL INPUT WIRING
Fig.01
Fig.02
To Audio outputs of head
unit or signal processor
RCA cable
(not included)
L+WHITE WHITE/BLACK L-
GREY/BLACK R-
To Speaker Terminals
of head unit
R+GREY
