Harman P42i-TC User Manual

Harman® • P42i Owner’s Manual • 2023 -___ • 03/2323 8742-900A
Service Parts
P42i-TC
Beginning Manufacturing Date: May 2023
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and
Home Technologies does not sell directly to consumers. Provide model number and serial number when
requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM Description COMMENTS PART NUMBER
29.1
Ultra Feeder Weldment 1-10-680021W
Y
29.2
Slide Plate Assembly 1-10-677121A
Y
29.3
Pusher Arm Pillow Block Pkg of 4 3-31-3614087-4
Y
29.4
Gasket, UL Feeder Cover 1-00-677122
Y
29.5 5/16-18 wing screw Pkg of 25 3-30-8012-25
29.6
UL Feeder Pusher Arm 1-10-677187W
Y
29.7
UL Feeder Auger Assembly 3-50-00565
Y
29.8 Cam Block Assembly
1-10-777950A Y
Cam Bearing 3-31-3014 Y
29.9
Motor Mount w/Hardware 1-00-584035
Y
29.10
Pellet Feeder Gear Motor, 4 RPM 3-20-60906
Y
29.11
Bearing Flange w/Hardware 1-00-04035
Y
29.12
Feeder Air Crossover Kit 1-00-67900
Y
9MM Silicone Tube 5 Ft 1-00-511427
Y
29.13
Gasket Ultra Air Intake Pkg of 10 3-44-677160-10
Y
29.14
Pellet Air Intake Assembly 1-10-06810A
29.15
Gasket Feeder Air Intake Pkg of 6 3-44-72224-6
Y
Silicone Cap Pgk of 10 3-99-123/10
Additional service parts on following page.

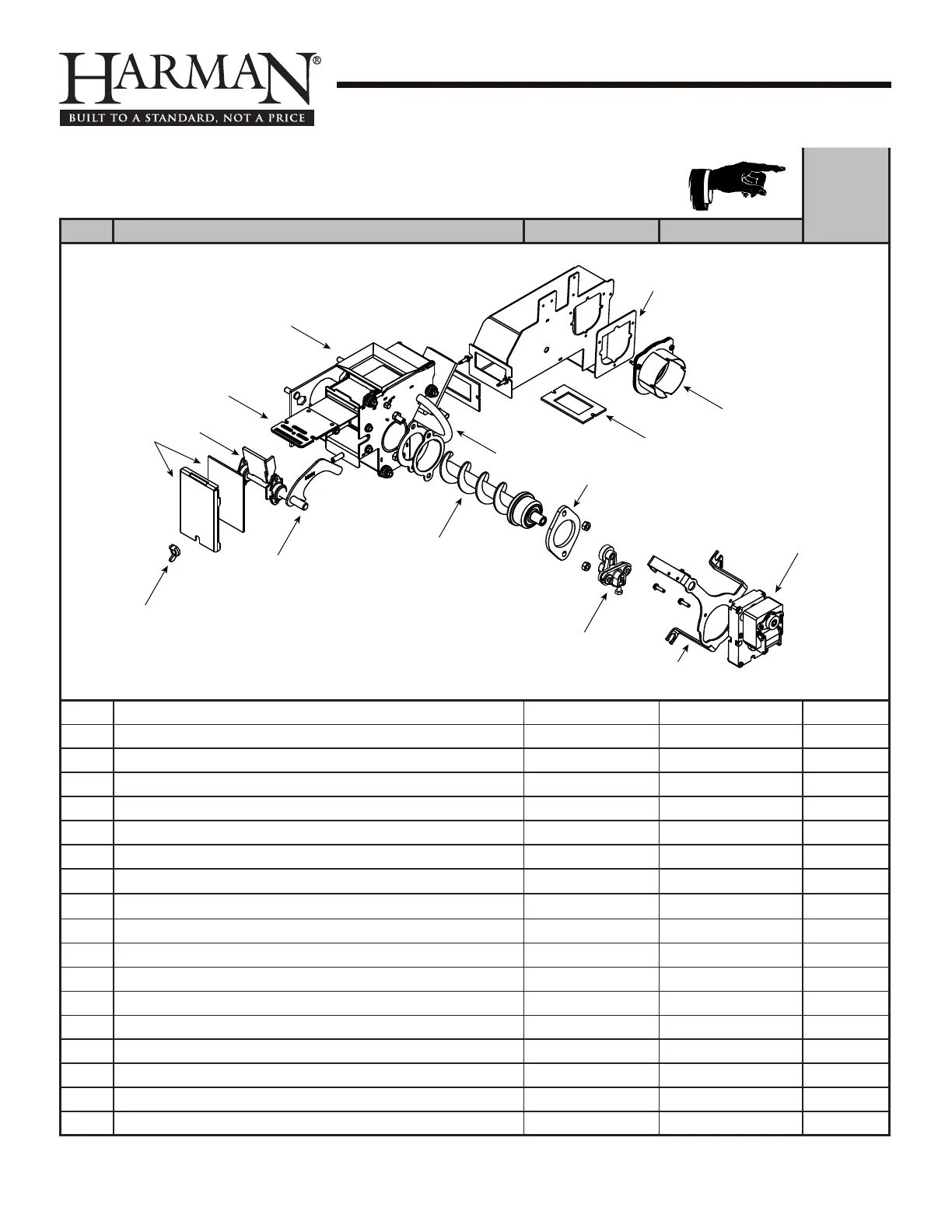

#29 Feeder Assembly
29.1
29.2
29.3
29.4
29.5
29.6
29.7
29.8
29.9
29.10
29.11
29.12
29.13
29.14
29.15
