P43 Pellet Stove
Through the ceiling vent, follow PLvent manufacturers
recommendations when using wall and ceiling pass
through.

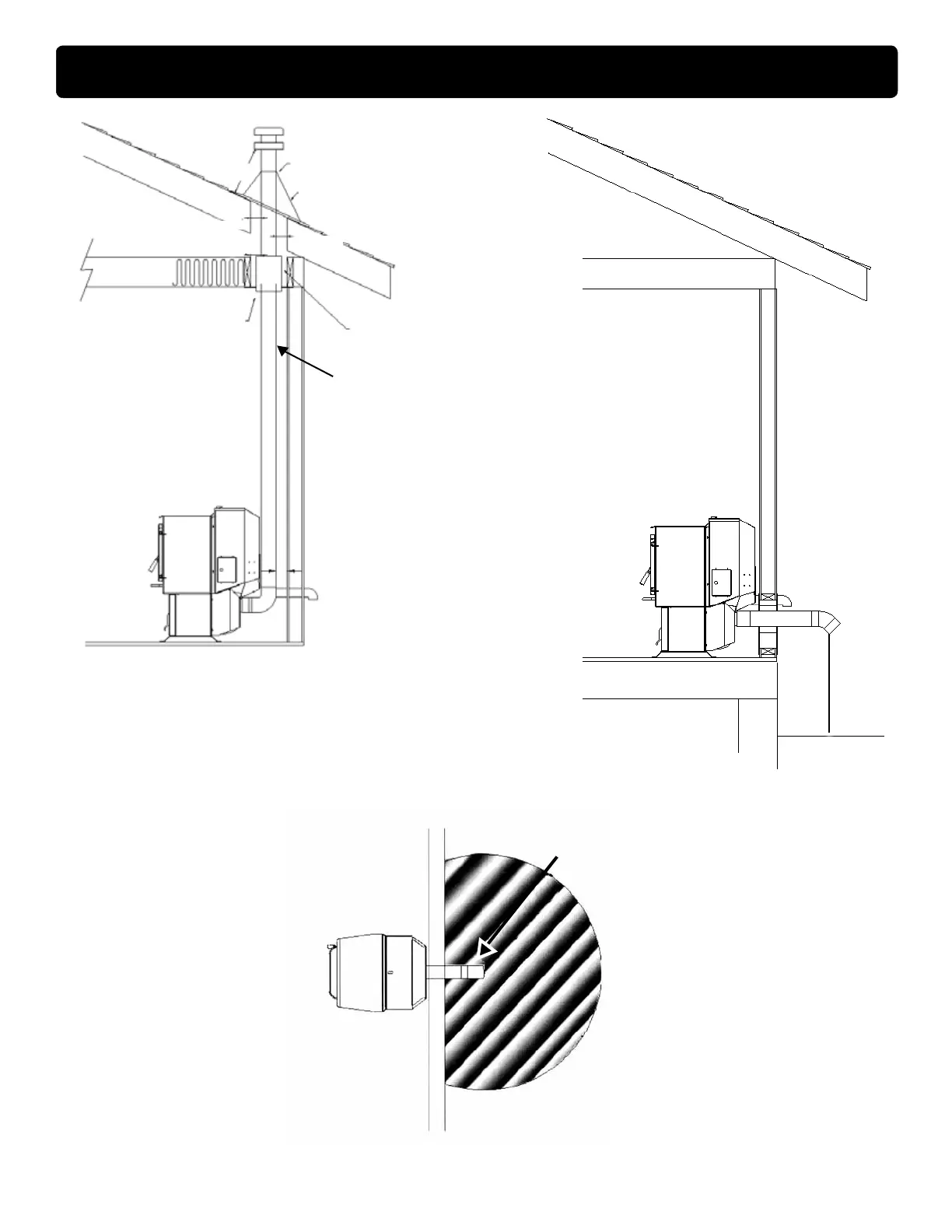

Fig. 14
PL vent manufacturer's
fi r est o p sp ac e r an d
support
(See Page 7 for
corner installation
clearances)
It is required that outside air
be installed with this venting
conguration to reduce smoke
and creosote smell in the room
in the event of power failure.
Min. above ground level
18"
Storm collar
Flashing
3" min.
3" min.
12" min.
3" min.
Fig. 15
3" min.
No insulation or
other combustible
m a t e r i a l s a r e
a l l o w e d w i t h i n
3" of the pe llet
vent pipe. Unless
specified by the
pipe manufacturer
12" min. wall to outlet
36" min clearance to any
combustible material
Fig. 16
