OUTSIDE VEHICLE LIFTS: SECTION 8

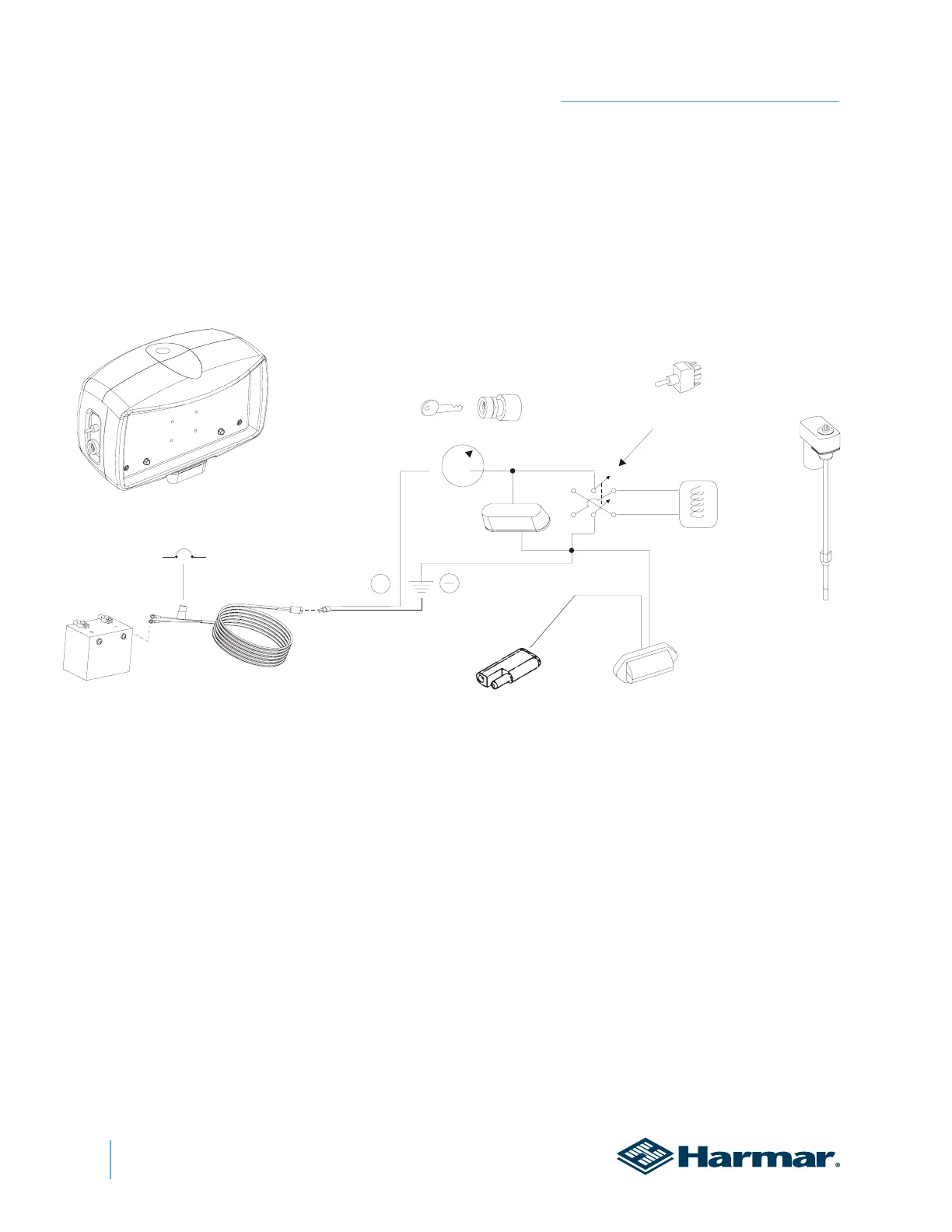

MOTOR COVER WIRING SCHEMATIC

Motor Cover Wiring Schemac
CIRCUIT
BREAKER
BATTERY
VEHICLE HARNESS
KEY SWITCH
LIFT
LIGHT
TRAILER PLUG
MOTOR COVER
LIGHT
ACTUATOR
POLE REVERSING
SWITCH
12 V +
