Harmar Mobility AL560 - Mounting Options

5"-12"
12"-14"
14"-16"
16"-18"
FIND PROPER
ORIENTATION
X
5"-12"
12"-14"
14"-16"
16"-18"
FIND PROPER
ORIENTATION
X
CLASS 2
1/2" Hex
Nyloc Nut
THREADED HOLE
CLASS 3
PINCH
BOLT
TUBE
1/2" Hex
Nyloc Nut
HHCS,
1/2-13x3-1/2or 4""
Presses Hitch Adapter
againstreceiverwall
eliminatingrattles,
andliftmovement
HHCS,
1/2-13x3"
FULLY THREADED
CLASS 2
1/2" Hex
Nyloc Nut
THREADED HOLE
CLASS 3
PINCH
BOLT
TUBE
1/2" Hex
Nyloc Nut
HHCS,
1/2-13x3-1/2or 4""
Presses Hitch Adapter
againstreceiverwall
eliminatingrattles,
andliftmovement
HHCS,
1/2-13x3"
FULLY THREADED
Outside Lifts - Installation & Owner’s Manual 2013
23
Section 2 : inStaller
Installatio n

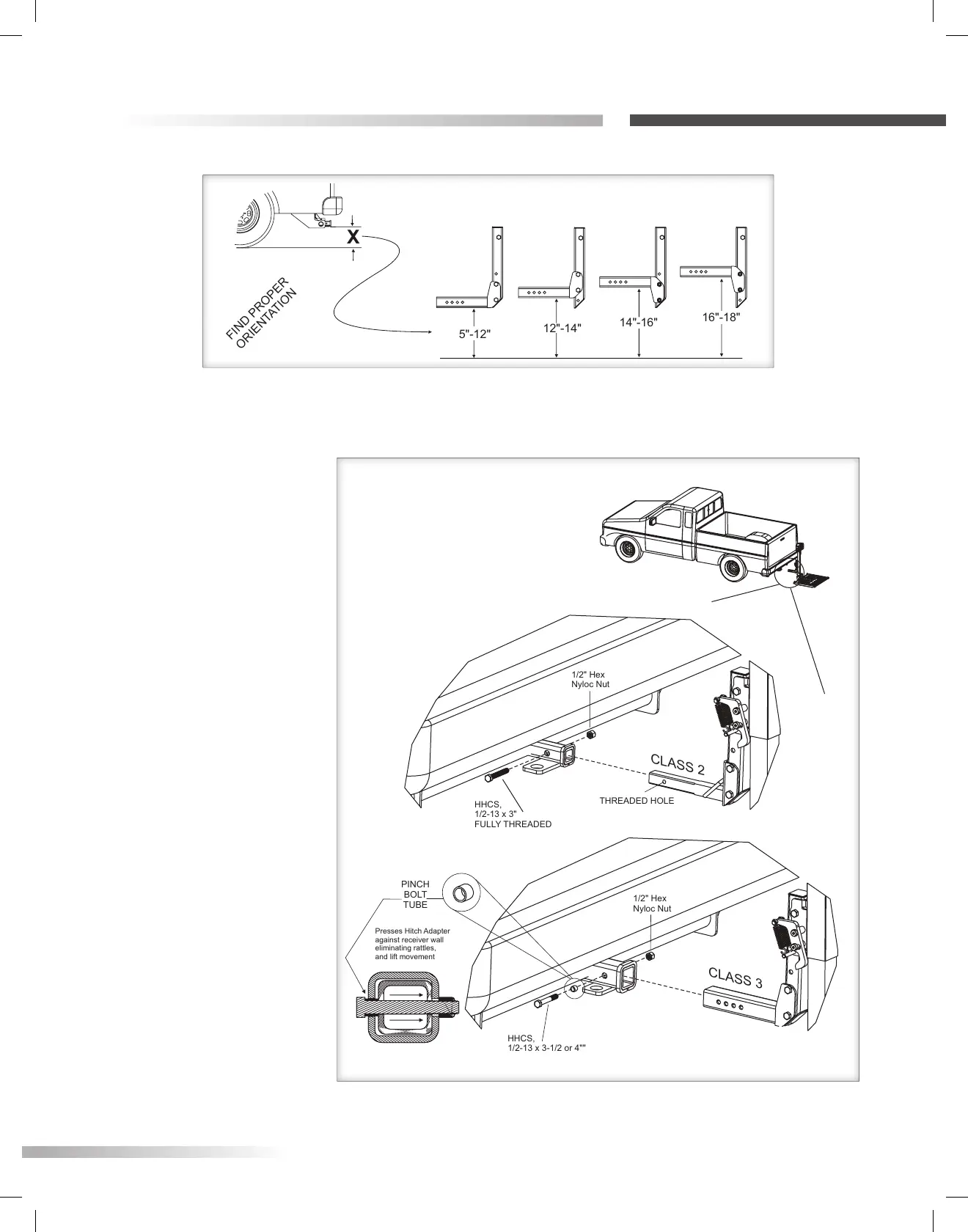

OPTIMIZING HITCH HEIGHT
Figure 23-1
Figure 23-2
INSTALLATION WITH HITCH POST
You can vary the lift height
by changing the Hitch
Adapter’s orientation and
location. This helps you
optimize the vehicle’s
ground clearance to
ensure that the platform
lays flat when it reaches
the end of its travel.
Consult Figure 23-1 to
select the orientation
needed for the vehicle
based on the Hitch
Height, the vehicle’s
hitch receiver distance
to the ground.
Refer to pages 15 & 16
for an overview of the
procedure.
