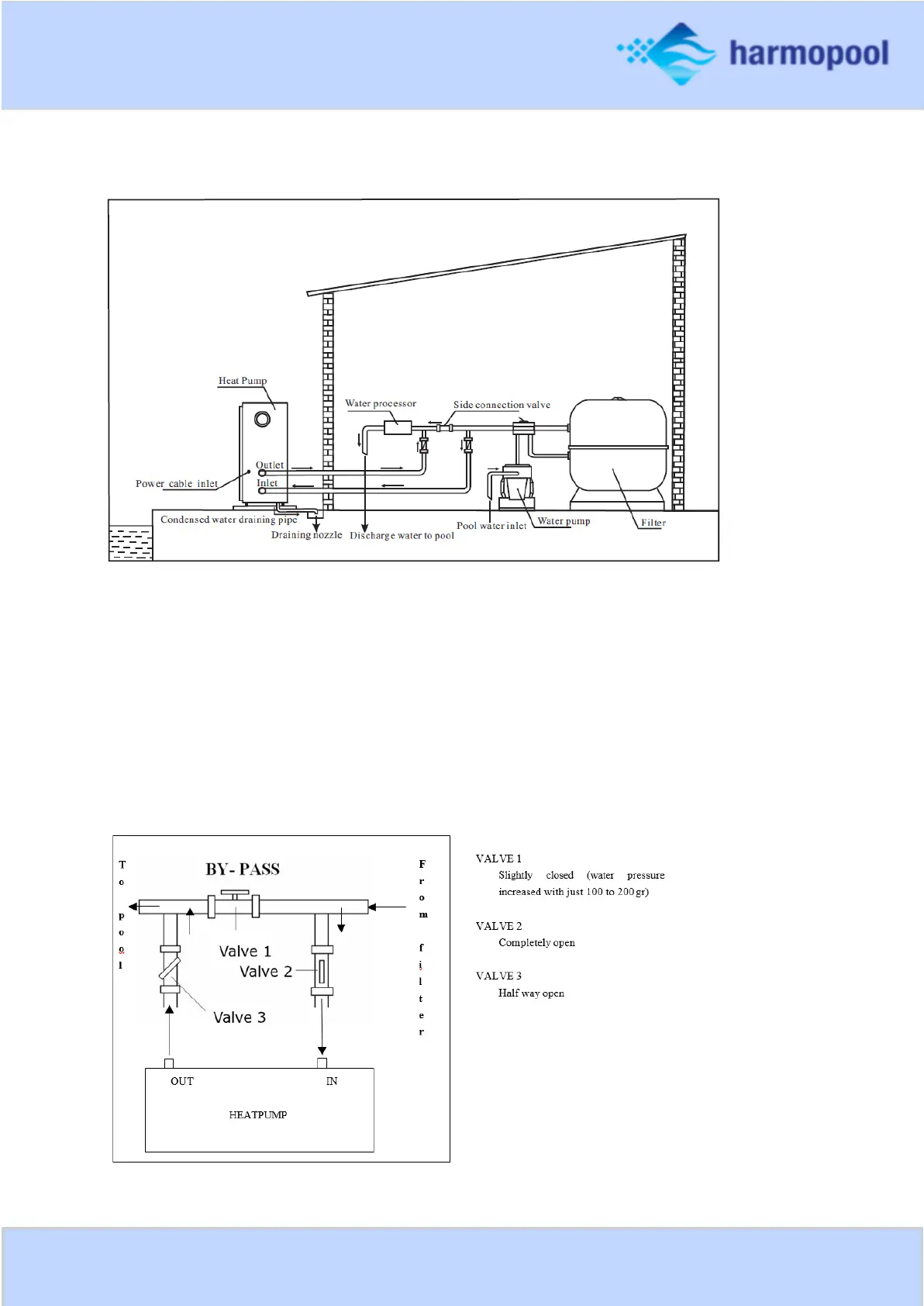

Configuration
Note: the above piping connection is only an example for demonstration.
Installation of the bypass
With the bypass set correctly, your heat pump will deliver its best performance. The
bypass has to be built as shown below:
○
Install the bypass with all 3 valves entirely open
○
Slightly close valve 1
○
Close valve 3 about half way to adjust the refrigerant pressure
