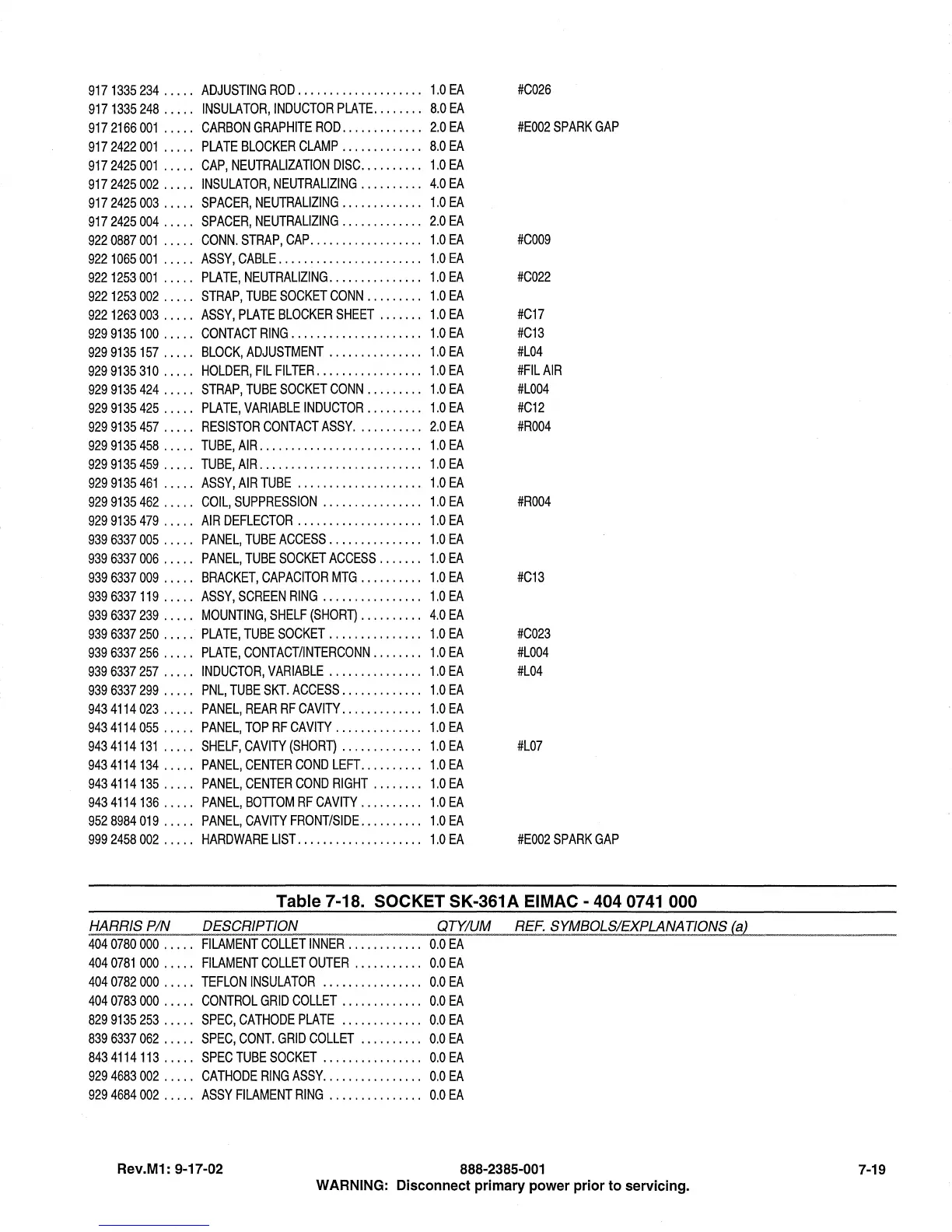

Harris HT 30CD - Page 139

9171335234 ..... ADJUSTING ROD .................... 1.0 EA
9171335248 .... , INSULATOR, INDUCTOR PLATE ........ 8.0 EA
9172166001 ..... CARBON GRAPHITE ROD.. .. .. .. .. ... 2.0 EA
9172422001 ..... PLATE BLOCKER CLAMP ............. 8.0 EA
9172425001 ..... CAP, NEUTRALIZATION DISC .......... 1.0 EA
9172425002 ..... INSULATOR, NEUTRALIZING .......... 4.0 EA
9172425003 ..... SPACER, NEUTRALIZING ............. 1.0 EA
9172425004 ..... SPACER, NEUTRALIZING ............. 2.0 EA
9220887001 ..... CONN. STRAP, CAP .................. 1.0 EA
9221065001 ..... ASSY, CABLE ....................... 1.0 EA
9221253001 ..... PLATE, NEUTRALIZING ............... 1.0 EA
922 1253 002 . . . .. STRAP, TUBE SOCKET CONN. . . . . . . .. 1.0 EA
9221263003 ..... ASSY, PLATE BLOCKER SHEET ....... 1.0 EA
9299135100 ..... CONTACT RING. . . . . . . . .. . . . . . . . . . .. 1.0 EA
9299135157 ..... BLOCK, ADJUSTMENT ............... 1.0 EA
929 9135 310 .. ... HOLDER, FIL FILTER.. .. .. .. .. .. .. ... 1.0 EA
9299135424 .... , STRAP, TUBE SOCKET CONN ......... 1.0 EA
929 9135 425 .. .. . PLATE, VARIABLE INDUCTOR.. .. .. ... 1.0 EA
9299135457 .... , RESISTOR CONTACT ASSY ........... 2.0 EA
929 9135 458 .... , TUBE, AIR.. .. .. .. .. .. .. .. .. .. .. .... 1.0 EA
9299135459 ..... TUBE, AIR .......................... 1.0 EA
9299135461 ..... ASSY,AIRTUBE .................... 1.0EA
929 9135 462 .. ... COIL, SUPPRESSION .. .. .. .. .. .. .... 1.0 EA
9299135479 ..... AIR DEFLECTOR .................... 1.0 EA
9396337005 .. ... PANEL, TUBE ACCESS.. .. .. .. .. .. ... 1.0 EA
939 6337 006 . . . .. PANEL, TUBE SOCKET ACCESS. . . . . .. 1.0 EA
9396337009 . . . .. BRACKET, CAPACITOR MTG . . . . . . . . .. 1.0 EA
939 6337 119 .... , ASSY, SCREEN RING .. .. .. .. .. .. .... 1.0 EA
939 6337 239 .... , MOUNTING, SHELF (SHORT) . . . . . . . . .. 4.0 EA
939 6337 250 . . . . . PLATE, TUBE SOCKET. . . . . . . . . . . . . .. 1.0 EA
9396337256 ..... PLATE, CONTACT/INTERCONN ........ 1.0 EA
9396337257 ..... INDUCTOR, VARIABLE ............... 1.0 EA
939 6337 299 .... , PNL, TUBE SKT. ACCESS.. .. .. .. .. ... 1.0 EA
9434114 023 .. ... PANEL, REAR RF CAVITY .. .. .. .. .. ... 1.0 EA
943 4114 055 .. ... PANEL, TOP RF CAVITY .. .. .. .. .. .... 1.0 EA
9434114131 ..... SHELF, CAVITY (SHORT) .. .. .. .. .. ... 1.0 EA
9434114134 .... , PANEL, CENTER COND LEFT.. ........ 1.0 EA
9434114135 ..... PANEL, CENTER COND RIGHT ........ 1.0 EA
9434114136 ..... PANEL,BOTTOMRFCAVITY .......... tOEA
9528984019 ..... PANEL, CAVITY FRONT/SIDE.. .. .. .... 1.0 EA
9992458002 .. ... HARDWARE LIST.. .. .. .. .. .. .. .. .... 1.0 EA
#C026
#E002 SPARK GAP
#C009
#C022
#C17
#C13
#L04
#FILAIR
#L004
#C12
#R004
#R004
#C13
#C023
#L004
#L04
#L07
#E002 SPARK GAP
Table 7·18. SOCKET SK·361A EIMAC ·4040741 000
HARRIS PIN DESCRIPTION QTYIUM REF. SYMBOLS/EXPLANATIONS (a)
404 0780 000 . . . .. FILAMENT COLLET INNER. . . . . . . . . . .. 0.0 EA
4040781 000 . . . .. FILAMENT COLLET OUTER . . . . . . . . . .. 0.0 EA
4040782000 ..... TEFLON INSULATOR ................ 0.0 EA
404 0783 000 .... , CONTROL GRID COLLET ...... .. .. ... 0.0 EA
8299135253 .... , SPEC, CATHODE PLATE ............. 0.0 EA
839 6337 062 . . . .. SPEC, CONT. GRID COLLET .......... 0.0 EA
8434114 113 .. ... SPEC TUBE SOCKET ................ 0.0 EA
9294683002 .. ... CATHODE RING ASSY.. .. .. .. .. .. .... 0.0 EA
929 4684 002 .. ... ASSY FILAMENT RING .. .. .. .. .. .. ... 0.0 EA
