Harris HT 30CD - Page 140

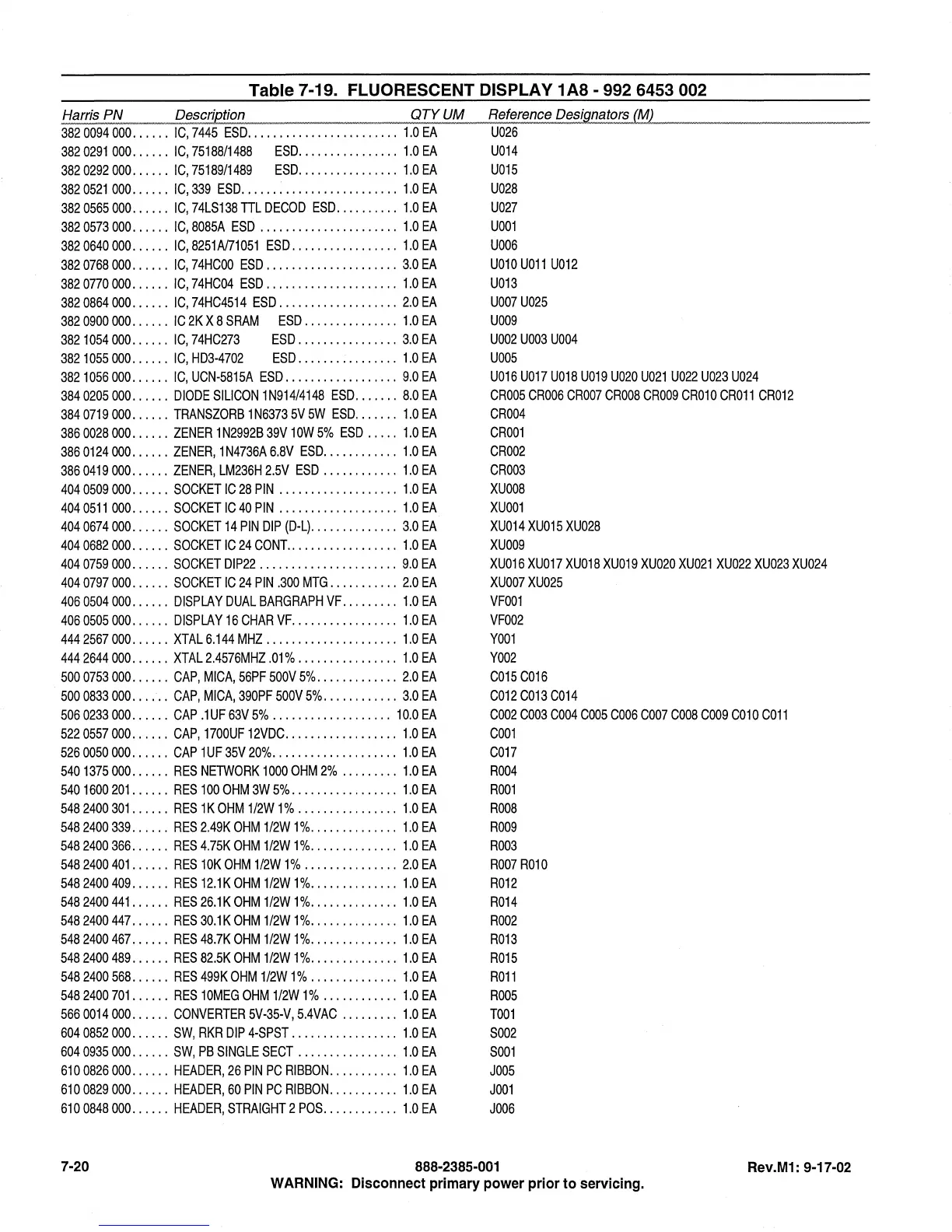

Table 7-19. FLUORESCENT DISPLAY 1A8 - 9926453002
Harris PN Descrietion QTY UM
3820094000 ...... IC,7445 ESD ........................ 1.0 EA
3820291000 ...... IC,75188/1488 ESD ................ 1.0 EA
3820292000 ...... IC,75189/1489 ESD ................ 1.0 EA
3820521000 ...... IC,339 ESD ......................... 1.0 EA
3820565000 ...... IC, 74LS138 TIL DECOD ESD .......... tOEA
382 0573 000.. .... IC, 8085A ESD .... .. .. .. .. .. .. .. .... 1.0 EA
3820640000 ...... IC,8251A!71051 ESD ................. 1.0 EA
3820768000 ...... IC,74HCOO ESD ..................... 3.0 EA
3820770000 ...... IC,74HC04 ESD ..................... 1.0 EA
3820864000 ...... IC,74HC4514 ESD ................... 2.0 EA
382 0900 000 ...... IC 2K X 8 SRAM ESD . . . . . . . . . . . . . .. 1.0 EA
3821054000 ...... IC,74HC273 ESD ................ 3.0 EA
382 1055 000 ...... IC, HD3-4702 ESD.. .. .. .. .. .. .... 1.0 EA
3821056000 ...... IC,UCN-5815A ESD .................. 9.0EA
3840205 000 ...... DIODE SILICON 1 N914/4148 ESD ....... 8.0 EA
384 0719 000 ...... TRANSZORB 1 N6373 5V 5W ESD. . . . . .. 1.0 EA
386 0028 000. . . . .. ZENER 1 N2992B 39V 10W 5% ESD . . . .. 1.0 EA
386 0124 000 ...... ZENER, 1 N4736A 6.8V ESD...... .. .... 1.0 EA
386 0419 000. . . . . . ZENER, LM236H 2.5V ESD . . . . . . . . . . .. 1.0 EA
4040509000 ...... SOCKET IC 28 PIN ................... 1.0 EA
4040511 000 ...... SOCKET IC 40 PIN . . . . . . . . . . . . . . . . . .. 1.0 EA
4040674000 ...... SOCKET 14 PIN DIP (D-L) .............. 3.0 EA
404 0682 000 ...... SOCKET IC 24 CONT.. . . . . . . . . . . . . . . .. 1.0 EA
404 0759 000 ...... SOCKET DIP22 ...................... 9.0 EA
4040797000 ...... SOCKET IC 24 PIN .300 MTG ........... 2.0 EA
4060504000 ...... DISPLAY DUAL BARGRAPH VF ......... 1.0 EA
4060505 000. . . . . . DISPLAY 16 CHAR VF. . . . . . . . . . . . . . . .. 1.0 EA
4442567000 ...... XTAL 6.144 MHZ ..................... 1.0 EA
4442644000 ...... XTAL 2.4576MHZ .01 % ................ 1.0 EA
5000753000 ...... CAP, MICA, 56PF 500V 5% ............. 2.0 EA
5000833000 ...... CAP, MICA, 390PF 500V 5% ............ 3.0 EA
5060233000 ...... CAP .1UF 63V 5% ................... 10.0 EA
5220557000 ...... CAP, 1700UF 12VDC .................. 1.0 EA
5260050000 ...... CAP 1UF 35V 20% .................... 1.0 EA
5401375000 ...... RES NETWORK 1000 OHM 2% ......... 1.0 EA
5401600201 ...... RES 100 OHM 3W 5% ................. 1.0 EA
548 2400 301 ...... RES 1 K OHM 1/2W 1 % . .. . .. . .. . .. .. .. 1.0 EA
5482400339 ...... RES 2.49K OHM 1/2W 1 % .............. 1.0 EA
548 2400 366 ...... RES 4.75K OHM 1/2W 1 %. . . . . . . . . . . . .. 1.0 EA
5482400401 ...... RES 10K OHM 1/2W 1% ............... 2.0 EA
5482400409 ...... RES12.1KOHM1/2W1% .............. 1.0EA
5482400441 ...... RES 26.1K OHM 1/2W 1% .............. 1.0 EA
5482400447 ...... RES 30.1K OHM 1/2W 1% .............. 1.0 EA
5482400467 ...... RES 48.7K OHM 1/2W 1 % .............. 1.0 EA
5482400489 ...... RES 82.5K OHM 1/2W 1 % .............. 1.0 EA
548 2400 568 ...... RES 499K OHM 1/2W 1 % . . . . . . . . . . . . .. 1.0 EA
5482400701 ...... RES 10MEG OHM 1/2W 1% ............ 1.0 EA
5660014000 ...... CONVERTER 5V-35-V, 5.4VAC ......... 1.0 EA
604 0852 000 ...... SW, RKR DIP 4-SPST . . . . . . . . . . . . . . . .. 1.0 EA
6040935000 ...... SW, PB SINGLE SECT ................ 1.0 EA
6100826 000 ...... HEADER, 26 PIN PC RIBBON. . . . . . . . . .. 1.0 EA
6100829 000 ...... HEADER, 60 PIN PC RIBBON. . . . . . . . . .. 1.0 EA
6100848000 ...... HEADER, STRAIGHT 2 POS ............ 1.0 EA
Reference Designators (M2
U026
U014
U015
U028
U027
U001
U006
U010 U011 U012
U013
U007
U025
U009
U002
U003 U004
U005
U016
U017 U018 U019 U020 U021 U022 U023 U024
CR005 CR006 CR007 CR008 CR009 CR010 CR011 CR012
CR004
CR001
CR002
CR003
XU008
XU001
XU014 XU015 XU028
XU009
XU016
XU017 XU018 XU019 XU020 XU021 XU022 XU023 XU024
XU007XU025
VF001
VF002
Y001
Y002
C015 C016
C012 C013 C014
C002 C003 C004 C005 C006 C007 C008 C009 C010 C011
C001
C017
R004
R001
R008
R009
R003
R007 R010
R012
R014
R002
R013
R015
R011
R005
TOO 1
S002
S001
J005
J001
J006
