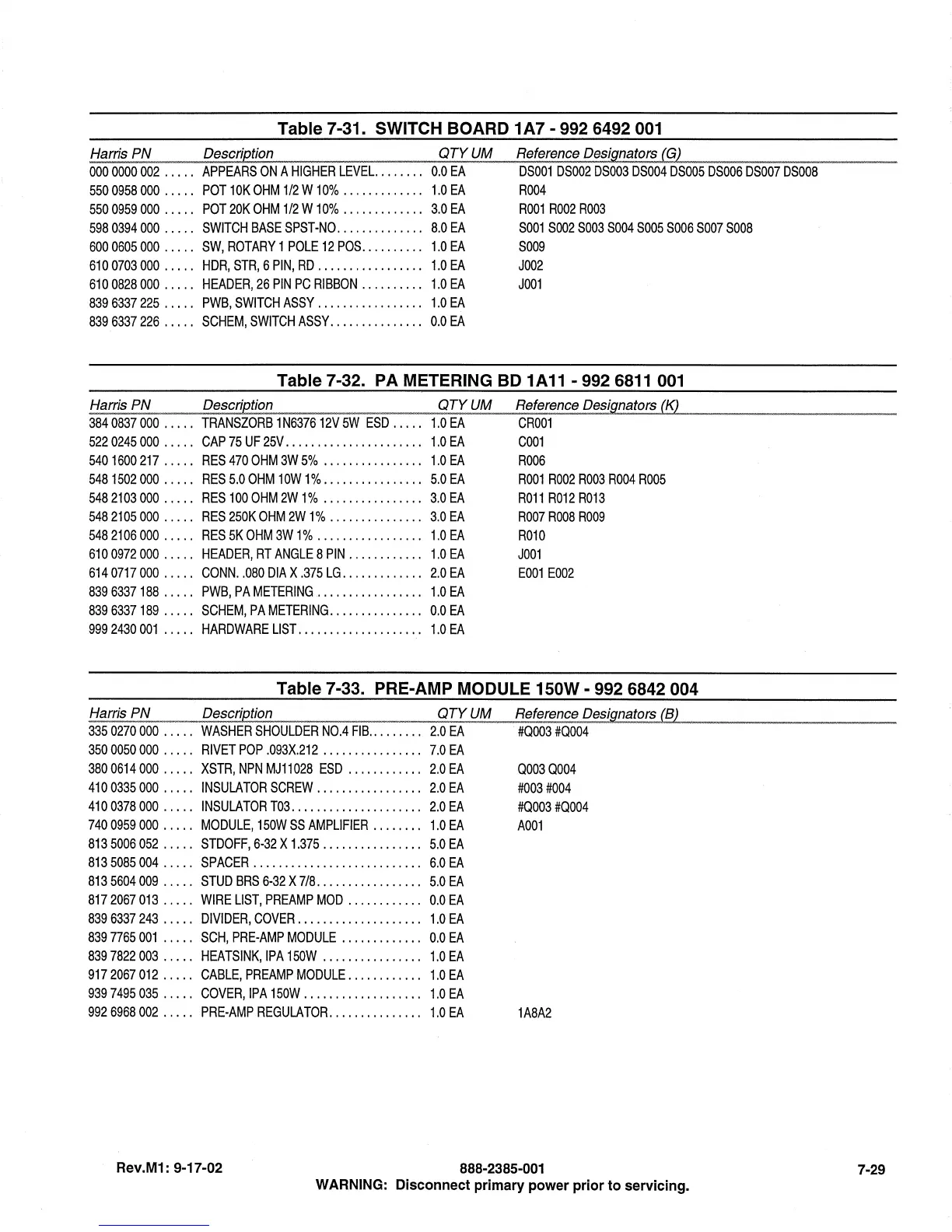

Table 7-31. SWITCH BOARD 1A7 - 9926492001
Harris PN __ Description OTY UM
0000000002 . . . .. APPEARS ON A HIGHER LEVEL. . . . . . .. 0.0 EA
5500958000 ..... POT 10K OHM 1/2 W 10% .. .. .. .. .. ... 1.0 EA
5500959000 ..... POT 20K OHM 1/2 W 10% ............. 3.0 EA
5980394000 ..... SWITCH BASE SPST-NO .............. 8.0 EA
6000605000 ..... SW, ROTARY 1 POLE 12 POS .......... 1.0 EA
6100703000 ..... HDR, STR, 6 PIN, RD ................. 1.0 EA
6100828000 ..... HEADER, 26 PIN PC RIBBON .......... 1.0 EA
839 6337 225 . . . .. PWB, SWITCH ASSY . . . . . . . . . . . . . . . .. 1.0 EA
839 6337 226 . . . .. SCHEM, SWITCH ASSY. . . . . . . . . . . . . .. 0.0 EA
Reference Designators (G2
DS001 DS002 DS003 DS004 DS005 DS006 DS007 DS008
R004
R001 R002 R003
S001 S002 S003 SOO4 S005 S006 S007 S008
S009
J002
J001
Table 7-32. PA METERING BD 1A11 - 992 6811 001
Harris PN Description OTY UM Reference Designators (19
3840837000 .. ... TRANSZORB 1 N6376 12V 5W ESD .. ... 1.0 EA CR001
522 0245 000 .. ... CAP 75 UF 25V .. .. .. .. .. .. .. .. .. .... 1.0 EA C001
540 1600 217 ..... RES 470 OHM 3W 5% ...... .. .. .. .... 1.0 EA R006
5481502000 ..... RES 5.0 OHM 10W 1% ................ 5.0 EA R001 R002 R003 R004 R005
5482103000 ..... RES 100 OHM 2W 1% ................ 3.0 EA R011 R012 R013
548 2105 000 .. ... RES 250K OHM 2W 1 % .. .. .. .. .. .. ... 3.0 EA R007 R008 R009
5482106000 ..... RES 5K OHM 3W 1% ................. 1.0 EA R010
6100972000 ..... HEADER, RT ANGLE 8 PIN.. .. .. .. .... 1.0 EA J001
6140717000 ..... CONN .. 080 DIA X .375 LG ............. 2.0 EA E001 E002
8396337188 ..... PWB, PA METERING ................. 1.0 EA
8396337189 .. ... SCHEM, PA METERING.. .. .. .. .. .. ... 0.0 EA
999 2430 001 ..... HARDWARE LIST. . . . . . . . . . . . . . . . . . .. 1.0 EA
Table 7-33. PRE-AMP MODULE 150W - 992 6842 004
Harris PN Description OTY UM Reference Designators (82
3350270000 . . . .. WASHER SHOULDER NO.4 FIB.. . . . . . .. 2.0 EA . #0003 #0004
3500050000 ..... RIVET POP .093X.212 ................ 7.0 EA
380 0614 000 . . . .. XSTR, NPN MJ11 028 ESD ........ . . .. 2.0 EA 00030004
4100335000 ..... INSULATOR SCREW ................. 2.0 EA #003 #004
4100378000 ..... INSULATOR T03 ..................... 2.0 EA #0003 #0004
7400959000 ..... MODULE, 150W SS AMPLIFIER ........ 1.0 EA A001
8135006052 ..... STDOFF, 6-32 X 1.375 ................ 5.0 EA
8135085004 ..... SPACER ........................... 6.0 EA
8135604009 .. ... STUD BRS 6-32 X 7/8.. .. .. .. .. .. .. ... 5.0 EA
8172067013 ..... WIRE LIST, PREAMP MOD ............ 0.0 EA
839 6337 243 . . . .. DIVIDER, COVER. . . . . . . . . . . . . . . . . . .. 1.0 EA
839 7765 001 ..... SCH, PRE-AMP MODULE .. .. .. .. .. ... 0.0 EA
8397822003 ..... HEATSINK,IPA 150W ................ 1.0 EA
917 2067 012 ..... CABLE, PREAMP MODULE ......... '" 1.0 EA
9397495035 ..... COVER, IPA 150W ................... 1.0 EA
9926968002 ..... PRE-AMP REGULATOR ............... 1.0 EA 1A8A2
Rev.M1: 9-17-02
888-2385-001
WARNING: Disconnect primary power prior to servicing.
7-29
