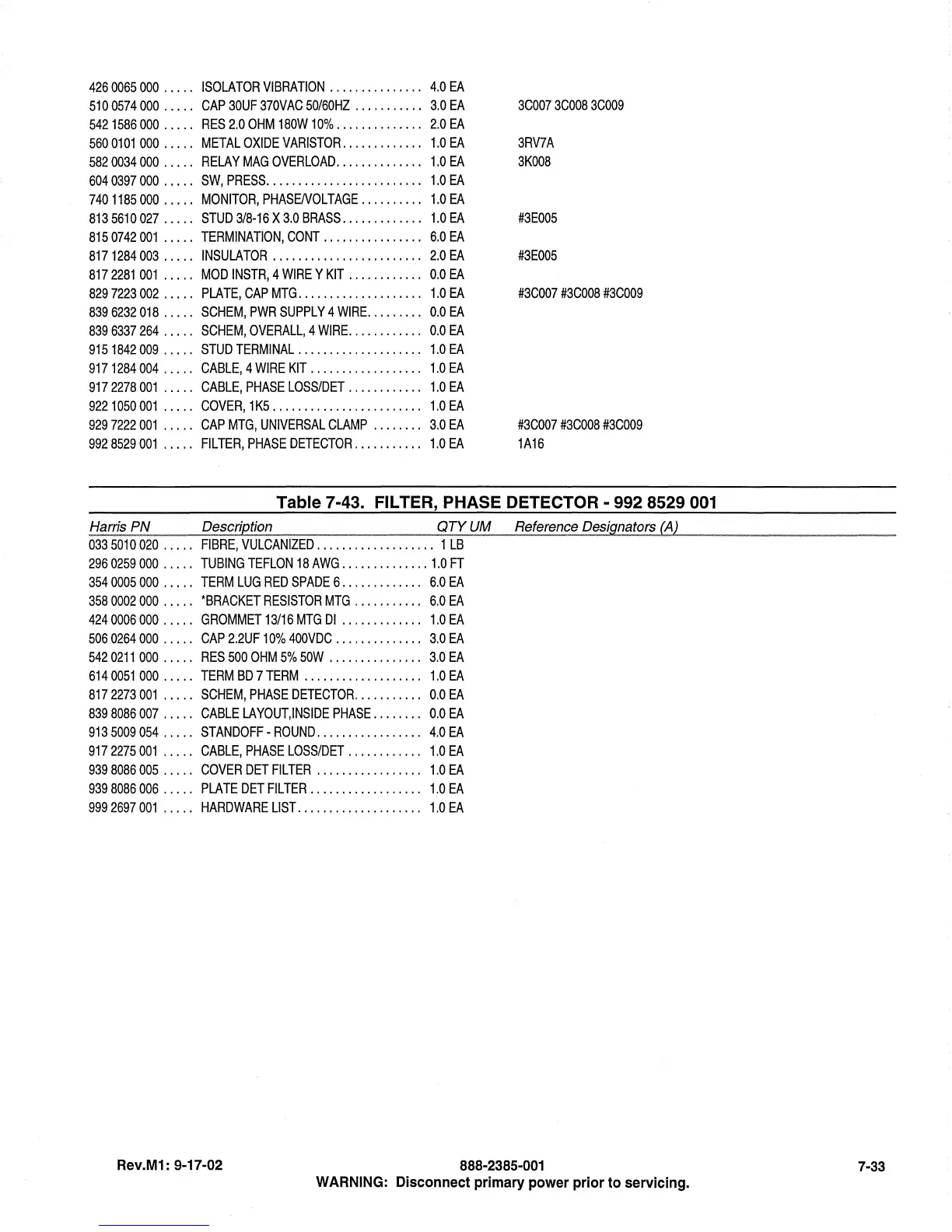

4260065000 .... , ISOLATOR VIBRATION. . . . . . . . . . . . . .. 4.0 EA
5100574000 ..... CAP 30UF 370VAC 50/60HZ ........... 3.0 EA
5421586000 ..... RES 2.0 OHM 180W 10% .............. 2.0 EA
5600101 000 ..... METAL OXIDE VARISTOR. . . . . . . . . . . .. 1.0 EA
5820034000 ..... RELAY MAG OVERLOAD .............. 1.0 EA
6040397000 .... , SW, PRESS. . . . . . . . . . . . . . . . . . . . . . . .. 1.0 EA
7401185000 ..... MONITOR, PHASEIVOLTAGE .......... 1.0 EA
8135610027 . . . .. STUD 3/8-16 X 3.0 BRASS. . . . . . . . . . . .. 1.0 EA
8150742001 ..... TERMINATION, CONT ................ 6.0 EA
8171284003 .... , INSULATOR ........................ 2.0 EA
8172281001 ..... MOD INSTR, 4 WIRE Y KIT ............ 0.0 EA
829 7223 002 . . . . . PLATE, CAP MTG. . . . . . . . . . . . . . . . . . .. 1.0 EA
8396232018 ..... SCHEM, PWR SUPPLY 4 WIRE ......... 0.0 EA
839 6337 264 . . . .. SCHEM, OVERALL, 4 WIRE. . . . . . . . . . .. 0.0 EA
9151842009 .... , STUD TERMINAL .................... 1.0 EA
9171284004 ..... CABLE, 4 WIRE KIT .................. 1.0 EA
9172278001 ..... CABLE, PHASE LOSS/DET ............ 1.0 EA
9221050001 ..... COVER, 1K5 ........................ 1.0 EA
929 7222 001 ..... CAP MTG, UNIVERSAL CLAMP ........ 3.0 EA
9928529 001 ..... FILTER, PHASE DETECTOR. . . . . . . . . .. 1.0 EA
3C007 3C008 3C009
3RV7A
3K008
#3E005
#3E005
#3C007 #3C008 #3C009
#3C007 #3C008 #3C009
1A16
Table 7-43. FILTER, PHASE DETECTOR - 992 8529 001
Harris PN Description OTY UM Reference Desig,nators CA)
0335010020 ..... FIBRE, VULCANIZED ................... 1 LB
2960259000 ..... TUBING TEFLON 18 AWG .............. 1.0 FT
354 0005 000 . . . .. TERM LUG RED SPADE 6. . . . . . . . . . . .. 6.0 EA
358 0002 000 . . . .. 'BRACKET RESISTOR MTG . . . . . . . . . .. 6.0 EA
4240006000 .... , GROMMET 13/16 MTG DI ............. 1.0 EA
5060264000 ..... CAP 2.2UF 10% 400VDC .............. 3.0 EA
542 0211 000 . . . .. RES 500 OHM 5% 50W . . . . . . . . . . . . . .. 3.0 EA
6140051000 ..... TERM BD 7TERM ................... 1.0 EA
8172273001 ..... SCHEM, PHASE DETECTOR. .......... 0.0 EA
8398086007 ..... CABLE LAYOUT,INSIDE PHASE ........ 0.0 EA
9135009054 .... , STANDOFF - ROUND ................. 4.0 EA
9172275 001 ..... CABLE, PHASE LOSS/DET . . . . . . . . . . .. 1.0 EA
939 8086 005 . . . .. COVER DET FILTER ... . . . . . . . . . . . . .. 1.0 EA
939 8086 006 . . . . . PLATE DET FILTER. . . . . . . . . . . . . . . . .. 1.0 EA
9992697001 ..... HARDWARE LIST. . . . . . . . . . . . . . . . . . .. 1.0 EA
Rev.M1: 9-17-02
888-2385-001
WARNING: Disconnect primary power prior to servicing.
7-33
