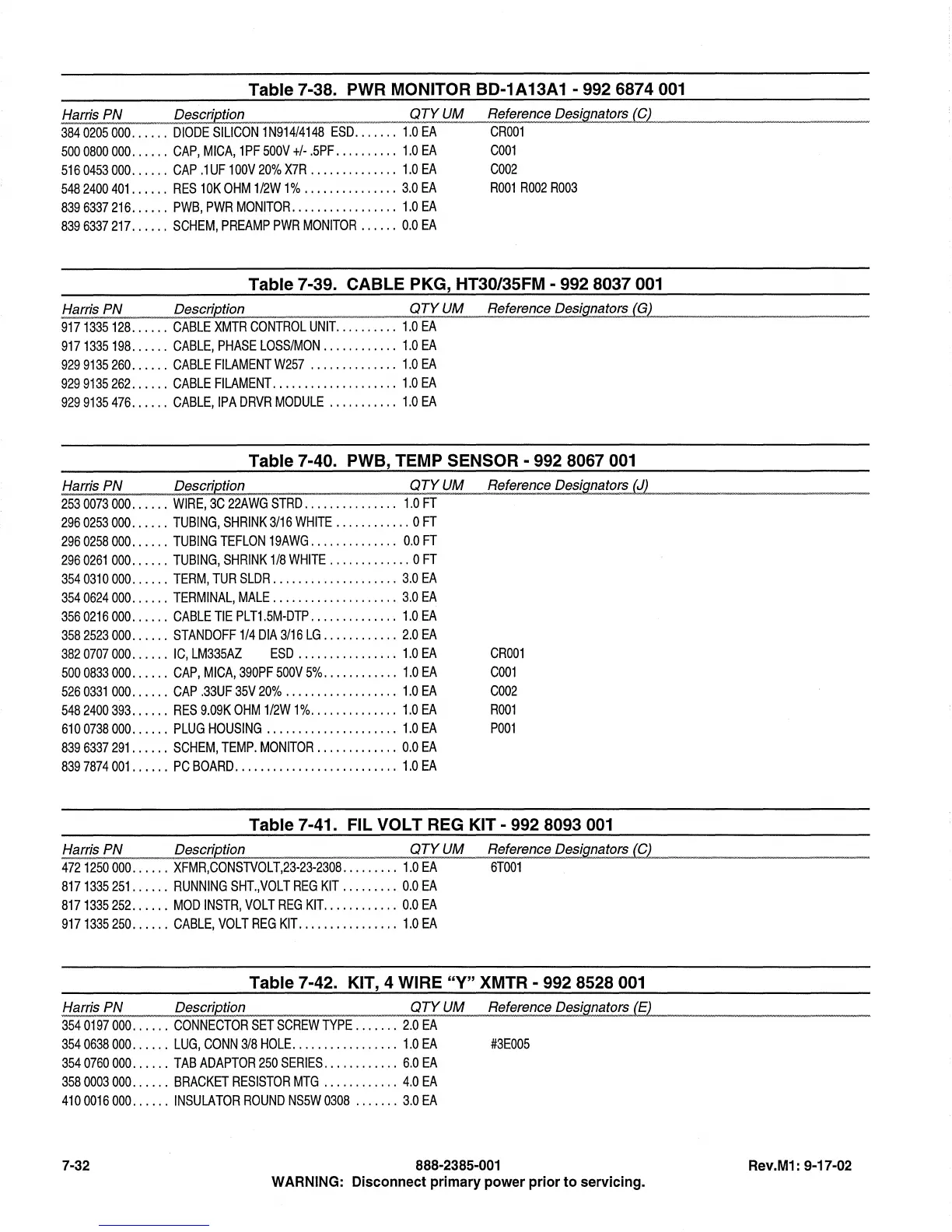

Harris HT 30CD - Page 152

Table 7-38. PWR MONITOR BD-1A13A1 - 992 6874 001
Harris PN Q!.scrippon ~_._._"_""" __ QIr~,,f1eference Des!fl!!f!Jors Jf2~_~
3840205000 ...... DIODESILlCON1N914/4148 ESD ....... toEA CR001
5000800000 ..... , CAP, MICA, 1PF 500V +1- .5PF ... , , , , ... 1,0 EA
5160453000, ..... CAP .1UF 100V 20% X7R ....... , ...... 1.0 EA
5482400401 ...... RES 10K OHM 1/2W 1% .............. , 3,0 EA
839 6337 216 ..... , PWB, PWR MONITOR .......... , . , , . .. 1.0 EA
8396337217 ..... , SCHEM, PREAMP PWR MONITOR ..... , 0.0 EA
C001
C002
R001 R002 R003
Table 7-39. CABLE PKG, HT30/35FM - 992 8037 001
f:larri.~ __ ~ ___ .,. __ qTY UM Reference De~Js.nat0!2.lQL_. ___ . ____ , __ w __ _
9171335128 ...... CABLE XMTR CONTROL UNIT ... " ..... 1.0 EA
9171335198 ...... CABLE, PHASE LOSSIMON .. , , . , . , .... 1.0 EA
929 9135 260 ..... , CABLE FILAMENT W257 .. , .... , . . . . .. 1.0 EA
9299135262 ..... , CABLE FILAMENT .................... 1.0 EA
9299135476 ...... CABLE, IPA DRVR MODULE ........... 1.0 EA
Table 7-40. PWB, TEMP SENSOR - 992 8067 001
fjarris P~e.§!j£tion __ _ . ......Q"[YJ!~_FJeference DesiflnE!..t0(~L ____ ,, ___ • ___ ~
2530073000 .. _ ... WIRE, 3C 22AWG STRD ...... '. , . , , ... 1.0 FT
2960253000 ..... , TUBING, SHRINK 3/16 WHITE. , ..... , ... ,OFT
2960258000 .... , . TUBING TEFLON 19AWG ... , , ...... , .. 0.0 FT
2960261000 ... , .. TUBING, SHRINK 1/8 WHITE, .. , , .... , , .. 0 FT
3540310000, ..... TERM, TUR SLDR .................... 3.0 EA
3540624000 ...... TERMINAL, MALE ........... , ........ 3.0 EA
3560216000 .... ,. CABLE TIE PLT1,5M-DTP, .. , _., .... ',. 1,0 EA
3582523000, ..... STANDOFF 1/4 DIA 3/16 LG ..... , , .... , 2.0 EA
382 0707 000.. .... IC, LM335AZ ESD .. .. . .. .. . .. .... 1.0 EA CR001
500 0833 000 ...... CAP, MICA, 390PF 500V 5% ..... , , . , . .. 1,0 EA C001
526 0331 000, ..... CAP .33UF 35V 20% ........ , , . . . . . . .. 1,0 EA C002
5482400393 ...... RES 9.09K OHM 1/2W 1%, , . , , . , ....... 1.0 EA R001
6100738000 ...... PLUG HOUSING ..................... 1.0 EA P001
8396337291 ...... SCHEM, TEMP. MONITOR. , , . , ...... ,. 0,0 EA
839 7874 001 ...... PC BOARD ......................... , 1.0 EA
Table 7-41. FIL VOLT REG KIT - 992 8093 001
Harris PN ____ pescrie!ion _ QTY UM Reference D~natorsf!2L_
472 1250 000 ...... XFMR,CONSTVOL T,23-23-2308 .. , ..... , 1.0 EA 6T001
8171335251 ...... RUNNING SHT.,VOLT REG KIT, ........ 0.0 EA
8171335252 ...... MOD INSTR, VOLT REG KIT, ........... 0.0 EA
917 1335 250 ...... CABLE, VOLT REG KIT. . . . . . . . . . . . . . .. 1.0 EA
Table 7-42. KIT, 4 WIRE "Y" XMTR - 992 8528 001
f1ar[£s PN _______ De~!ie!ion _ """,,_,oTY UM .•• Re!!!!ence De£!fl!2.~<?!~JEL-. __ ,, _______ ~. ___ _
354 0197 000 _ .... _ CONNECTOR SET SCREW TYPE _ ...... 2.0 EA
3540638000 ...... LUG, CONN 3/8 HOLE ................. 1.0 EA #3 E005
354 0760 000 ... , .. TAB ADAPTOR 250 SERIES ............ 6.0 EA
358 0003 000 ...... BRACKET RESISTOR MTG ............ 4.0 EA
4100016000 ...... INSULATOR ROUND NS5W 0308 ....... 3.0 EA
7-32 888-2385-001
Rev.M1: 9-17-02
WARNING: Disconnect primary power prior to servicing.
