Harris HT 35CD - Page 122

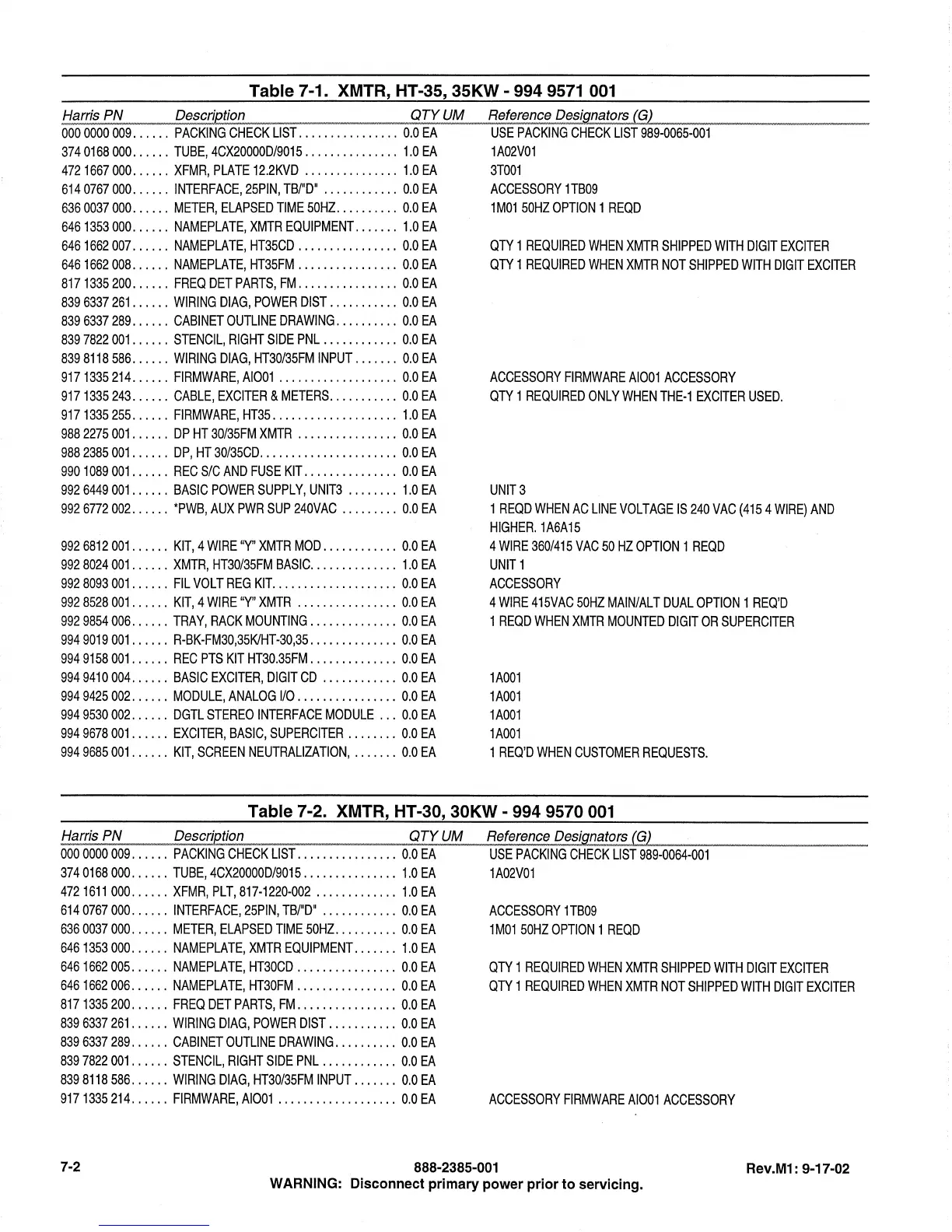

Table 7-1. XMTR, HT-35, 35KW - 994 9571 001
Harris PN Description QTY UM
0000000009 ...... PACKING CHECK LIST ................ 0.0 EA
374 0168 000 ...... TUBE, 4CX20000D/9015 . . . . . . . . . . . . . .. 1.0 EA
4721667000 ...... XFMR, PLATE 12.2KVD ............... 1.0 EA
6140767000 ...... INTERFACE, 25PIN, TBI"D" ............ 0.0 EA
6360037000 ...... METER, ELAPSED TIME 50HZ .......... 0.0 EA
6461353000 ...... NAMEPLATE, XMTR EQUIPMENT ....... 1.0 EA
6461662007 ...... NAMEPLATE, HT35CD ................ 0.0 EA
6461662008 ...... NAMEPLATE, HT35FM ................ 0.0 EA
8171335200 ...... FREQ DET PARTS, FM ................ 0.0 EA
8396337261 ...... WIRING DIAG, POWER DIST ........... 0.0 EA
8396337289 ...... CABINET OUTLINE DRAWING .......... 0.0 EA
839 7822 001 ...... STENCIL, RIGHT SIDE PNL ............ 0.0 EA
8398118586 ...... WIRING DIAG, HT30/35FM INPUT ....... 0.0 EA
9171335214 ...... FIRMWARE, AI001 ................... 0.0 EA
9171335243 ...... CABLE, EXCITER & METERS ........... 0.0 EA
9171335255 ...... FIRMWARE, HT35 .................... 1.0 EA
988 2275 001 . . . . .. DP HT 30/35FM XMTR ................ 0.0 EA
9882385001 ...... DP, HT 30/35CD ...................... 0.0 EA
9901089001 ...... REC SIC AND FUSE KIT ............... 0.0 EA
992 6449 001 ...... BASIC POWER SUPPLY, UNIT3 ........ 1.0 EA
9926772002 ...... *PWB, AUX PWR SUP 240VAC ......... 0.0 EA
9926812001 ...... KIT, 4 WIRE "Y" XMTR MOD ............ 0.0 EA
992 8024 001 ...... XMTR, HT30/35FM BASIC. . . . . . . . . . . . .. 1.0 EA
992 8093 001 ...... FIL VOLT REG KIT. . . . . . . . . . . . . . . . . . .. 0.0 EA
992 8528 001 . . . . .. KIT, 4 WIRE "Y" XMTR ................ 0.0 EA
9929854006 ...... TRAY, RACK MOUNTING .............. 0.0 EA
9949019001 ...... R-BK-FM30,35K1HT-30,35 .............. 0.0 EA
9949158001 ...... REC PTS KIT HT30.35FM .............. 0.0 EA
9949410004 ...... BASIC EXCITER, DIGIT CD ............ 0.0 EA
9949425 002 ...... MODULE, ANALOG I/O ................ 0.0 EA
9949530002 ...... DGTL STEREO INTERFACE MODULE ... 0.0 EA
994 9678 001 ...... EXCITER, BASIC, SUPERCITER ........ 0.0 EA
9949685001 ...... KIT, SCREEN NEUTRALIZATION, ....... 0.0 EA
Reference Designators (Gl
USE PACKING CHECK LIST 989-0065-001
1 A02V01
3T001
ACCESSORY 1 TB09
1 M01 50HZ OPTION 1 REQD
QTY 1 REQUIRED WHEN XMTR SHIPPED WITH DIGIT EXCITER
QTY 1 REQUIRED WHEN XMTR NOT SHIPPED WITH DIGIT EXCITER
ACCESSORY FIRMWARE AI001 ACCESSORY
QTY 1 REQUIRED ONLY WHEN THE-1 EXCITER USED.
UNIT3
1 REQD WHEN AC LINE VOLTAGE IS 240 VAC (415 4 WIRE) AND
HIGHER.1A6A15
4 WIRE 360/415 VAC 50 HZ OPTION 1 REQD
UNIT 1
ACCESSORY
4 WIRE 415VAC 50HZ MAIN/ALT DUAL OPTION 1 REQ'D
1 REQD WHEN XMTR MOUNTED DIGIT OR SUPERCITER
1A001
1A001
1A001
1A001
1 REQ'D WHEN CUSTOMER REQUESTS.
Table 7-2. XMTR, HT-30, 30KW - 994 9570 001
Harris PN Description QTY UM
0000000009 ...... PACKING CHECK LIST ................ 0.0 EA
3740168000 ...... TUBE, 4CX20000D/9015 ............... 1.0 EA
4721611000 ...... XFMR, PLT, 817-1220-002 ............. 1.0 EA
6140767000 ...... INTERFACE, 25PIN, TBI"D" ............ 0.0 EA
6360037000 ...... METER, ELAPSED TIME 50HZ .......... 0.0 EA
6461353000 ...... NAMEPLATE, XMTR EQUiPMENT ....... 1.0 EA
6461662005 ...... NAMEPLATE, HT30CD ................ 0.0 EA
6461662006 ...... NAMEPLATE, HT30FM ................ 0.0 EA
8171335200 ...... FREQ DET PARTS, FM ................ 0.0 EA
839 6337 261 ...... WIRING DIAG, POWER DIST ........... 0.0 EA
8396337289 ...... CABINET OUTLINE DRAWING .......... 0.0 EA
839 7822 001 ...... STENCIL, RIGHT SIDE PNL ............ 0.0 EA
839 8118 586 ...... WIRING DlAG, HT30/35FM INPUT ....... 0.0 EA
9171335214 ...... FIRMWARE, AI001 ................... 0.0 EA
Reference Designators (G)
USE PACKING CHECK LIST 989-0064-001
1 A02V01
ACCESSORY nB09
1M01 50HZ OPTION 1 REQD
QTY 1 REQUIRED WHEN XMTR SHIPPED WITH DIGIT EXCITER
QTY 1 REQUIRED WHEN XMTR NOT SHIPPED WITH DIGIT EXCITER
ACCESSORY FIRMWARE AI001 ACCESSORY
7-2
888-2385-001
Rev.M1: 9-17-02
WARNING: Disconnect primary power prior to servicing.
