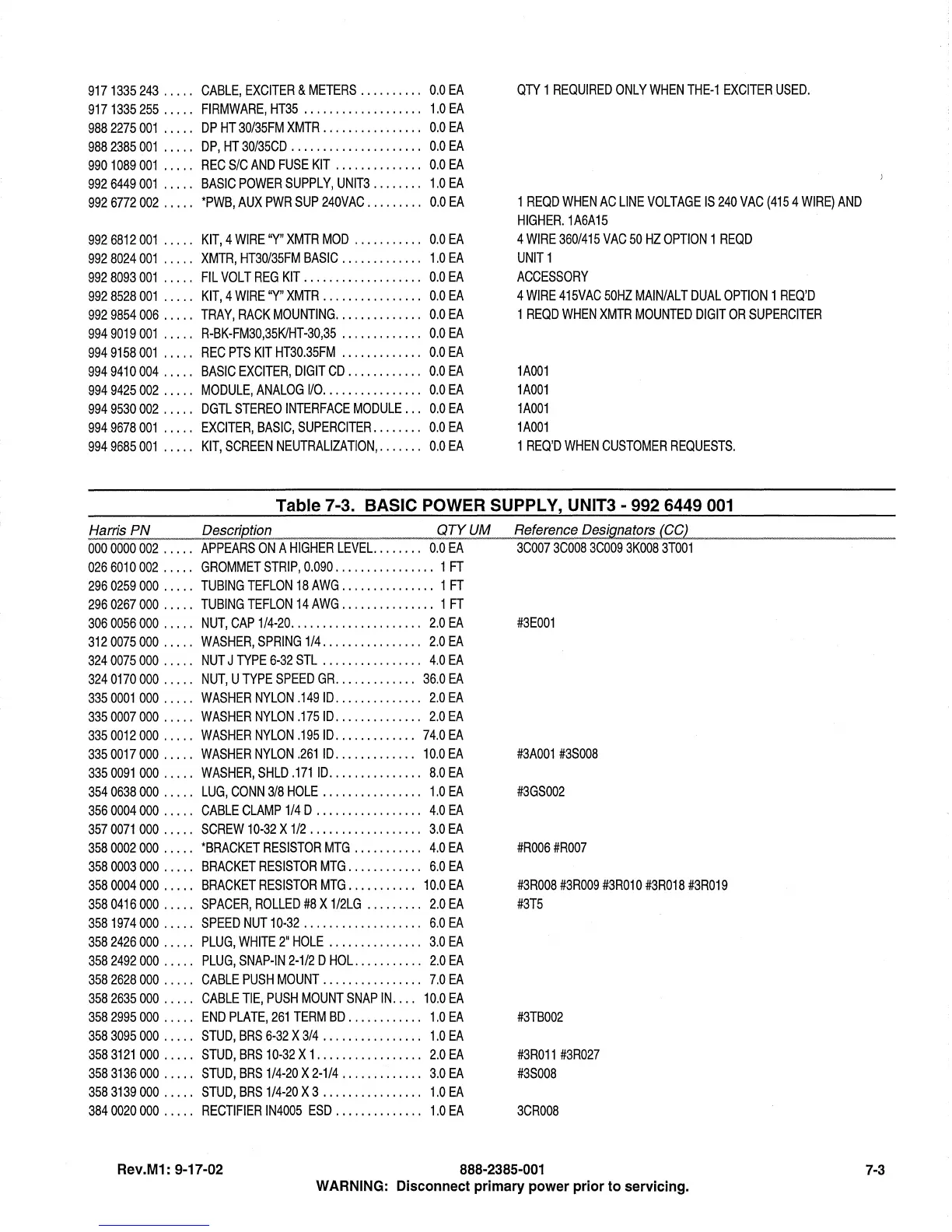

Harris HT 35CD - Page 123

9171335243 .... , CABLE, EXCITER & METERS .......... 0.0 EA
917 1335 255 .. ... FIRMWARE, HT35 .. .. .. .. .. .. .. .. ... 1.0 EA
988 2275 001 ..... DP HT 30/35FM XMTR . . . . . . . . . . . . . . .. 0.0 EA
9882385001 ..... DP, HT 30/35CD ..................... 0.0 EA
9901089001 ..... REC SIC AND FUSE KIT .............. 0.0 EA
992 6449 001 ..... BASIC POWER SUPPLY, UNIT3 . . . . . . .. 1.0 EA
9926772002 ..... 'PWB, AUX PWR SUP 240VAC ......... 0.0 EA
9926812001 ..... KIT, 4 WIRE ''Y'' XMTR MOD ........... 0.0 EA
992 8024 001 ..... XMTR, HT30/35FM BASIC. . . . . . . . . . . .. 1.0 EA
992 8093 001 ..... FIL VOLT REG KIT. . . . . . . . . . . . . . . . . .. 0.0 EA
992 8528 001 ..... KIT, 4 WIRE ''Y'' XMTR . . . . . . . . . . . . . . .. 0.0 EA
9929854006 ..... TRAY, RACK MOUNTING .............. 0.0 EA
9949019001 ..... R-BK-FM30,35K1HT-30,35 ............. 0.0 EA
9949158001 ..... REC PTS KIT HT30.35FM ............. 0.0 EA
9949410004 ..... BASIC EXCITER, DIGIT CD ............ 0.0 EA
994 9425 002 . . . .. MODULE, ANALOG 1/0. . . . . . . . . . . . . . .. 0.0 EA
9949530002 . . . .. DGTL STEREO INTERFACE MODULE. .. 0.0 EA
994 9678 001 ..... EXCITER, BASIC, SUPERCITER. . . . . . .. 0.0 EA
9949685001 ..... KIT, SCREEN NEUTRALIZATION, ....... 0.0 EA
QTY 1 REQUIRED ONLY WHEN THE-1 EXCITER USED.
1 REQD WHEN AC LINE VOLTAGE IS 240 VAC (4154 WIRE) AND
HIGHER. 1A6A15
4 WIRE 360/415 VAC 50 HZ OPTION 1 REQD
UNIT 1
ACCESSORY
4 WIRE 415VAC 50HZ MAIN/AL T DUAL OPTION 1 REQ'D
1 REQD WHEN XMTR MOUNTED DIGIT OR SUPERCITER
1AOO1
1A001
1A001
1A001
1 REQ'D WHEN CUSTOMER REQUESTS.
Table 7-3. BASIC POWER SUPPLY, UNIT3 - 992 6449 001
Harris PN Description QTY UM f/eference Designators (GG)
0000000002 ..... APPEARS ON A HIGHER LEVEL. ....... 0.0 EA 3C007 3C008 3C009 3K008 3T001
0266010002 ..... GROMMET STRIP, 0.090 ................ 1 FT
2960259000 ..... TUBING TEFLON 18 AWG ............... 1 FT
2960267000 .... , TUBING TEFLON 14 AWG ............... 1 FT
3060056000 . . . .. NUT, CAP 1/4-20. . . . . . . . . . . . . . . . . . . .. 2.0 EA #3E001
3120075000 ..... WASHER, SPRING 1/4 .. .............. 2.0 EA
3240075 000 .... , NUT J TYPE 6-32 STL . . . . . . . . . . . . . . .. 4.0 EA
3240170000 .. ... NUT, U TYPE SPEED GR.. .. .. .. .. ... 36.0 EA
3350001000 ..... WASHER NYLON .149ID .............. 2.0 EA
3350007000 ..... WASHER NYLON .175ID .............. 2.0 EA
3350012000 ..... WASHER NYLON .195ID ............. 74.0 EA
3350017000 ..... WASHER NYLON .261 ID ............. 10.0 EA #3A001 #3S008
3350091 000 ..... WASHER, SHLD .171 ID ............... 8.0 EA
354 0638 000 . . . .. LUG, CONN 3/8 HOLE . . . . . . . . . . . . . . .. 1.0 EA #3GS002
356 0004 000 . . . .. CABLE CLAMP 1/4 D . . . . . . . . . . . . . . . .. 4.0 EA
3570071 000 ..... SCREW 10-32 X 1/2 .................. 3.0 EA
358 0002 000 . . . .. 'BRACKET RESISTOR MTG . . . . . . . . . .. 4.0 EA #R006 #R007
358 0003 000 . . . .. BRACKET RESISTOR MTG . . . . . . . . . . .. 6.0 EA
358 0004 000 . . . .. BRACKET RESISTOR MTG . . . . . . . . . .. 10.0 EA #3R008 #3R009 #3R01 0 #3R018 #3R019
3580416000 ..... SPACER, ROLLED #8 X 1/2LG ......... 2.0 EA #3T5
3581974000 .... , SPEED NUT 10-32 ................... 6.0 EA
358 2426 000 .. ... PLUG, WHITE 2" HOLE .. .. .. .. .. .. ... 3.0 EA
358 2492 000 . . . .. PLUG, SNAP-IN 2-1/2 D HOL. . . . . . . . . .. 2.0 EA
3582628000 .. ... CABLE PUSH MOUNT.. .. .. .. .. .. .... 7.0 EA
3582635000 ..... CABLE TIE, PUSH MOUNT SNAP IN .... 10.0 EA
3582995000 . . . .. END PLATE, 261 TERM BD . . . . . . . . . . .. 1.0 EA #3TB002
358 3095 000 . . . .. STUD, BRS 6-32 X 3/4 . . . . . . . . . . . . . . .. 1.0 EA
3583121 000 .... , STUD, BRS 10-32 X 1 ................. 2.0 EA #3R011 #3R027
3583136000 .... , STUD, BRS 1/4-20 X 2-1/4 ............. 3.0 EA #3S008
3583139000 .... , STUD, BRS 1/4-20 X 3 .. .... .. .. .. .... 1.0 EA
384 0020 000 . . . .. RECTIFIER IN4005 ESD . . . . . . . . . . . . .. 1.0 EA 3CR008
Rev.M1: 9-17-02 888-2385-001
WARNING: Disconnect primary power prior to servicing.
7-3
