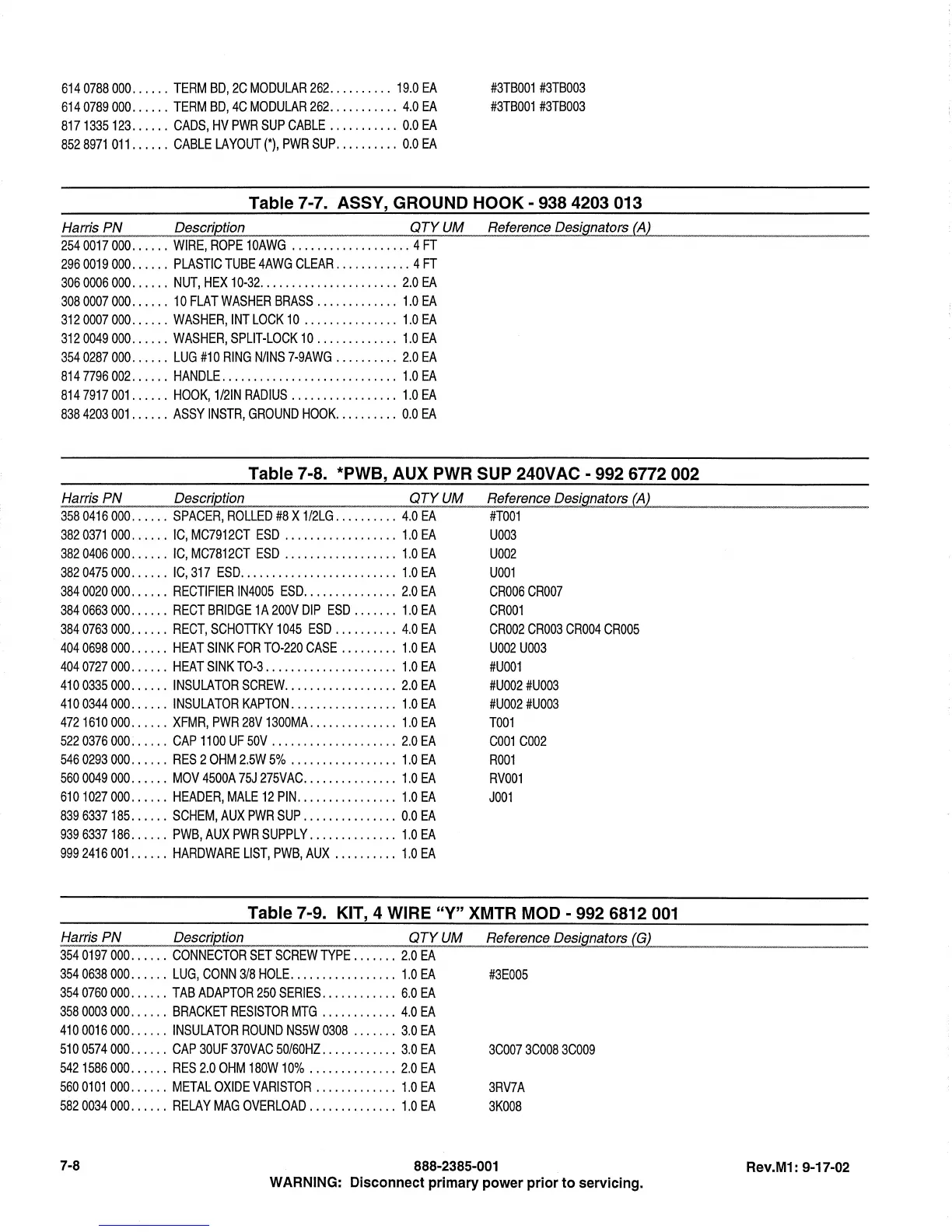

614 0788 000 ...... TERM BD, 2C MODULAR 262. . . . . . . . .. 19.0 EA
6140789000 ...... TERM BD, 4C MODULAR 262 ........... 4.0 EA
8171335123 ...... CADS, HV PWR SUP CABLE ........... 0.0 EA
8528971011 ...... CABLE LAYOUT (*), PWR SUP .......... 0.0 EA
#3TB001 #3TB003
#3TB001 #3TB003
Table 7·7. ASSY, GROUND HOOK· 938 4203 013
Harris PN DescrieJion QTY UM Reference Desig.nators CA)
2540017000 ...... WIRE, ROPE 10AWG ................... 4 FT
2960019 000 ...... PLASTIC TUBE 4AWG CLEAR ............ 4 FT
306 0006 000 ...... NUT, HEX 10-32 ...................... 2.0 EA
3080007000 ...... 10 FLAT WASHER BRASS ............. 1.0 EA
3120007000 ...... WASHER, INTLOCK 10 ............... 1.0 EA
3120049000 ...... WASHER, SPLIT-LOCK 10 ............. 1.0 EA
3540287000 ...... LUG #10 RING NlINS 7-9AWG .......... 2.0 EA
8147796002 ...... HANDLE ............................ 1.0 EA
8147917001 ...... HOOK, 1/21N RADIUS ................. 1.0 EA
8384203 001 ...... ASSY INSTR, GROUND HOOK .......... 0.0 EA
Table 7·8. *PWB, AUX PWR SUP 240VAC • 992 6772 002
Harris PN Description QTY UM
3580416000 ...... SPACER, ROLLED #8 X 1/2LG . ......... 4.0 EA
382 0371 000" " .. IC, MC7912CT ESD .. .. .. .. .. .. .. .... 1.0 EA
382 0406 000.. .... IC, MC7812CT ESD ...... .. .. .. .. .... 1.0 EA
3820475000 ...... IC,317 ESD ......................... 1.0 EA
3840020 000 ...... RECTIFIER IN4005 ESD ............... 2.0 EA
3840663 000 ...... RECT BRIDGE 1 A 200V DIP ESD .. .. ... 1.0 EA
3840763000 ...... RECT, SCHOTIKY 1045 ESD .......... 4.0 EA
4040698 000 ...... HEAT SINK FOR TO-220 CASE .. .. .. ... 1.0 EA
4040727000 ...... HEAT SINK TO-3 ..................... 1.0 EA
4100335000 ...... INSULATOR SCREW .................. 2.0 EA
4100344000 ...... INSULATOR KAPTON ................. 1.0 EA
472 1610 000 ...... XFMR, PWR 28V 1300MA. . .. . .. .. . . . .. 1.0 EA
522 0376 000. . . . . . CAP 1100 UF 50V . . . . . . . . . . . . . . . . . . .. 2.0 EA
546 0293 000.. .. . . RES 2 OHM 2.5W 5% .. .. .. .. .. .. .. ... 1.0 EA
5600049000 ...... MOV 4500A 75J 275VAC ............... 1.0 EA
6101027000 ...... HEADER, MALE 12 PIN ................ 1.0 EA
8396337185 ...... SCHEM, AUX PWR SUP ............... 0.0 EA
939 6337 186 ...... PWB, AUX PWR SUPPLY. . . . . . . . . . . . .. 1.0 EA
999 2416 001 .. .... HARDWARE LIST, PWB, AUX .... .. .... 1.0 EA
Reference Designators CA)
#T001
U003
U002
U001
CR006CR007
CR001
CR002 CR003 CR004 CR005
U002 UOO3
#U001
#U002 #U003
#U002 #U003
T001
C001 C002
R001
RV001
J001
Table 7·9. KIT, 4 WIRE "Y" XMTR MOD· 9926812001
Harris PN Description QTY UM Reference_Designators CG~
354 0197 000 ...... CONNECTOR SET SCREW TYPE ....... 2.0 EA
3540638000 ...... LUG, CONN 3/8 HOLE ................. 1.0 EA #3E005
3540760000 ...... TAB ADAPTOR 250 SERIES ............ 6.0 EA
358 0003 000 ...... BRACKET RESISTOR MTG ............ 4.0 EA
4100016000 ...... INSULATOR ROUND NS5W 0308 ....... 3.0 EA
5100574000 ...... CAP 30UF 370VAC 50/60HZ ............ 3.0 EA 3C007 3C008 3C009
5421586000 ...... RES 2.0 OHM 180W 10% .............. 2.0 EA
5600101000 ...... METAL OXIDE VARiSTOR ............. 1.0 EA 3RV7A
582 0034 000 ...... RELAY MAG OVERLOAD. . . . . . . . . . . . .. 1.0 EA 3K008
7-8
888-2385-001
WARNING: Disconnect primary power prior to servicing.
Rev.M1: 9-17-02
