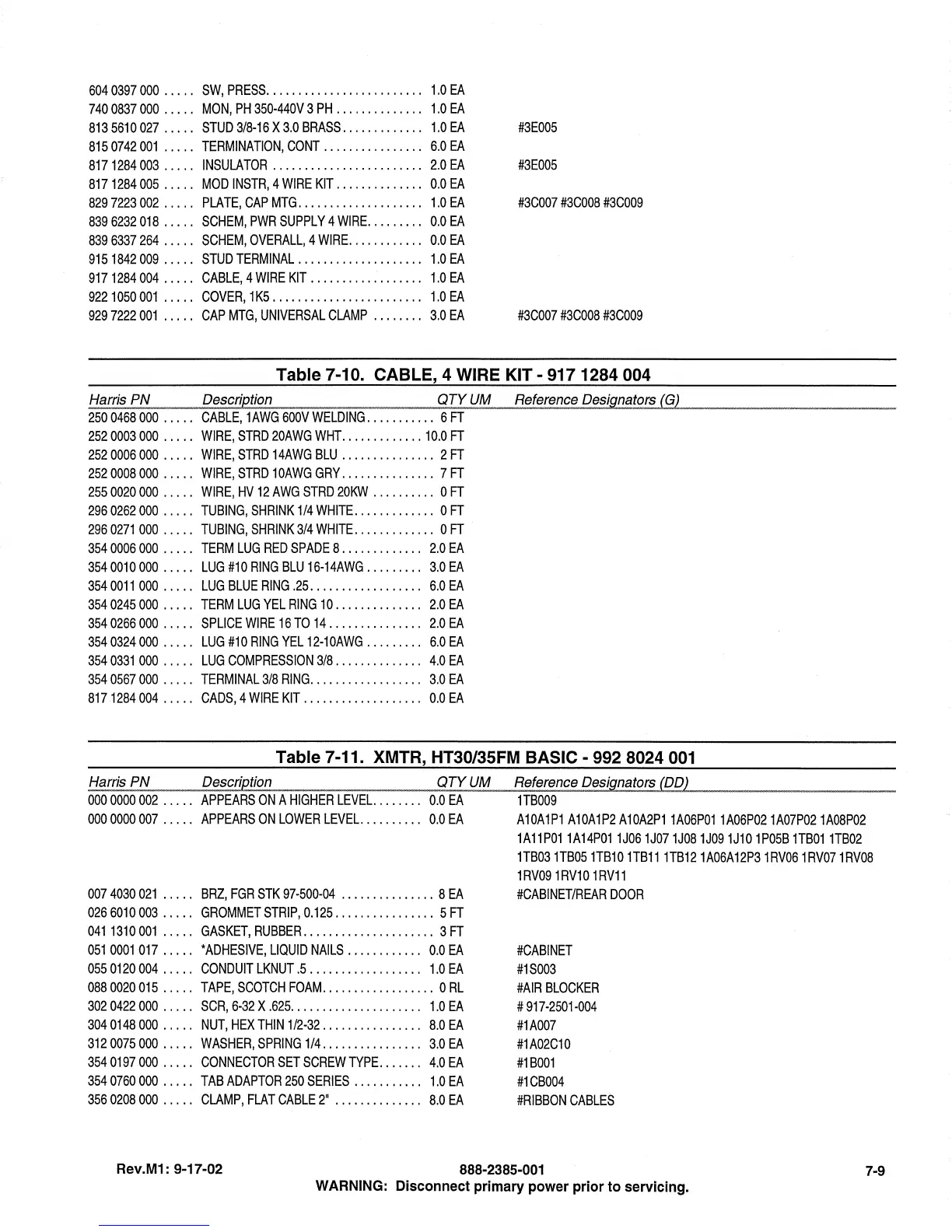

Harris HT 35CD - Page 129

604 0397 000 . . . .. SW, PRESS. . . . . . . . . . . . . . . . . . . . . . . .. 1.0 EA
740 0837 000 .... , MON, PH 350-440V 3 PH .. .. .. .. .. .... 1.0 EA
8135610027 ..... STUD 3/8-16 X 3.0 BRASS ............. 1.0 EA #3E005
8150742001 ..... TERMINATION, CONT ................ 6.0 EA
8171284003 ..... INSULATOR ........................ 2.0 EA #3E005
8171284005 ..... MOD INSTR, 4 WIRE KIT .............. 0.0 EA
8297223002 .. .. . PLATE, CAP MTG.. .. .. .. .. .. .. .. .... 1.0 EA #3C007 #3C008 #3C009
8396232018 ..... SCHEM, PWR SUPPLY 4 WIRE ......... 0.0 EA
8396337264 . . . .. SCHEM, OVERALL, 4 WIRE. . . . . . . . . . .. 0.0 EA
9151842009 ..... STUD TERMINAL .................... 1.0 EA
917 1284 004 .. ... CABLE, 4 WIRE KIT.. .. .. .. .. .. .. .... 1.0 EA
9221050001 ..... COVER, 1K5 ........................ 1.0 EA
929 7222 001 ..... CAP MTG, UNIVERSAL CLAMP ........ 3.0 EA
#3C007 #3C008 #3C009
Table 7-10. CABLE, 4 WIRE KIT - 9171284 004
Harris PN Description QTY UM Reference Designators (G2
2500468000 ..... CABLE, 1AWG 600V WELDING ........... 6 FT
2520003000 ..... WIRE, STRD 20AWG WHT ............. 10.0 FT
2520006000 ..... WIRE, STRD 14AWG BLU ............... 2 FT
2520008000 ..... WIRE, STRD 10AWG GRY ............... 7 FT
2550020000 ..... WIRE, HV 12 AWG STRD 20KW .......... 0 FT
2960262 000 . . . .. TUBING, SHRINK 1/4 WHITE. . . . . . . . . . . .. 0 FT
296 0271 000 . . . .. TUBING, SHRINK 3/4 WHITE. . . . . . . . . . . .. 0 FT
3540006000 . . . .. TERM LUG RED SPADE 8 . . . . . . . . . . . .. 2.0 EA
3540010000 ..... LUG #10 RING BLU 16-14AWG ......... 3.0 EA
354 0011 000 ... " LUG BLUE RING .25. . . . . . . . . . . . . . . . .. 6.0 EA
3540245000 ..... TERM LUG YEL RING 10 .............. 2.0 EA
3540266 000 .. ... SPLICE WIRE 16 TO 14 .. .. .. .. .. .. ... 2.0 EA
3540324000 ..... LUG #10 RING YEL 12-10AWG ......... 6.0 EA
354 0331 000 . . . .. LUG COMPRESSION 3/8 . . . . . . . . . . . . .. 4.0 EA
3540567000 . . . .. TERMINAL 3/8 RING. . . . . . . . . . . . . . . . .. 3.0 EA
8171284004 ..... CADS, 4 WIRE KIT ................... 0.0 EA
Table 7-11. XMTR, HT30/35FM BASIC - 992 8024 001
Harris PN Description QTY UM
Reference Designators (DO)
HB009
0000000002 . . . .. APPEARS ON A HIGHER LEVEL. . . . . . .. 0.0 EA
0000000007 . . . .. APPEARS ON LOWER LEVEL. . . . . . . . .. 0.0 EA
A10A1P1 A10A1P2 A10A2P11A06P011A06P021A07P021A08P02
1A11P011A14P011J061J071J081J091J10 1P05B HB011TB02
HB03HB05HB10 HB11HB121A06A12P31RV061RV071RV08
1RV091RV10 1RV11
0074030021 ..... BRZ, FGR STK 97-500-04 ............... 8 EA
0266010003 ..... GROMMETSTRIP,0.125 ................ 5FT
0411310001 ..... GASKET, RUBBER ..................... 3 FT
0510001017 ..... "ADHESIVE, LIQUID NAILS ............ 0.0 EA
0550120004 ..... CONDUIT LKNUT.5 .................. 1.0 EA
0880020015 ..... TAPE, SCOTCH FOAM .................. 0 RL
302 0422 000 . . . .. SCR, 6-32 X .625. . . . . . . . . . . . . . . . . . . .. 1.0 EA
3040148000 ..... NUT, HEX THIN 1/2-32 ................ 8.0 EA
3120075000 . . . .. WASHER, SPRING 1/4. . . . . . . . . . . . . . .. 3.0 EA
3540197000 . . . .. CONNECTOR SET SCREW TYPE. . . . . .. 4.0 EA
3540760000 ..... TAB ADAPTOR 250 SERIES.. .. .. .. ... 1.0 EA
3560208000 .. ... CLAMP, FLAT CABLE 2" .............. 8.0 EA
#CABINET/REAR DOOR
#CABINET
#1S003
#AIR BLOCKER
# 917-2501-004
#1 A007
#1 A02C10
#1 B001
#1CB004
#RIBBON CABLES
Rev.M1: 9-17-02
888-2385-001
