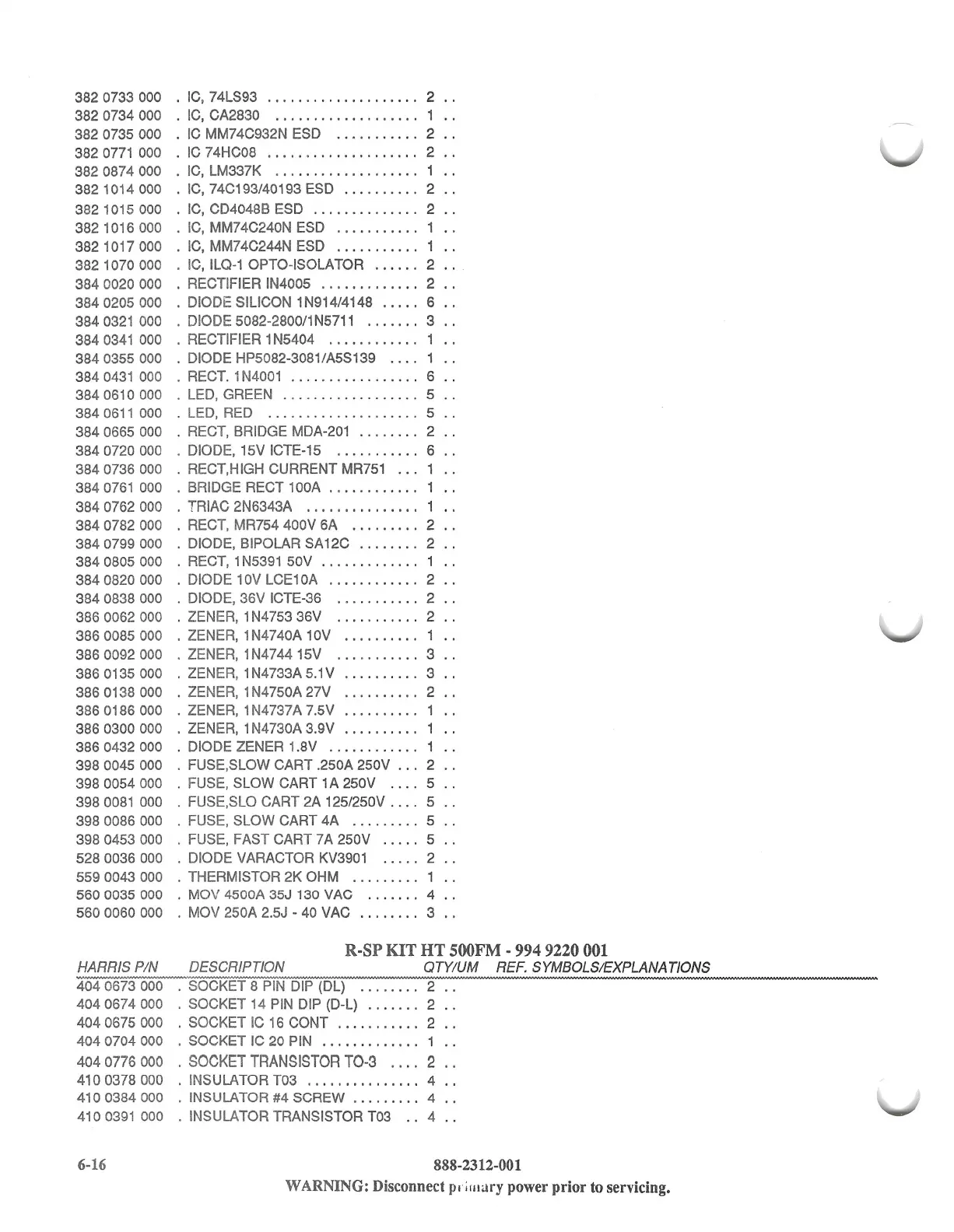

382 0733 000 . IC, 74LS93 ... .. .. ....... . ..... 2 ..
382 0734 000 . IC, CA2830 . . . . . . . . . . . . . . . . . . . 1 ..
382 0735 000 . IC MM74C932N ESD . . ... ...... 2 ..
382 0771 000 . IC 74HC08 .. .......... .. .... .. 2 ..
382 0874 000 . IC, LM337K . .. .. ... .. .. .. . . . . . 1 . .
3
82 1014 000 . IC, 74C193/40193 ESD . .. . .. . ... 2 ..
382 1015 000 . IC, CD40488 ESD .. . .. ........ . 2 ..
382 1016 000 . IC, MM74C240N ESD ........... 1 ..
382 1017 000 . IC, MM74C244N ESD ........ ... 1 ..
382 1070 000 . IC, ILO-1 OPTO-ISOLATOR .. . ... 2 . . .
384 0020 000 . RECTIFIER IN4005 . . . . . . . . . . . . . 2 . .
384 0205 000 . DIODE SILICON 1N914/4148 .
.. .. 6 . .
384
0321 000 . DIODE 5082-2800/1N5711 .. .. . .. 3 ..
384 0341 000 . RECTIFIER 1 N5404 . . . . . . . . . . . . 1 ..
384 0355 000 . DIODE HP5082-3081 /A5S139 .... 1 ..
384 0431 000 . RECT. 1 N 4001 . . . . . . . . . . . . . . . . . 6 ..
384 0610 000 . LED, GREEN ........... . .. .... 5 ..
384 0611 000 . LED, RED . . . . .. .. . . ..... . . ... 5 ..
384 0665 000 . RECT, BRIDGE MDA- 201 . . . . . . . . 2 ..
384 0720 000 . DIODE, 15V ICTE-15 ....... .... 6 ..
384 0736 000 . RECT,HIGH CURRENT MR751 ... 1 . .
384
0761 000 . BRIDGE RECT 100A .. .. . .. .. .. . 1 ..
384 0762 000 . TRIAC 2N6343A . . . . . . . . . . . . . . . 1 . .
384 0782 000 . RECT, MR754 400V 6A .
.. . . . . .. 2 ..
384 0799 000 . DIODE, BIPOLAR SA1 2C . ...... . 2 ..
384 0805 000 . RECT, 1 N5391 50V . . . . . . . . . . . . . 1 . .
384 0820 000 . DIODE 10V LCE10A
.. ...... .. .. 2 ..
384 0838 000 . DIODE, 36V ICTE-36 . . . . . . . . . . . 2 ..
386 0062 000 . ZENER, 1 N4753 36V .. . . . .. . ... 2 ..
386 0085 000 . ZENER, 1N4740A 10V ... . . . . ... 1 ..
386 0092 000 . ZENER, 1N474415V . .. .... .... 3 ..
386 0135 000 . ZENER, 1N4733A5.1V .. ... . .... 3 . .
386 0138 000 . ZEN
ER, 1 N4750A 27V .. . ...... . 2 ..
386 0186 000 . ZENER, 1N4737A 7.5V ... .. . .... 1 ..
386 0300 000 . ZENER, 1 N4730A 3.9V . .. ....... 1 ..
386 0432 000 . DIODE ZENER 1.8V . . . . . . . . . . . . 1 . .
398 0045 000 . FUSE,SLOW CART .250A 250V . . . 2
..
398 0054 000 . FUSE, SLOW CART 1 A 250V . . . . 5 ..
398 0081 000 . FUSE,SLO CART 2A 1251250V . . . . 5 . .
398 0086 000 . FUSE, SLOW CART 4A . . . . . . . . . 5
..
398 0453 000 . FUSE, FAST CART 7A 250V .. . . . 5 ..
528 0036 000 . DIODE VARACTOR KV3901 .. . . . 2 . .
559 0043 000 . THERMISTOR 2K OHM . . . . . . . . . 1
..
560 0035 000 . MOV 4500A 35J 130 VAC . . . . . . . 4 ..
560 0060 000 . MOV 250A 2. 5J - 40 VAC . . . . . . . . 3 ..
R-SP KIT HT S OO FM - 99 4 9220 001
HARRIS PIN DESCRIPTION QT Y/UM REF. SYMBOLS/EXPLANATIONS
404 0673 000 . SOCKET 8 PIN DIP (DL) . . . . . . . . 2 ..
404 0674 000 . SOCKET 14 PIN DIP (D-L) . ... . . . 2 . .
404 0675 000 . SOCKET IC 16 CONT . . . . . . . . . . . 2
..
404 0704 000 . SOCKET IC 20 PIN . . . . . . . . . . . . . 1 ..
404 0776 ooo . SOCKET TRANSISTOR TO-3 . . . . 2 ..
410 0378 000 . INSULATOR T03 ...... .. . ...... 4 ..
410 0384 000 . INSULATOR #4 SCREW . .. ..... . 4 . .
410 0391 000 . INSULATOR TRANSISTOR T 03 . . 4 . .
6-16
888-2312-001
WARNING: Disconnect pi i1 11a ry po we r prior to servicing.
