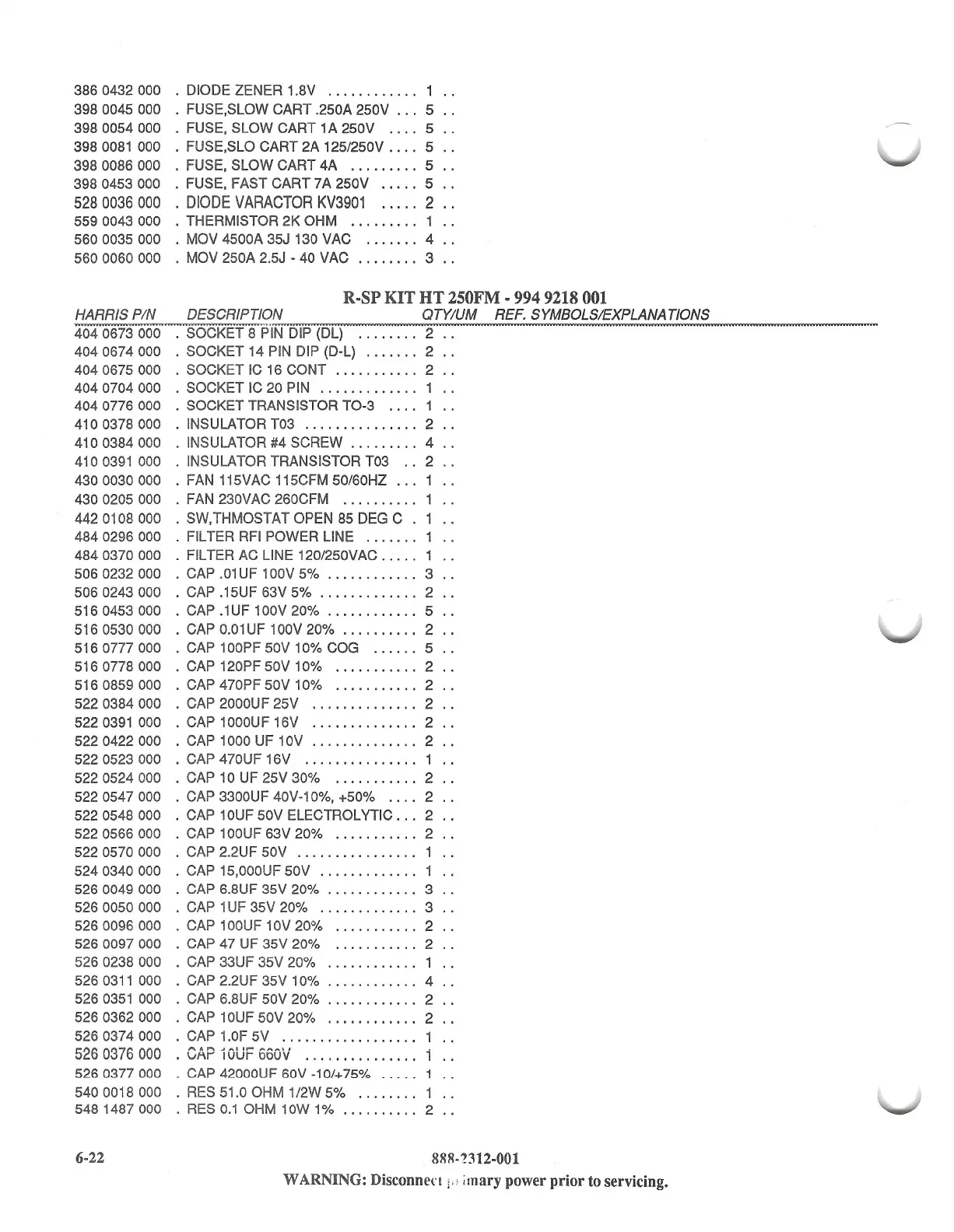

386 0432 000 . DIODE ZENER 1.8V . . . . . . . . . . . . 1
..
398 0045 000 . FUSE,SLOW CART .250A 250V . . . 5
..
398 0054 000 . FUSE, SLOW CART 1 A 250V . . . . 5
398 0081 000 . FUSE,SLO CART 2A 125/250V
....
5
..
398 0086 000 . FUSE, SLOW CART 4A . . . . . . . . . 5
..
398 0453 000 . FUSE, FAST CART 7A 250V
.....
5
..
528
0036
000
.
DIODE
VARACTOR
KV3901
.
....
2
..
559 0043 000 . THERMISTOR 2K OHM . . . . . . . . . 1
..
560 0035 000 . MOV 4500A 35J 130 VAC . . . . . . . 4
..
560 0060 000 . MOV 250A 2.
5J
- 40 VAC
........
3
..
R-SP
KIT
HT
250FM
-
994
9218
001
HARRIS PIN DESCRIPTION QTY/UM
REF.
SYMBOLSIEXPLANA
T/ONS
404 0673 000 . SOCKET 8
P.IN
DIP {DL)
....
.
...
2
..
404 0674 000 . SOCKET 14 PIN DIP {D-L)
.. ..
.
..
2
..
404 0675 000 . SOCKET IC 16 CONT . . . . . . . . . . . 2
..
404 0704 000 . SOCKET IC 20 PIN . . . . . . . . . . . . . 1
..
404 0776 000 . SOCKET TRANSISTOR TO
-3
....
1
..
41
0 0378 000 . INSULATOR T03 . . . . . . . . . . . . . . . 2
..
410 0384 000 . INSULATOR #4 SCREW
.....
....
4
..
410
0391
000 . INSULATOR TRANSISTOR T03
..
2
..
430 0030 000 . FAN 115VAC 115CFM 50/60HZ
...
1
..
430 0205 000 . FAN 230VAC 260CFM
..........
1
..
442 0108 000 . SW,THMOSTAT OPEN 85 DEG C . 1
..
484 0296 000 . FILTER RFI POWER LINE . . . . . . . 1
..
484 0370 000 . FILTER AC LINE 120/250VAC
.....
1 . .
506 0232 000 . CAP
.01
UF 1 00V 5% . . . . . . . . . . . . 3 . .
506 0243 000 . CAP .15UF 63V 5%
.............
2
..
516 0453 000 . CAP .1UF 100V 20%
............
5
..
516 0530 000 . CAP 0.01UF 100V 20%
..........
2
..
516 0777 000 . CAP 100PF 50V 10% COG
..
....
5
..
516 0778 000 . CAP 120PF 50V 10%
...........
2
..
516 0859 000 . CAP 470PF 50V 10%
........
..
. 2
..
522 0384 000 . CAP 2000UF 25V
..............
2
..
522
0391
000 . CAP 1 000UF 16V . . . . . . . . . . . . . . 2
..
522 0422 000 . CAP 1000 UF 10V
.......
.......
2
..
522 0523 000 . CAP 470UF 16V . . . . . . . . . . . . . . . 1
..
522 0524 000 . CAP 1 0 UF 25V 30%
.....
......
2
..
522 0547 000 . CAP 3300UF 40V-10%, +50%
....
2
..
522 0548 000 . CAP 1 0UF 50V ELECTROLYTIC . . . 2
..
522 0566 000 . CAP 1 00UF 63V 20%
...........
2
..
522 0570 000 . CAP 2.2UF 50V . . . . . . . . . . . . . . . . 1
..
524 0340 000 . CAP 15,000UF 50V . . . . . . . . . . . . . 1 . .
526 0049 000 . CAP 6.8UF 35V 20% . . . . . . . . . . . . 3 . .
526 0050 000 . CAP 1 UF 35V 20%
.. ..
.
.....
...
3
..
526 0096 000 . CAP 1 00UF 1 0V 20% . . . . . . . . . . . 2
..
526 0097 000 . CAP 47 UF 35V 20%
...........
2
..
526 0238 000 . CAP 33UF 35V 20% . . . . . . . . . . . . 1
..
526
0311
000 . CAP 2.2UF 35V 10%
............
4
..
526
0351
000 . CAP 6.8UF 50V 20%
.........
..
. 2
..
526 0362 000 . CAP 1 0UF 50V 20% . . . . . . . . . . . . 2
..
526 0374 000 . CAP 1.0F 5V
.......
.
...
.......
1
..
526
0376
000
.
CAP
1
0UF
660V
.. .. .. .. .. ..
..
. i
..
526
0377
000 _
CAP
42000UF
60V
-10/+75
¾
__
___
1
__
540 0018 000 . RES 51.0 OHM 1/2W 5%
........
1
..
548 1487 000 . RES
0.1
OHM 10W 1%
..........
2
..
6-22
8RR-
?312-001
WARNING: Disconneu i;) imary power
prior
to servicing.
