RF-5800H 125-WATT COMMUNICATION SYSTEM
INSTALLATION
2-15/2-16
5800H-125VEH10
TIGHTEN
WING NUT
2
TIGHTEN
WING NUTS
(2 PLACES)
1

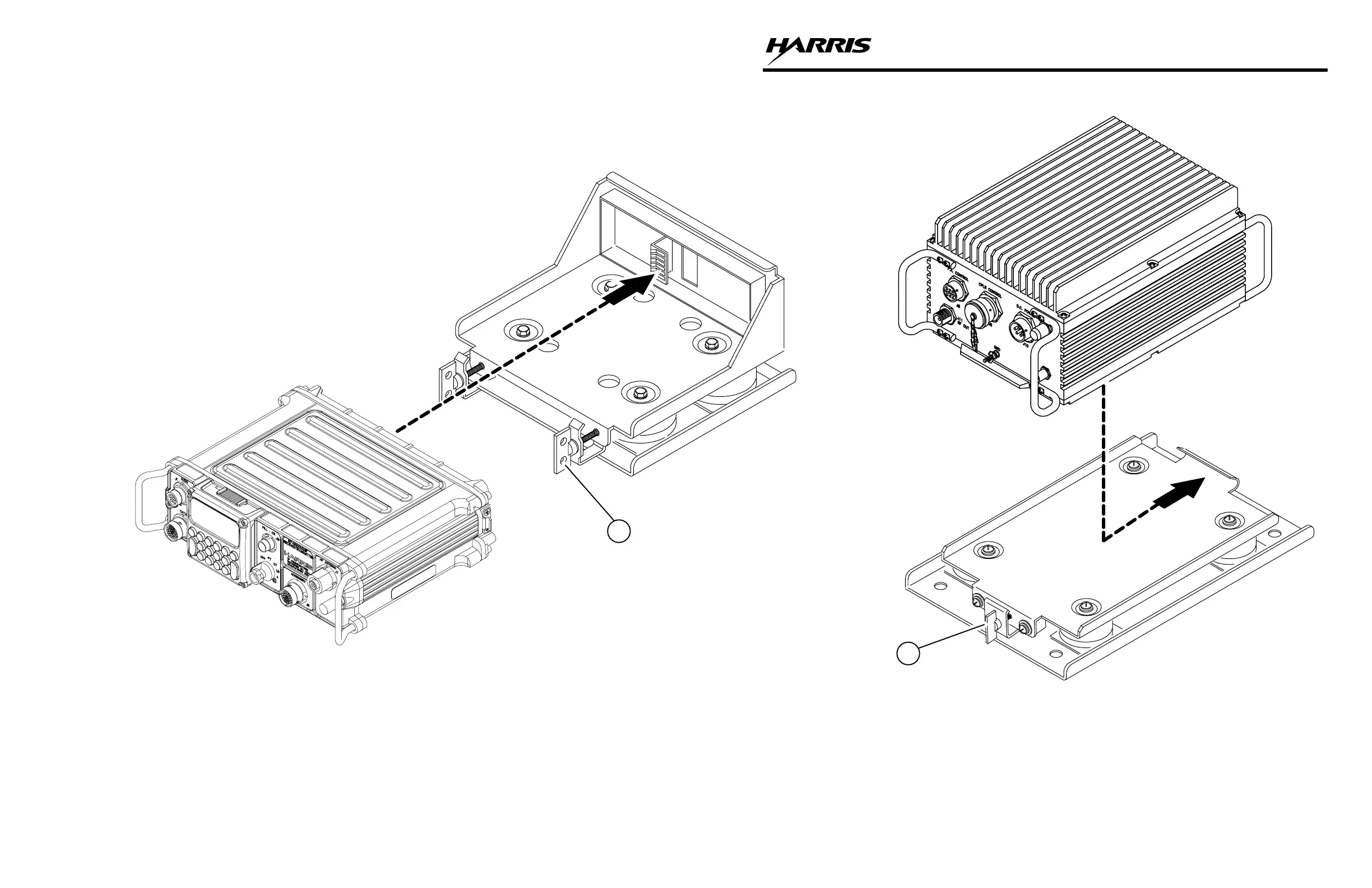

Figure 2-7. RF-5800H 125-Watt
Vehicular System
Installation Typical
Configuration
