27 – English

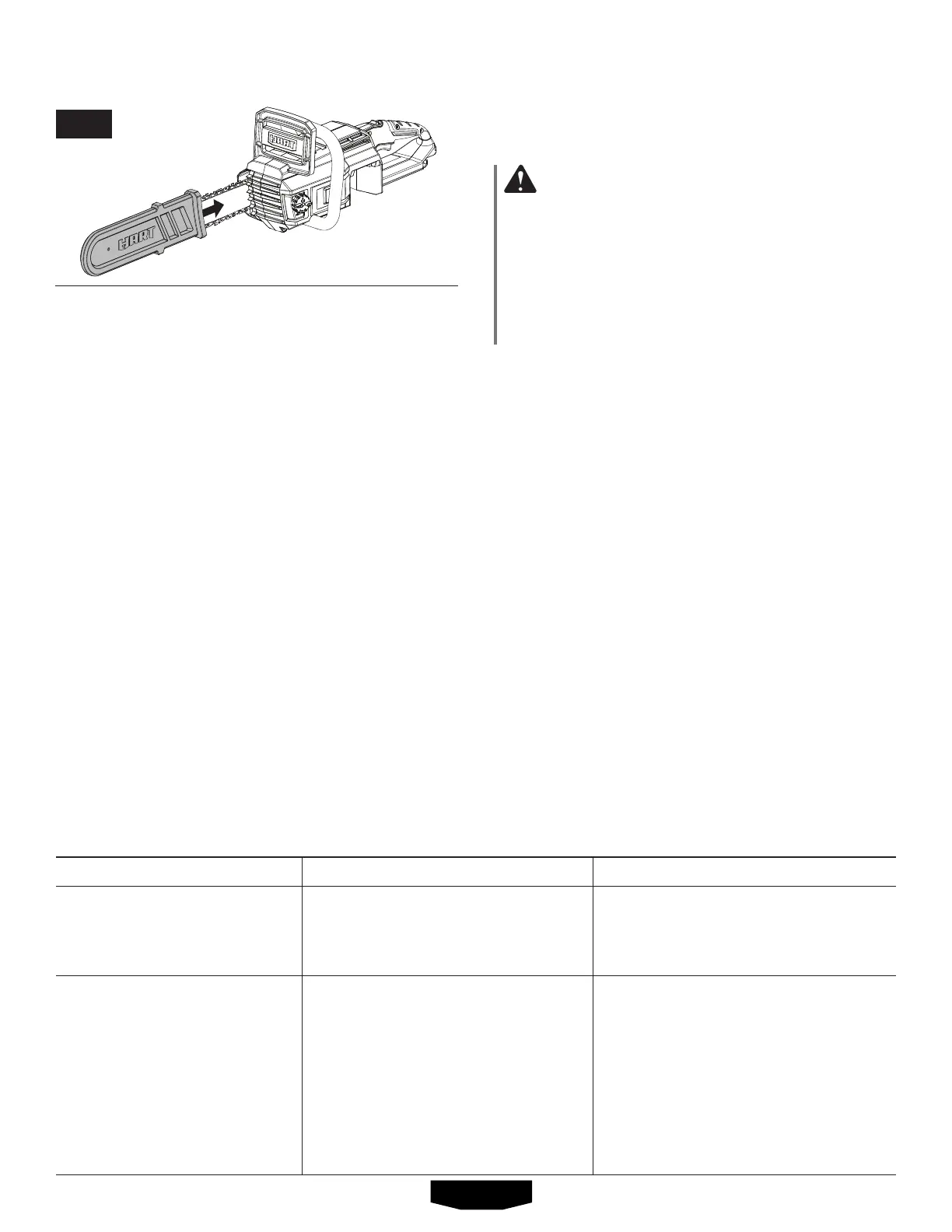

FIG. 43
BAR AND CHAIN COMBINATIONS
Chain specifications: 14 in. saw chain, 3/8in.pitch,.050in.chaingauge.
Length of Bar Guide Bar Part Number Chain Part Number Drive Links
14in. 314675003 682006004 52
Each week of use:
Reversetheguidebaronthesawtodistribute
the wear.
Lubricate the socket at the end of the guide bar
using a grease syringe in the lubricating hole.
Turn the guide bar and check that the lubri-
cationholes and chaingroove arefree from
impurities.
A bar with any of the following faults should
be replaced immediately:
Wearinsidethebarrailsthatpermitsthechain
tolayoversideways
Bent guide bar
Cracked or broken rails
Spreadrails
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Bar and chain running hot
and smoking.
1. Checkchaintensionforover
tight condition.
2. Chainoiltankempty.
1. Tension chain. Refer to Chain
Tension earlier in this manual.
2. Check oil tank.
Motor runs, but chain is not
rotating.
1. Chain tension too tight.
2. Check guide bar and chain
assembly.
3. Check guide bar and chain
for damage.
1. Retension chain, Refer to
Chain Tension earlier in this
manual.
2. Refer to Assembling the
Bar and Chain earlier in this
manual.
3. Inspectguidebarandchainfor
damage.
TRANSPORTING AND STORING
See Figure 43.
WARNING:
Alwaysremovethebatterypackbeforetrans-
porting or storing chain saw. Place battery
packindoorsinadry,securelocationoutof
the reach of children when storing. Failure to
follow these instructions may lead to acciden-
talstartingorunauthorizeduseandresultin
seriouspersonalinjury.
Donotstoreortransportthechainsawwhen
it is running. The chain saw should always be
idlebeforestoringortransporting.
Alwaysplacetheguidebarscabbardonthe
bar and chain before storing or transporting
thechainsaw.Usecautiontoavoidthesharp
teeth of the chain.
Clean the chain saw thoroughly before storing.
Storethechainsawindoors,inadryplacethat
islockedand/orinaccessibletochildren.
Keepaway from corrosive agentssuch as
garden chemicals and de-icing salts.
