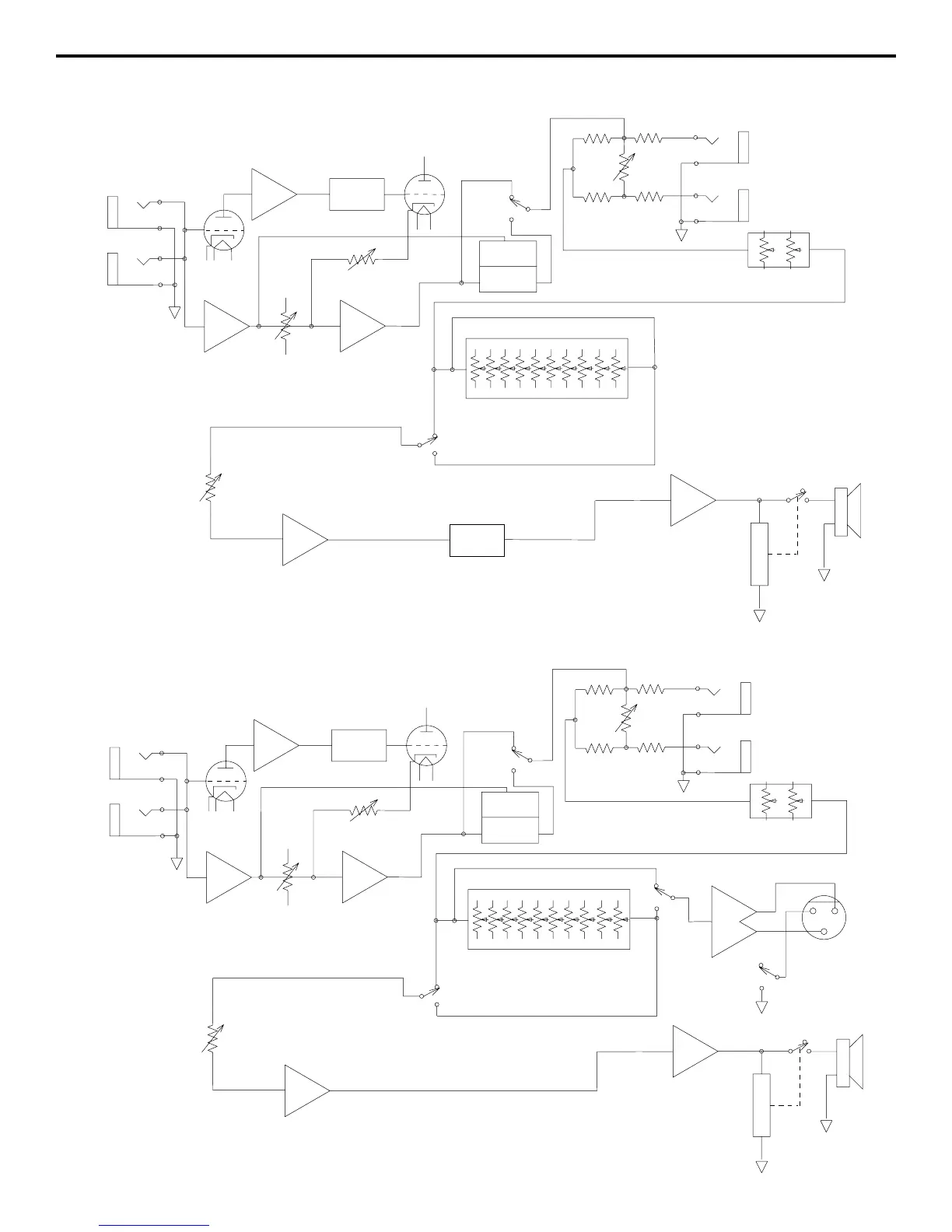

Appendix B: Block Diagram
10 BAND EQ
FIXED EQ
VR SOLID
STATE
MIXER
SEND
50 mV, IN
0 dB TO +4dB
RETURN
2 BAND
CONTOUR
AMP
PROTECTION
MASTER SECTION
10 BAND OUT
10 BAND IN
VR TUBE
RMS
DETECTOR
COMPRESS
VCA
COMPRESSOR
IN/OUT SWITCH
HPF
1
2
3
10 BAND EQ
FIXED EQ
VR SOLID
STATE
MIXER
SEND
50 mV, IN
0 dB TO +4dB
RETURN
2 BAND
CONTOUR
PRE
POST
AMP
PROTECTION
GND. LIFT/ NORMAL
50 mV, IN
-20 dB TO -30 dB
MASTER SECTION
10 BAND OUT
10 BAND IN
VR TUBE
RMS
DETECTOR
COMPRESS
VCA
COMPRESSOR
IN/OUT SWITCH
Model 2000
Model 3500
