Camera body 503CW
Disassembly
October 1996Revision 0
3:3
Focusing screen frame (22812)
Remove the two remaining screws (820015) holding the
focusing screen frame to the right hand wall and lift the
frame off.
Right hand wall (21095-1)
Remove (or cut) the foam plastic pad (22582) to get
access to the three screws (820014). Remove the right
hand wall.
Mechanism plate (21125-1)
Remove the damping ring (22287) by first removing
screw (822605) and washer (810836). Put the screw
(822605) back, to keep the spring (30384) in place.
Remove the screw (821631), washer (810532) and gear
wheel (13112). Beneath the gear wheel remove washer
(810826). Remove the mirror spring (814827).

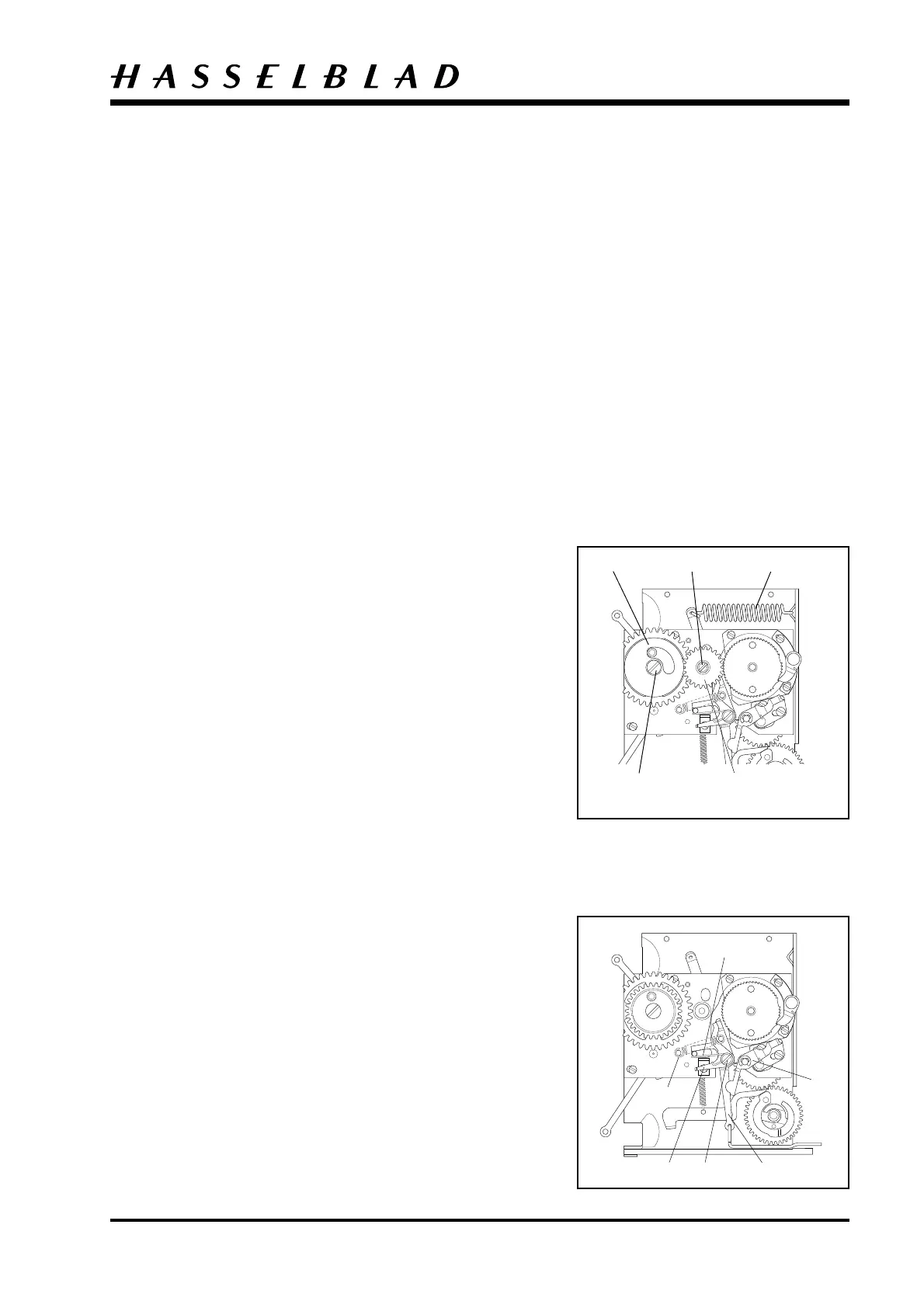

Fig. 6.
Remove the mirror actuating lever (13362) from the
rear of the right hand side wall together with the lens
lock (13280).
Remove the following parts shown in Fig. 7.
1. Spring (814826)
2. Screw (821032)
3. Spring (816914)
4. S-arm (21167) and hub (840701)
5. Release arm (13357) including push rod (22369)
6. Stop lever (22769), clip (817119) and spring
(816752)
Remove the remaining six screws, the stop angle
(13432) and adjustable pawl (13170).
Separate the mechanism plate from the right hand wall.
Fig. 7
3
6
1
4
2
5
Fig. 6
13112
822605
22287
821631
814827
