DIS10.EPS
Camera body 503CW
Reassembly
May 2000Revision 1
4:1
The lubricants mentioned in the text are:
Grease = Isoflex Topas L32
Oil = Isoflex PDP 48

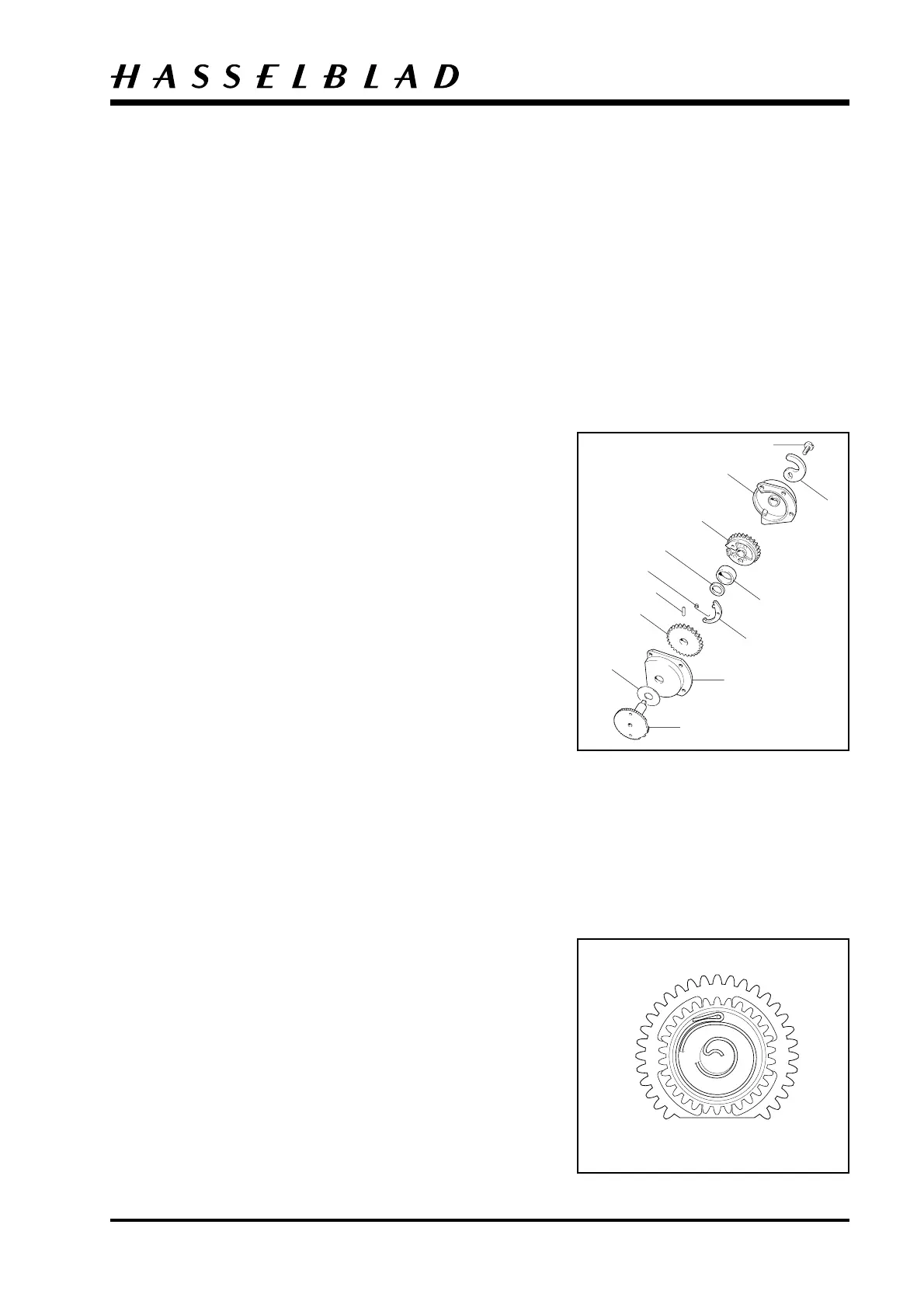

Gear housing (30324)
Lubricate carefully the washer (810840) with
oil. Lubricate with grease and fit (incl. the above
mentioned washer) the ratchet wheel (20924) into the
front section of the gear housing (30304).
Lubricate with grease and fit the gear wheel (13169).
Note. The correct relationship between the two gears
before inserting the locking pin (812106) into the shaft.
Fit the locking ring (810938) and the activating hook
(20919), lubricate carefully with oil. Fit the spring
(816504) and the washer (810826).
Place the stop gear (13509) into the rear section of the
gear housing (13157).
Lubricate the shaft of the ratchet wheel (20924) and
put the front and rear section together.
Fit the mirror cam (22355) and secure with the screw
(821033).
Note! The position of the mirror cam (22355) relative
to ratchet wheel (20924).
Fig.11.
Mechanism plate (21125-1)
Ensure the auxiliary shutter release connecting rod
coupling and the control gear wheel move freely (i.e.
with no friction). Lubricate lightly with oil. Lubricate
the gear wheel’s cam with grease.
If it is necessary to replace the coil spring (30384) fit it
into the spring mounting on gear wheel (22699) as
shown in fig.12. Use a new spring, contained in its
plastic ring. Lubricate with grease.
20924
30304
810938
20919
812106
13169
816504
810826
13509
13157
22355
821033
Fig. 12
Fig. 11
810840
