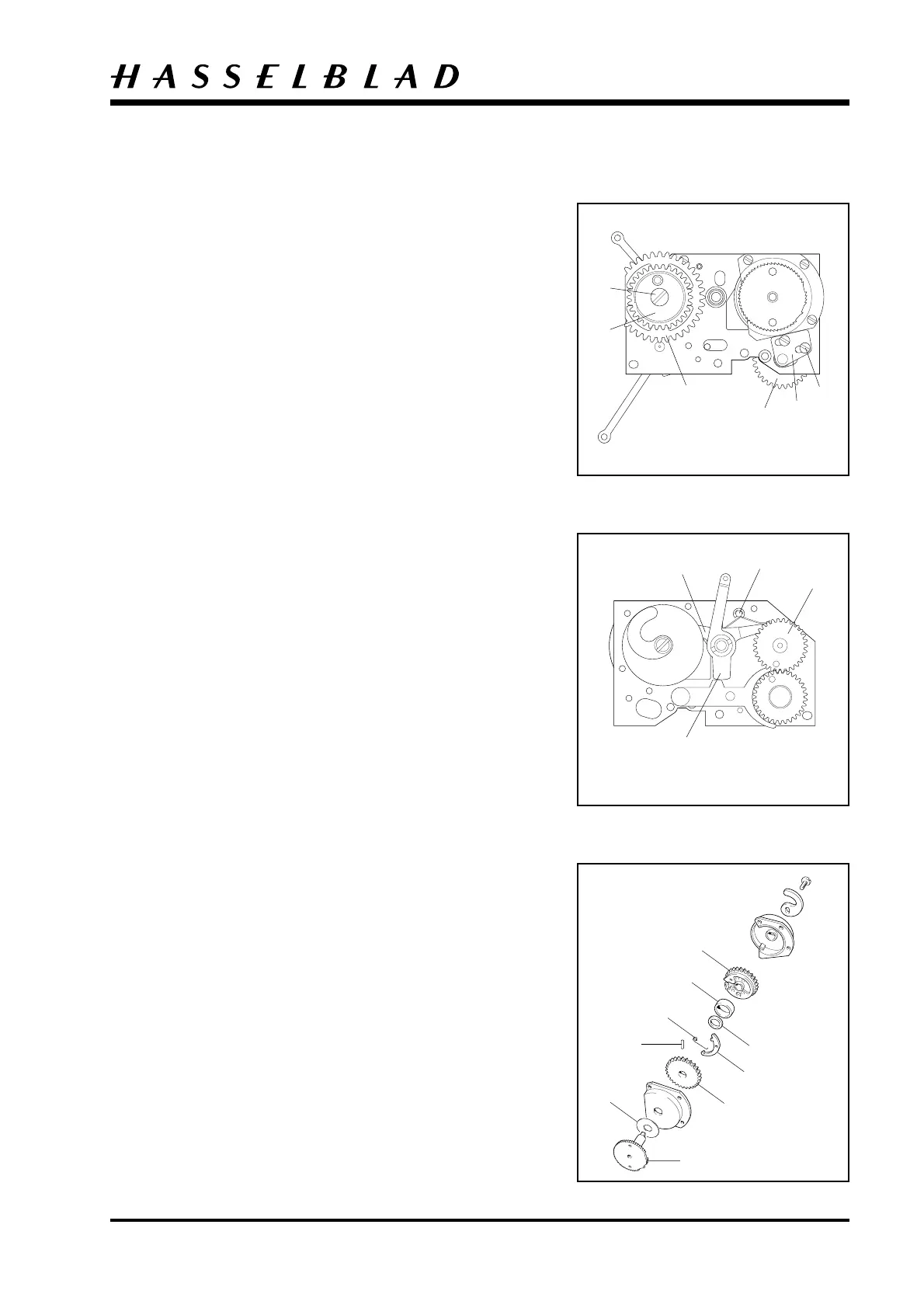

Camera body 503CW
Disassembly
3:4
May 2000
Revision 1
Remove the lower (13101) and the upper (13100)
connecting rods and dismantle the remaining parts on
the mechanism in the following order.
Fig. 8.
1. Screws (820016) 2 pcs
2. Bearing bracket (13171) and nut (13116)
3. Gear wheel (13167)
4. Screw (822605)
5. Lid (14280)
6. Gear (22699)
Note!
When removing the gear (22699) care should be taken
to ensure that the spring (30384) does not become
displaced.
Reverse side.
Fig. 9.
10. Gear (13182)
11. Auxiliary shutter stop (22436)
12. Clip (817112) washer (810404) spring (816802)
13. Shutter bar (20912) (Note. The gear housing must
be rotated)
Gear housing (30324)
Remove the gear housing from the mechanism plate and
remove the screw (821033) and the cam (22355).
Separate the front and rear section of the gear housing
and disassemble as follows.
Fig. 10.
1. Disconnect spring (816504)
2. Remove activating hook (20919)
3. Locking ring (810938)
4. Washer (810826)
5. Locking pin (812106)
6. Gear wheel (13169)
7. Ratchet wheel (20924)
8. Washer (810840)
9. Gear wheel (13509)
Fig. 8
Fig. 9
Fig. 10
12
13
6
3
5
2
1
4
10
11
3
4
1
2
6
5
7
9
8
