Camera body 503CW
October 1996Revision 0
6:3
Auxillary shutter & Mirror
Exchanging the mirror (22775)
Release the camera.
Inside the mirror box, remove the clip "A" and
disengage the arm (22781) from the mirror frame.
Remove the washer (810649) located behind the arm
and the frame.
Remove the sleeve (22800).

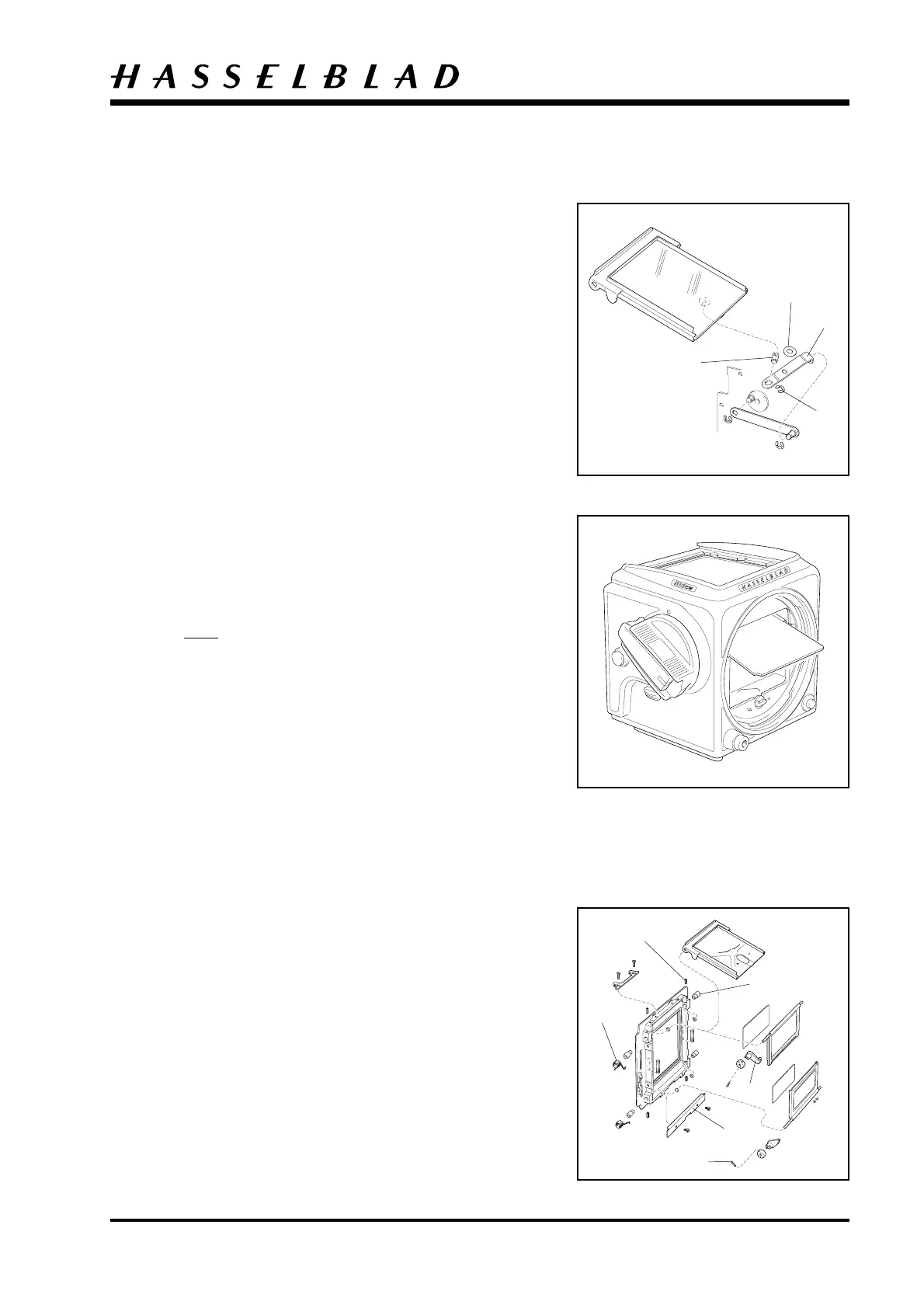

Fig. 58.
Carefully wind on until the mirror is visible in the front
plate cut-away.
Remove the mirror (22775) and the light trap (22776)
which is placed underneath the mirror.
Fig. 59.
After a new mirror has been mounted in to the frame
check for ease of operation.
Mount a new sleeve (22800) with the counter sunk side
facing out.
Note! If the spring (22804) has to be replaced, the new
one should be glued in the mirror frame with
Loctite 480.
Exchanging the auxiliary shutter
Note! For convenience use the aux. shutter jig V-5423
when removing/mounting the pins (811108).
Remove the two pins (811108), spring retainer, spring
(816805) and lever 13185.
Remove the safety lacquer and loosen the locking screws
(825661). Remove the hubs (840514).
The upper shutter flap and mirror frame can now be
removed. Ensure that all adjustment washers on the
shaft are retained. The lower shutter flap is dismantled
in a similar manner. The light trap 13125 is held in
place by two screws (821203).
Fig. 60.
Fig. 58
Fig. 59
Fig. 60
816805
811108
13125
13185
840514
825661
"A"
22800
22781
810649
